Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P4MR47KLCINDUCTOR FIXED 0.47UH SMD |
830 | - |
|
Datasheet | PCC-M1040ML | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 470 nH | ±20% | 31.1 A | 47.3A | Shielded | 1.68mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P8MR33JFAINDUCTOR FIXED 0.33UH SMD |
410 | - |
|
Datasheet | PCC-M1280MF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 330 nH | ±20% | 53.5 A | 84.5A | Shielded | 0.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.496" W (13.20mm x 12.60mm) | 0.315" (8.00mm) |
|
ELJ-RF24NJFBFIXED IND 24NH 200MA 1 OHM SMD |
3,752 | - |
|
Datasheet | RF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Non-Magnetic | 24 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.9GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-RE1N8ZFAFIXED IND 1.8NH 500MA 80MOHM SMD |
4,084 | - |
|
Datasheet | RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.2nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|

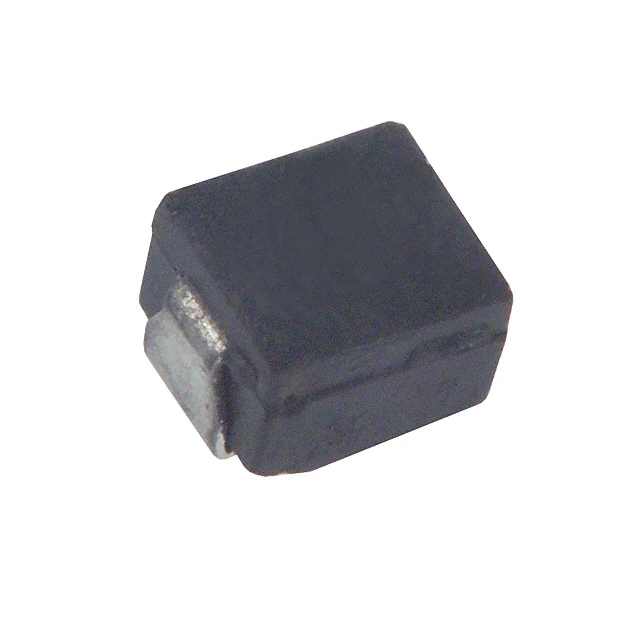

ELJ-FC180KFFIXED IND 18UH 65MA 5.4 OHM SMD |
2,000 | - |
|
Datasheet | FC | 1008 (2520 Metric) | Bulk | Obsolete | Wirewound | - | 18 µH | ±10% | 65 mA | - | Unshielded | 5.4Ohm Max | 25 @ 2.52MHz | 25MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-RF1N2DFBFIXED IND 1.2NH 400MA 60MOHM SMD |
3,805 | - |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 400 mA | - | Unshielded | 60mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-FCR39MFFIXED IND 390NH 160MA 950MOHM SM |
2,000 | - |
|
Datasheet | FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±20% | 160 mA | - | Unshielded | 950mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-QF18NJFFIXED IND 18NH 240MA 700MOHM SMD |
10,000 | - |
|
Datasheet | QF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 10 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF68NJFBFIXED IND 68NH 120MA 4 OHM SMD |
24,359 | - |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 68 nH | ±5% | 120 mA | - | Unshielded | 4Ohm Max | 8 @ 100MHz | 1.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-PF4N7DFFIXED IND 4.7NH 1.3A 100MOHM SMD |
9,380 | - |
|
Datasheet | PF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.3nH | 1.3 A | - | Unshielded | 100mOhm Max | 7 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
