Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-5GM470MFIXED IND 47UH 390MA 930MOHM SMD |
4,771 | - |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 390 mA | - | Shielded | 930mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|

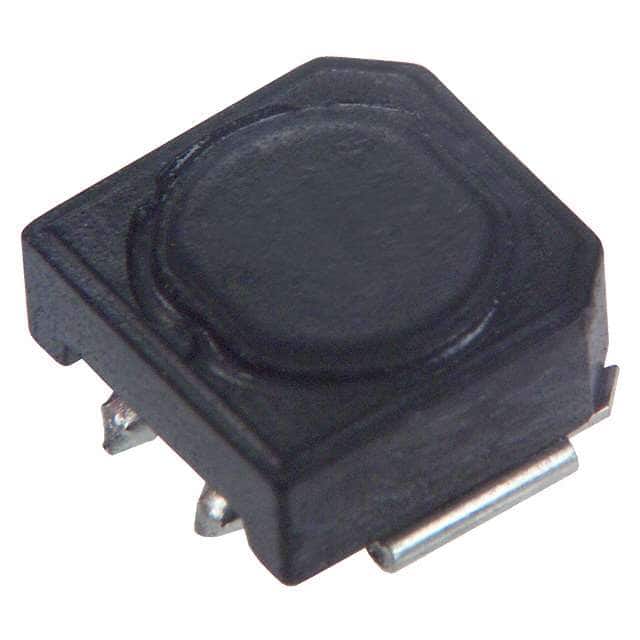

ELL-6SH681MFIXED IND 680UH 160MA 4.3OHM SMD |
2,207 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 160 mA | - | Shielded | 4.3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
ETQ-A17B330FIXED IND 33UH 6A 17 MOHM TH |
4,949 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 6 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A17B220FIXED IND 22UH 8A 17 MOHM TH |
2,253 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 8 A | - | Unshielded | 17mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A15B220FIXED IND 22UH 7A 15 MOHM TH |
3,424 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
|
ETQ-A15B330FIXED IND 33UH 4A 15 MOHM TH |
4,112 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4 A | - | Unshielded | 15mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
ELC-06D2R2EFIXED IND 2.2UH 3.4A 26 MOHM TH |
3,310 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.2 µH | ±20% | 3.4 A | - | Unshielded | 26mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D2R7EFIXED IND 2.7UH 3.2A 28 MOHM TH |
3,358 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.7 µH | ±20% | 3.2 A | - | Unshielded | 28mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D3R3EFIXED IND 3.3UH 3A 27 MOHM TH |
1,859 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 3.3 µH | ±20% | 3 A | - | Unshielded | 27mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D4R7EFIXED IND 4.7UH 2.6A 33 MOHM TH |
2,221 | - |
|
Datasheet | 06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 4.7 µH | ±20% | 2.6 A | - | Unshielded | 33mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
