Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744771212FIXED IND 120UH 1.3A 170MOHM SMD |
722 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.3 A | 1.56A | Shielded | 170mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714022FIXED IND 2.2UH 8.6A 8 MOHM SMD |
594 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.6 A | 9.5A | Shielded | 8mOhm Max | - | 53MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
74451115FIXED IND 15UH 800MA 0.09OHM SMD |
531 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 800 mA | 270mA | Shielded | 90mOhm Max | - | 25.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447714068FIXED IND 6.8UH 5.2A 22 MOHM SMD |
458 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.2 A | 5.8A | Shielded | 22mOhm Max | - | 23.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
744771115FIXED IND 15UH 3.75A 30 MOHM SMD |
452 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.2 A | 4.5A | Shielded | 28mOhm Max | - | 16.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447715101FIXED IND 100UH 1.3A 270MOHM SMD |
375 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 1.4A | Shielded | 270mOhm Max | - | 6.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
7447714151FIXED IND 150UH 1.2A 300MOHM SMD |
329 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.4A | Shielded | 300mOhm Max | - | 4.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744771006FIXED IND 6.8UH 6.25A 22MOHM SMD |
311 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.25 A | 6.4A | Shielded | 22mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714270FIXED IND 27UH 2.6A 74 MOHM SMD |
176 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.6 A | 3.4A | Shielded | 74mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
IHLP5050EZER2R2M01FIXED IND 2.2UH 20A 5.5 MOHM SMD |
150 | - |
|
Datasheet | IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|

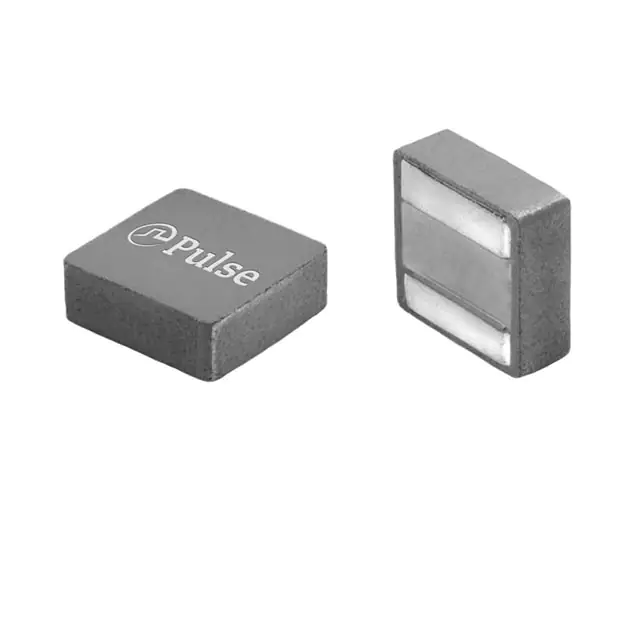

PA5175.103NLTFIXED IND 10UH 5A 43 MOHM SMD |
4,953 | - |
|
Datasheet | PA5175.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.4A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
SCIHP1367-100MFIXED IND 10UH 10A 18.5 MOHM SMD |
4,135 | - |
|
Datasheet | SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
VLBU6565100T-R07LINDUCTORS FOR POWER CIRCUITS, WO |
2,659 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 70 nH | ±15% | 70 A | 110A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
IHLP2525EZER4R7M01FIXED IND 4.7UH 6.5A 30.3MOHM SM |
1,737 | - |
|
Datasheet | IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 6.5 A | 7A | Shielded | 30.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
IHLP2525EZER8R2M01FIXED IND 8.2UH 5A 50.7 MOHM SMD |
1,457 | - |
|
Datasheet | IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 5 A | 5A | Shielded | 50.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
VLBU6565100T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
1,059 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 80A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
HCM1A1307V2-560-RFIXED IND 56UH 4A 65 MOHM SMD |
631 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 56 µH | ±20% | 4 A | 4.3A | Shielded | 65mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
83472CFIXED IND 4.7UH 1.1A 130MOHM SMD |
4,690 | - |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.7 µH | ±20% | 1.1 A | 1.66A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
SD6030-101-RFIXED IND 94.4UH 760MA 520 MOHM |
2,306 | - |
|
Datasheet | SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 94.4 µH | ±30% | 760 mA | 420mA | Shielded | 520mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
PA5005.332NLTFIXED IND 3.3UH 11A 12.5MOHM SMD |
2,214 | - |
|
Datasheet | PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
