Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447709821FIXED IND 820UH 950MA 1 OHM SMD |
758 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 950 mA | 1.1A | Shielded | 1Ohm Max | - | 1.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
UP2B-470-RFIXED IND 47UH 1.7A 138.8MOHM SM |
1,179 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | 1.4A | Unshielded | 138.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
UP2B-680-RFIXED IND 68UH 1.5A 178.7MOHM SM |
1,004 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.2A | Unshielded | 178.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
IHLP5050FDER4R7M8AIHLP-5050FD-8A 4.7 20% ER E3 |
763 | - |
|
Datasheet | IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 19.7 A | 18.5A | Shielded | 7.93mOhm Max | - | 15.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
744711015FIXED IND 10UH 15A 5.7 MOHM TH |
521 | - |
|
Datasheet | WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 15 A | - | Unshielded | 5.7mOhm | - | 37MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) | - |
|
HCP0704-4R7-RFIXED IND 4.7UH 5A 29.5 MOHM SMD |
2,183 | - |
|
Datasheet | HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±25% | 5 A | 8A | Shielded | 29.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
74435030010FIXED IND 100NH 27A 0.00031OHM |
4,059 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±15% | 27 A | 19.1A | Shielded | 0.31mOhm | - | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.197" L x 0.122" W (5.00mm x 3.10mm) | 0.118" (3.00mm) |
|
FP1008R5-R150-RFIXED IND 150NH 79A 0.17MOHM SMD |
1,993 | - |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 79 A | 64A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
5900-101-RCFIXED IND 100UH 2.2A 86 MOHM TH |
1,808 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 2.7A | Unshielded | 86mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-331-RCFIXED IND 330UH 1.2A 285 MOHM TH |
1,786 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.2 A | 1.4A | Unshielded | 285mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-104-RCFIXED IND 100MH 70MA 82 OHM TH |
1,176 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 70 mA | 83mA | Unshielded | 82Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-472-RCFIXED IND 4.7MH 340MA 3.7 OHM TH |
785 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 340 mA | 380mA | Unshielded | 3.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
7447786122FIXED IND 22UH 2A 115 MOHM SMD |
3,786 | - |
|
Datasheet | WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±25% | 2 A | 1.3A | Shielded | 115mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|

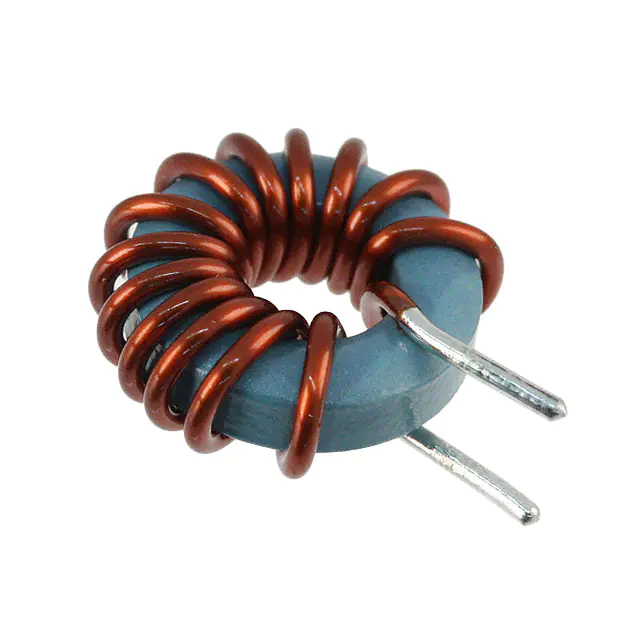

PA0431LNLFIXED IND 7.8UH 20.5A 5.5MOHM TH |
3,187 | - |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|
7447471330FIXED IND 33UH 3.6A 61 MOHM TH |
2,991 | - |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.6 A | 2.8A | Shielded | 61mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7443321000FIXED IND 10UH 9A 16.7 MOHM SMD |
1,732 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | 10A | Shielded | 16.7mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320100FIXED IND 1UH 24A 2.5 MOHM SMD |
1,339 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 24 A | 32A | Shielded | 2.5mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320330FIXED IND 3.3UH 17A 5.7 MOHM SMD |
1,300 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 17 A | 17A | Shielded | 5.7mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320470FIXED IND 4.7UH 15.5A 7.9MOHM SM |
1,040 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 15.5 A | 17A | Shielded | 7.9mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320680FIXED IND 6.8UH 13A 11 MOHM SMD |
822 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 13 A | 13A | Shielded | 11mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
