Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4342.473NLTFIXED IND 47UH 3A 167 MOHM SMD |
8,809 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
IHLP2525CZER3R3M8AFIXED IND 3.3UH 6.8A 28.4MOHM SM |
8,710 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.8 A | 8.3A | Shielded | 28.4mOhm Max | - | 28.3MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZERR68M8AFIXED IND 680NH 16.5A 5.76 MOHM |
7,995 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 16.5 A | 17A | Shielded | 5.76mOhm Max | - | 62.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020BZER4R7M11FIXED IND 4.7UH 3.2A 81.3MOHM SM |
1,521 | - |
|
Datasheet | IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.2 A | 3A | Shielded | 81.3mOhm Max | - | 27MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
B82477P4473M000FIXED IND 47UH 2.8A 67 MOHM SMD |
26,268 | - |
|
Datasheet | B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.8 A | 3A | Shielded | 67mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
IHLP2525CZER2R2M01FIXED IND 2.2UH 8A 20 MOHM SMD |
19,486 | - |
|
Datasheet | IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP1212BZER2R2M11FIXED IND 2.2UH 3A 46 MOHM SMD |
14,144 | - |
|
Datasheet | IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3 A | 3.3A | Shielded | 46mOhm Max | - | 55MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZERR47M01FIXED IND 470NH 12.2A 7.04 MOHM |
13,103 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 12.2 A | 16A | Shielded | 7.04mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020BZER1R0M11FIXED IND 1UH 7.5A 18.1 MOHM SMD |
10,391 | - |
|
Datasheet | IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7.5 A | 7A | Shielded | 18.1mOhm Max | - | 66MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525CZER100M11FIXED IND 10UH 4A 71.2 MOHM SMD |
8,706 | - |
|
Datasheet | IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

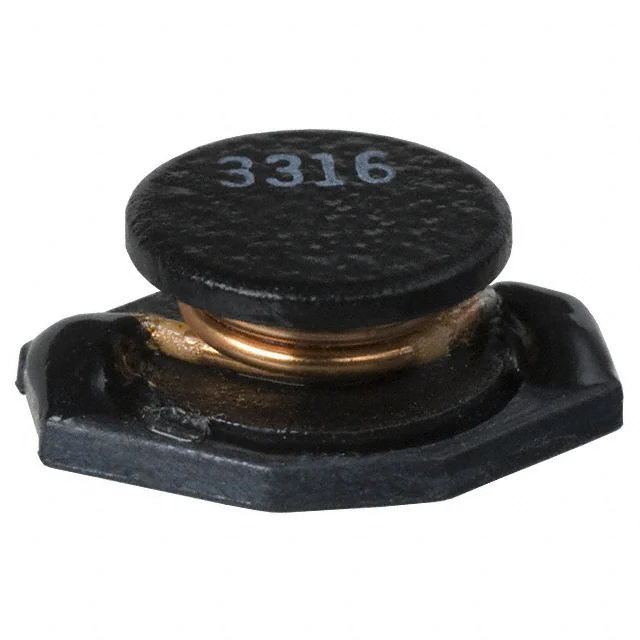

PM3316-151M-RCFIXED IND 150UH 800MA 590MOHM SM |
6,499 | - |
|
Datasheet | PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 1A | Unshielded | 590mOhm | 30 @ 50kHz | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
IHLP2020BZER2R2M01FIXED IND 2.2UH 4.2A 50.1MOHM SM |
6,050 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 4.2 A | 9.5A | Shielded | 50.1mOhm Max | - | 39MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2525CZER3R3M11FIXED IND 3.3UH 7A 26 MOHM SMD |
5,393 | - |
|
Datasheet | IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 7 A | 6.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP1212BZER3R3M11FIXED IND 3.3UH 2.7A 61 MOHM SMD |
12,805 | - |
|
Datasheet | IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.7 A | 3.3A | Shielded | 61mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZER2R2M01FIXED IND 2.2UH 5.8A 29.2MOHM SM |
5,578 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.8 A | 10A | Shielded | 29.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
HCM1A4020V2-4R7-RFIXED IND 4.7UH 2.5A 118MOHM SMD |
3,003 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 2.5 A | 3.2A | Shielded | 118mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
SRR1210-680MFIXED IND 68UH 3A 102 MOHM SMD |
126,347 | - |
|
Datasheet | SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3 A | 2.7A | Shielded | 102mOhm Max | 12 @ 2.52MHz | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP4020TA-100MFIXED IND 10UH 1.8A 243 MOHM SMD |
87,624 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 243mOhm Max | 10 @ 100kHz | 19MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZERR10M5AFIXED IND 0.1 UH 17.3 A 4.2 MOHM |
16,240 | - |
|
Datasheet | IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 17.3 A | 19A | Shielded | 4.2mOhm Max | - | 320MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-3R3MFIXED IND 3.3UH 3.5A 76 MOHM SMD |
15,927 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | 10 @ 100kHz | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
