Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1XC0394-2T0-10FIXED IND 6UH 19A 4 MOHM TH |
2,963 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 19 A | - | Unshielded | 4mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - |
|

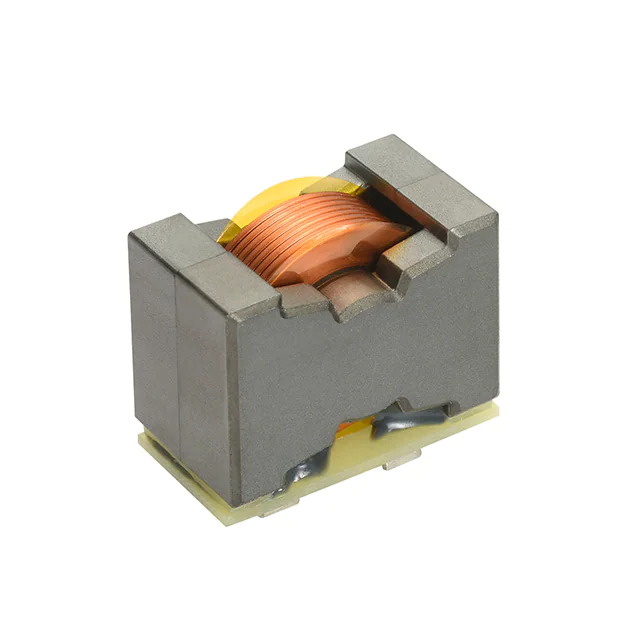

LDZ2817220K-10FIXED IND 22UH 26A 3 MOHM TH |
1,815 | - |
|
Datasheet | LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 26 A | 16.4A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ2817330K-10FIXED IND 33UH 26A 3 MOHM TH |
4,958 | - |
|
Datasheet | LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 26 A | 10.3A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ28176R8K-10FIXED IND 6.8UH 26A 3 MOHM TH |
4,199 | - |
|
Datasheet | LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 26 A | 56A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
MGV17071R5M-10FIXED IND 1.5UH 47A 2.5MOHM SMD |
4,234 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 47 A | 65A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17072R2M-10FIXED IND 2.2UH 43.5A 2.7MOHM SM |
1,697 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 43.5 A | 62A | Shielded | 2.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17074R7M-10FIXED IND 4.7UH 25A 5.5MOHM SMD |
2,785 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 25 A | 50A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17076R8M-10FIXED IND 6.8UH 19A 9.2MOHM SMD |
3,836 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 19 A | 39A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707100M-10FIXED IND 10UH 16.5A 13MOHM SMD |
1,826 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 29A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707150M-10FIXED IND 15UH 12.5A 20.5MOHM SM |
4,621 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 27A | Shielded | 20.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
