Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

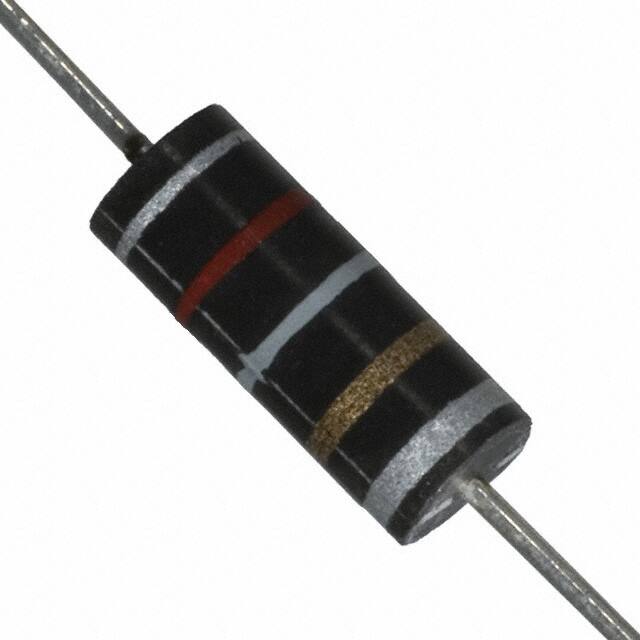

9250A-821-RCFIXED IND 820NH 370MA 590MOHM TH |
664 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 820 nH | ±10% | 370 mA | 370mA | Shielded | 590mOhm Max | 50 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

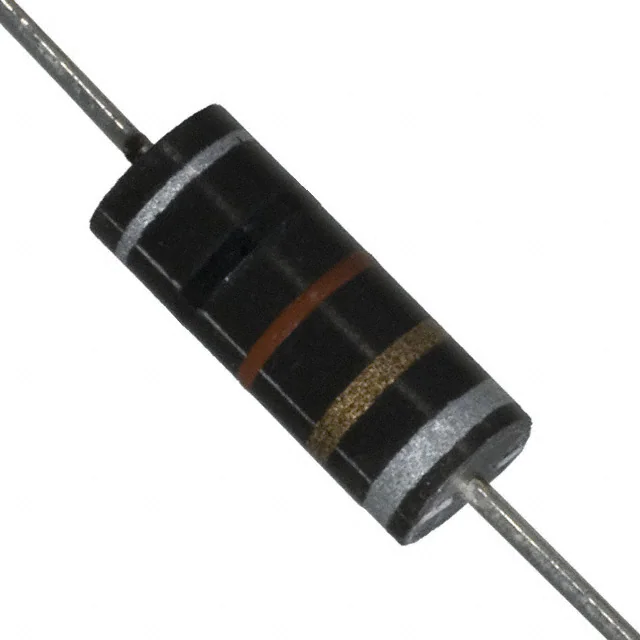

9250A-101-RCFIXED IND 100NH 1.79A 25 MOHM TH |
372 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 100 nH | ±10% | 1.79 A | 1.79A | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-473-RCFIXED IND 47UH 195MA 2.11 OHM TH |
356 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 47 µH | ±10% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-223-RCFIXED IND 22UH 290MA 960 MOHM TH |
288 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5256-RCFIXED IND 500UH 2A 260 MOHM TH |
1,120 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±20% | 2 A | - | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
|
5258-RCFIXED IND 1MH 1A 550 MOHM TH |
7,603 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 1 A | - | Unshielded | 550mOhm Max | - | 650kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
5230-RCFIXED IND 4UH 8A 12 MOHM TH |
4,505 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm Max | - | 165MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) | - |
|
|
5254-RCFIXED IND 250UH 2.5A 170 MOHM TH |
3,947 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm Max | - | 1.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) | - |
|
4606-RCFIXED IND 2.4UH 1.5A 190 MOHM TH |
3,964 | - |
|
Datasheet | 4600 | Axial | Bulk | Active | Wirewound | Phenolic | 2.4 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | 56 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
|
5252-RCFIXED IND 125UH 3.5A 80 MOHM TH |
4,528 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm Max | - | 2.25MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
