Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2207-V-RCFIXED IND 33UH 7.4A 20 MOHM TH |
278 | - |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2216-V-RCFIXED IND 220UH 3.6A 83 MOHM TH |
868 | - |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 3.6 A | - | Shielded | 83mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
5218-RCFIXED IND 3.35UH 20A 10 MOHM TH |
654 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | 107MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
2200LL-331-H-RCFIXED IND 330UH 4A 77 MOHM TH |
1,223 | - |
|
Datasheet | 2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4 A | - | Unshielded | 77mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
2200LL-470-V-RCFIXED IND 47UH 10.3A 12 MOHM TH |
713 | - |
|
Datasheet | 2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 10.3 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
2300LL-470-V-RCFIXED IND 47UH 11.8A 12 MOHM TH |
1,617 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2300LL-102-H-RCFIXED IND 1MH 3.5A 137 MOHM TH |
453 | - |
|
Datasheet | 2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 3.5 A | - | Shielded | 137mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300LL-561-V-RCFIXED IND 560UH 4A 103 MOHM TH |
386 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 560 µH | ±15% | 4 A | - | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-471-V-RCFIXED IND 470UH 4.5A 140 MOHM TH |
149 | - |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 4.5 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

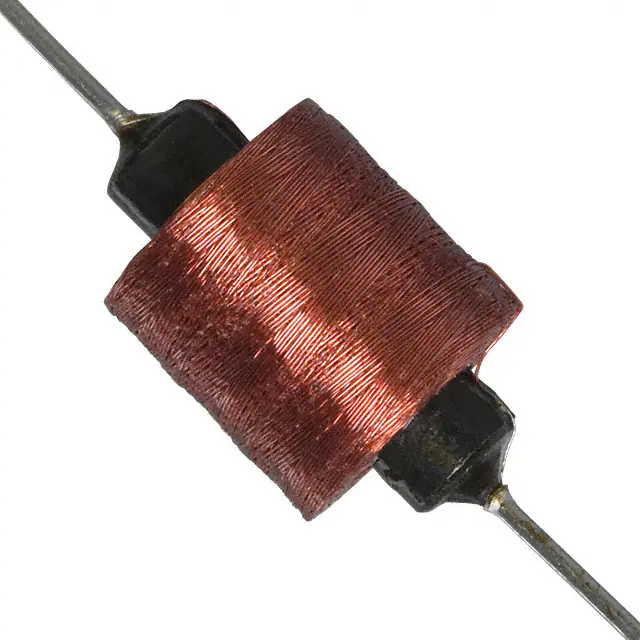

70F101AF-RCFIXED IND 100MH 29MA 278 OHM TH |
335 | - |
|
Datasheet | 70F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 29 mA | - | Unshielded | 278Ohm Max | 48 @ 79kHz | 157kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
