Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS160808-R82KFIXED IND 820NH 100MA 1.4OHM SMD |
9,843 | - |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 100 mA | - | Shielded | 1.4Ohm Max | 30 @ 25MHz | 75MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-R47KFIXED IND 470NH 150MA 700MOHM SM |
4,171 | - |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 150 mA | - | Shielded | 700mOhm Max | 30 @ 25MHz | 105MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,95.jpg "CVH160808-R47M")
|
CVH160808-R47MFIXED IND 470NH 1.2A 125MOHM SMD |
2,863 | - |
|
Datasheet | CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 125mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |

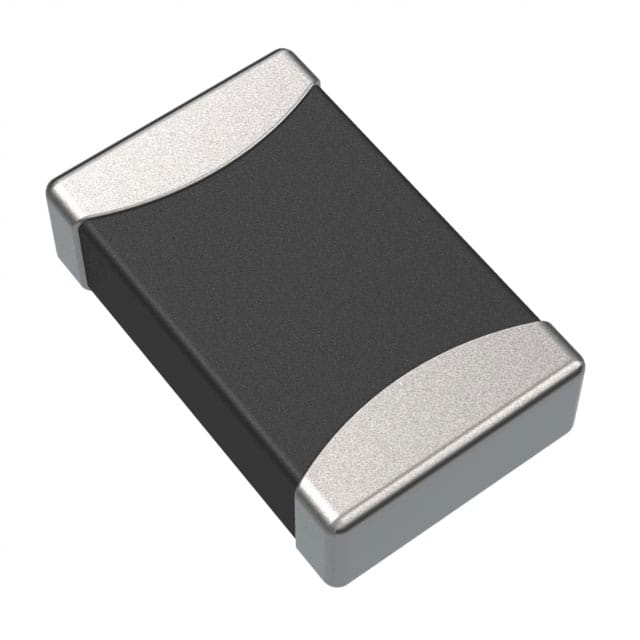

-,55.jpg "CVH201205-2R2M")
|
CVH201205-2R2MFIXED IND 2.2UH 600MA 412.5 MOHM |
10,528 | - |
|
Datasheet | CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 412.5mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
.JPG "CW161009A-20NJ")
|
CW161009A-20NJFIXED IND 20NH 700MA 120MOHM SMD |
20,285 | - |
|
Datasheet | CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 20 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
.JPG "CW105550A-3N9J")
|
CW105550A-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
11,917 | - |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-10NJFIXED IND 10NH 480MA 195MOHM SMD |
8,888 | - |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 10 nH | ±5% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-R12JFIXED IND 120NH 110MA 2.66OHM SM |
8,000 | - |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SRN2012T-2R2KIND,2X1.2X1.2MM,2.2UH10%,1.04A,S |
38,991 | - |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.04 A | 740mA | Shielded | 180mOhm | 13 @ 7.9MHz | 100MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
|
SRN2012T-4R7KIND,2X1.2X1.2MM,4.7UH10%,0.84A,S |
8,931 | - |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 840 mA | 520mA | Shielded | 360mOhm | 14 @ 7.9MHz | 65MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
