Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS160808-2R7KFIXED IND 2.7UH 50MA 1 OHM SMD |
8,213 | - |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 50 mA | - | Shielded | 1Ohm Max | 50 @ 10MHz | 40MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-R27KFIXED IND 270NH 200MA 500MOHM SM |
7,967 | - |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±10% | 200 mA | - | Shielded | 500mOhm Max | 30 @ 25MHz | 136MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-2R2KFIXED IND 2.2UH 50MA 900MOHM SMD |
6,666 | - |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 900mOhm Max | 50 @ 10MHz | 45MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CWF1610-220KIND,1.6X1X1MM,22UH10%,0.2A,NON-S |
10,357 | - |
|
Datasheet | CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 200 mA | 200mA | Unshielded | 3.61Ohm | 14 @ 2.5MHz | 24MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
CWF1610-100KIND,1.6X1X1MM,10UH10%,0.28A,NON- |
4,012 | - |
|
Datasheet | CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 280 mA | 280mA | Unshielded | 1.85Ohm | 14 @ 2.5MHz | 36MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
CWF2414-6R8KIND,2.2X1.4X1.3MM,6.8UH10%,0.7A, |
1,597 | - |
|
Datasheet | CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 700 mA | 420mA | Unshielded | 680mOhm | 14 @ 7.9MHz | 46MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |

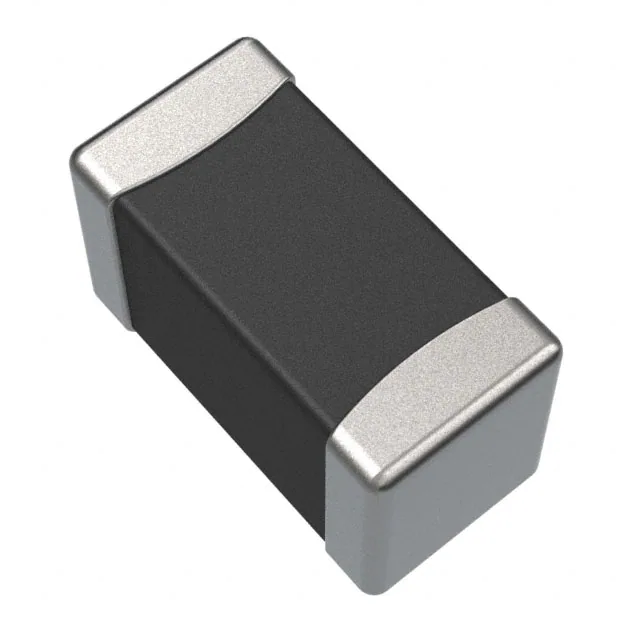

-,95.jpg "CVH160808-1R0M")
|
CVH160808-1R0MFIXED IND 1UH 950MA 250MOHM SMD |
9,130 | - |
|
Datasheet | CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | - | Shielded | 250mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

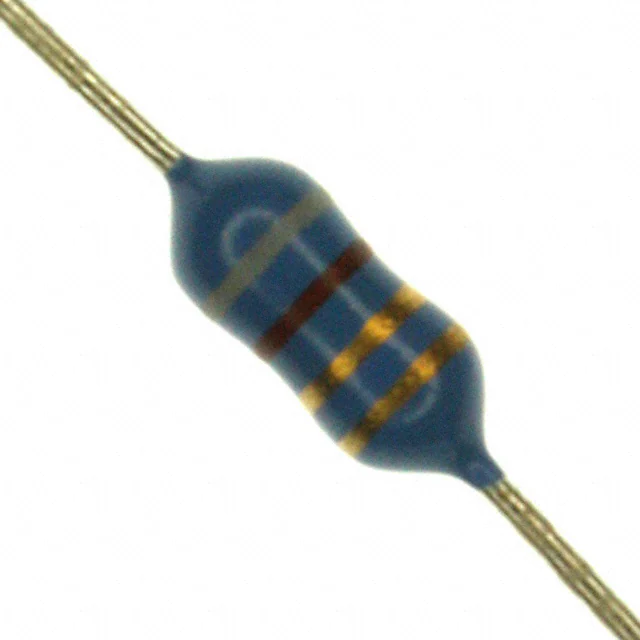

78F8R2J-RCFIXED IND 8.2UH 425MA 550MOHM TH |
21,121 | - |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 425 mA | - | Unshielded | 550mOhm Max | 40 @ 7.9MHz | 20MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
SRN2012T-220KIND,2X1.2X1.2MM,22UH10%,0.34A,SE |
42,258 | - |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 340 mA | 240mA | Shielded | 1.76Ohm | 15 @ 2.5MHz | 20MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
SRP3212-4R7MIND,3.2X2.5X1MM,4.7UH20%,2.2A,SH |
5,282 | - |
|
Datasheet | SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 2.2 A | 2.8A | Shielded | 146mOhm Max | 5 @ 100kHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
