Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

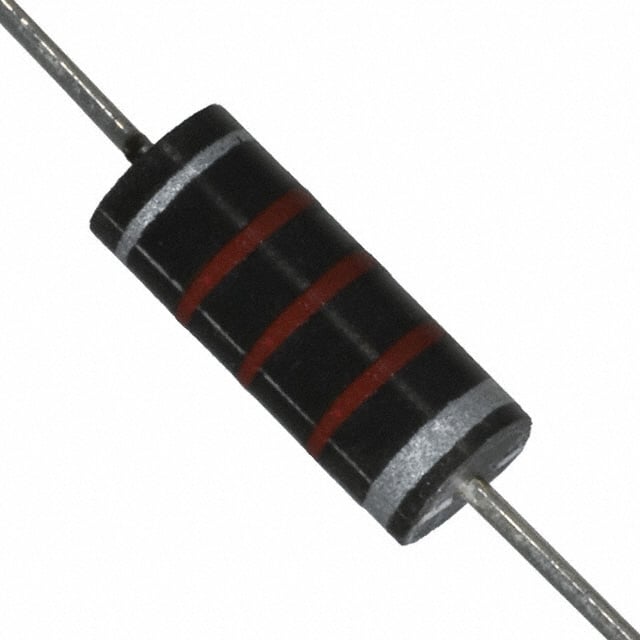

9250A-225-RCFIXED IND 2.2MH 50MA 33.8 OHM TH |
288 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 2.2 mH | ±10% | 50 mA | 27mA | Shielded | 33.8Ohm Max | 45 @ 250kHz | 970kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-275-RCFIXED IND 2.7MH 40MA 47.3 OHM TH |
183 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 2.7 mH | ±10% | 40 mA | 25mA | Shielded | 47.3Ohm Max | 45 @ 250kHz | 920kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-332-RCFIXED IND 3.3UH 480MA 350MOHM TH |
126 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 3.3 µH | ±10% | 480 mA | 480mA | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5900-393-RCFIXED IND 39MH 120MA 31 OHM TH |
1,179 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 120 mA | 130mA | Unshielded | 31Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-562-RCFIXED IND 5.6MH 320MA 4.1 OHM TH |
1,030 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 320 mA | 350mA | Unshielded | 4.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
PM7232S-1R5M-RCFIXED IND 1.5UH 9A 15 MOHM SMD |
3,847 | - |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.5 µH | ±20% | 9 A | 14A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PM7232S-R47M-RCFIXED IND 470NH 17.5A 4.2MOHM SM |
1,290 | - |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
PM12651S-4R7M-RCFIXED IND 4.7UH 12A 15 MOHM SMD |
2,399 | - |
|
Datasheet | PM12651S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
PM12645S-2R7M-RCFIXED IND 2.7UH 17A 7.3 MOHM SMD |
1,500 | - |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.7 µH | ±20% | 17 A | 32A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
4604-RCFIXED IND 1.5UH 1.8A 93 MOHM TH |
2,618 | - |
|
Datasheet | 4600 | Axial | Bulk | Active | Wirewound | Phenolic | 1.5 µH | ±10% | 1.8 A | - | Unshielded | 93mOhm Max | 58 @ 7.96MHz | 149MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
