Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

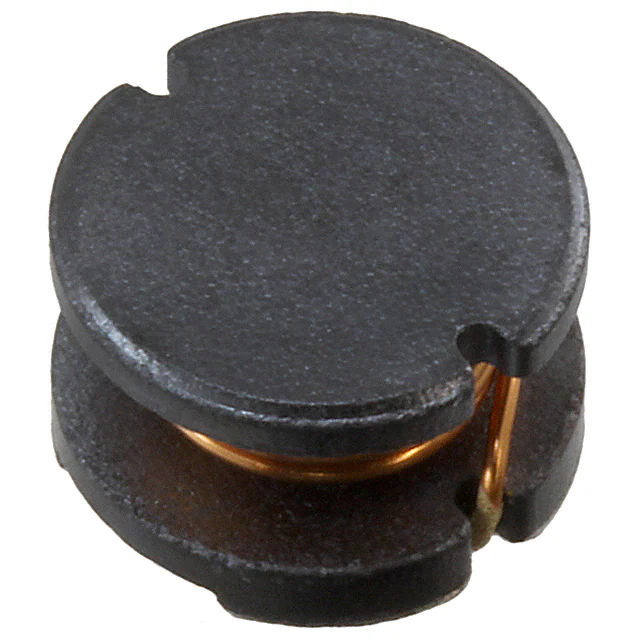

PM75-100K-RCFIXED IND 10UH 2.3A 70 MOHM SMD |
979 | - |
|
Datasheet | PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 3.2A | Unshielded | 70mOhm Max | 25 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-470K-RCFIXED IND 47UH 1A 200 MOHM SMD |
969 | - |
|
Datasheet | PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.6A | Unshielded | 200mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
6000-120K-RCFIXED IND 12UH 3.1A 50 MOHM TH |
1,157 | - |
|
Datasheet | 6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 3.1 A | - | Unshielded | 50mOhm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRR0805-150MFIXED IND 15UH 1.3A 140 MOHM SMD |
1,645 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | 1.8A | Shielded | 140mOhm Max | 40 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-2R2MFIXED IND 2.2UH 2.5A 40 MOHM SMD |
1,559 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 4.9A | Shielded | 40mOhm Max | 18 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SRR0603-471KLFIXED IND 470UH 150MA 6.7OHM SMD |
1,231 | - |
|
Datasheet | SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 150 mA | 190mA | Shielded | 6.7Ohm Max | 17 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0805-121KFIXED IND 120UH 450MA 750MOHM SM |
955 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 450 mA | 660mA | Shielded | 750mOhm Max | 42 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-221KFIXED IND 220UH 300MA 1.18OHM SM |
913 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 300 mA | 550mA | Shielded | 1.18Ohm Max | 38 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SRR1003-151MFIXED IND 150UH 320MA 1.8OHM SMD |
878 | - |
|
Datasheet | SRR1003 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 320 mA | 800mA | Shielded | 1.8Ohm Max | 23 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.118" (3.00mm) |
|
|
SRR0805-120MFIXED IND 12UH 1.4A 120 MOHM SMD |
700 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | 2.1A | Shielded | 120mOhm Max | 40 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
