Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR6603-1R5MLFIXED IND 1.5UH 2.8A 45 MOHM SMD |
3,340 | - |
|
Datasheet | SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 930mA | Shielded | 45mOhm Max | 30 @ 200kHz | 125MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
5800-180-RCFIXED IND 18UH 1.8A 43 MOHM TH |
1,252 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.8 A | 2.8A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-472-RCFIXED IND 4.7MH 110MA 12.5OHM TH |
1,487 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 110 mA | 170mA | Unshielded | 12.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
SRP1038A-R22MFIXED IND 220NH 35A 1 MOHM SMD |
567 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 35 A | 60A | Shielded | 1mOhm Max | 10 @ 100kHz | 155MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRR1210A-181MFIXED IND 180UH 1.9A 250MOHM SMD |
556 | - |
|
Datasheet | SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±20% | 1.9 A | 1.6A | Shielded | 250mOhm Max | 14 @ 796kHz | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SRR1210A-221MFIXED IND 220UH 1.7A 315MOHM SMD |
536 | - |
|
Datasheet | SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 1.7 A | 1.5A | Shielded | 315mOhm Max | 15 @ 796kHz | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SRR1210A-6R8YFIXED IND 6.8UH 7.85A 15MOHM SMD |
3,507 | - |
|
Datasheet | SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 7.85 A | 8.3A | Shielded | 15mOhm Max | 12 @ 7.96MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP1238A-8R2MFIXED IND 8.2UH 8.5A 28 MOHM SMD |
600 | - |
|
Datasheet | SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 8.5 A | 16A | Shielded | 28mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|

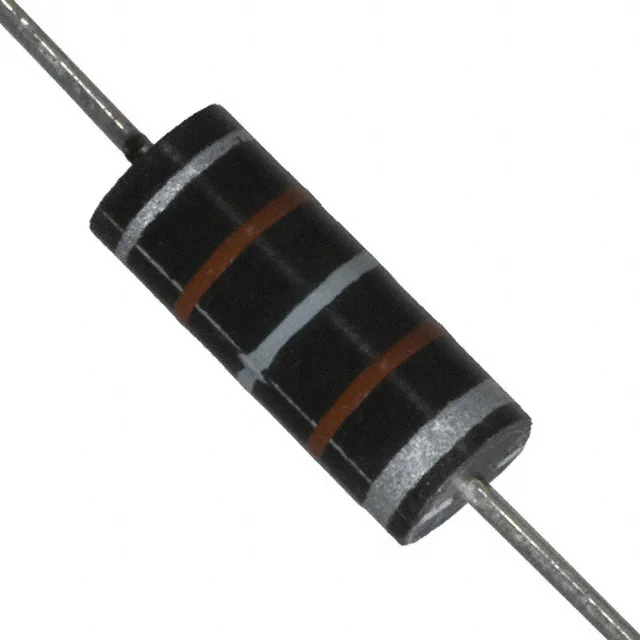

9250A-184-RCFIXED IND 180UH 135MA 4.4 OHM TH |
1,671 | - |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 180 µH | ±10% | 135 mA | 85mA | Shielded | 4.4Ohm Max | 55 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
SDR2207-331KLFIXED IND 330UH 1A 560 MOHM SMD |
254 | - |
|
Datasheet | SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1 A | 1.9A | Unshielded | 560mOhm Max | 20 @ 1MHz | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
