Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-820KFIXED IND 82UH 120MA 7 OHM SMD |
4,957 | - |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 82 µH | ±10% | 120 mA | - | Unshielded | 7Ohm Max | 50 @ 2.52MHz | 8MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-561KFIXED IND 560UH 50MA 30 OHM SMD |
2,777 | - |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
PM40-821KFIXED IND 820UH 30MA 45 OHM SMD |
2,016 | - |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 820 µH | ±10% | 30 mA | - | Unshielded | 45Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

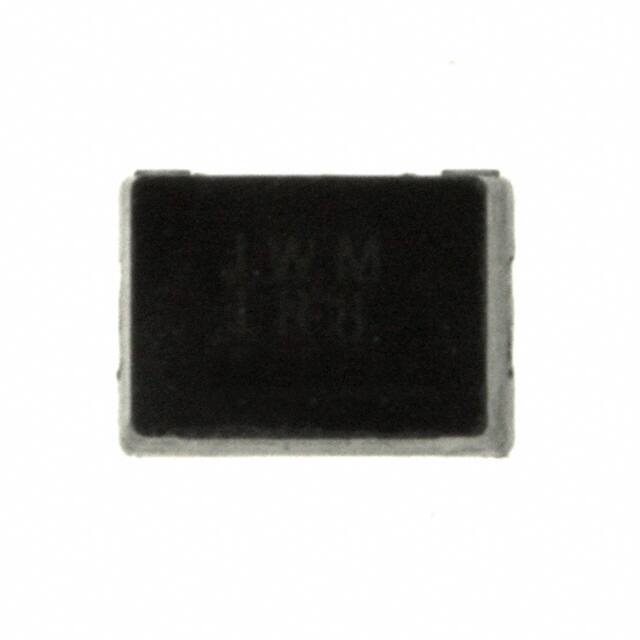

PM40-1R8KFIXED IND 1.8UH 390MA 650MOHM SM |
4,749 | - |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.8 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM20-R018MFIXED IND 18NH 450MA 180MOHM SMD |
3,650 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 18 nH | ±20% | 450 mA | - | Unshielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-100KFIXED IND 10UH 150MA 2.5 OHM SMD |
2,688 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 36MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-101KFIXED IND 100UH 40MA 10 OHM SMD |
1,490 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 100 µH | ±10% | 40 mA | - | Unshielded | 10Ohm Max | 20 @ 796kHz | 10MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-120KFIXED IND 12UH 140MA 2.8 OHM SMD |
2,384 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 12 µH | ±10% | 140 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 33MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-121KFIXED IND 120UH 70MA 11 OHM SMD |
2,454 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 120 µH | ±10% | 70 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 10MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-150KFIXED IND 15UH 130MA 3.2 OHM SMD |
4,119 | - |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 15 µH | ±10% | 130 mA | - | Unshielded | 3.2Ohm Max | 30 @ 2.52MHz | 30MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
