Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

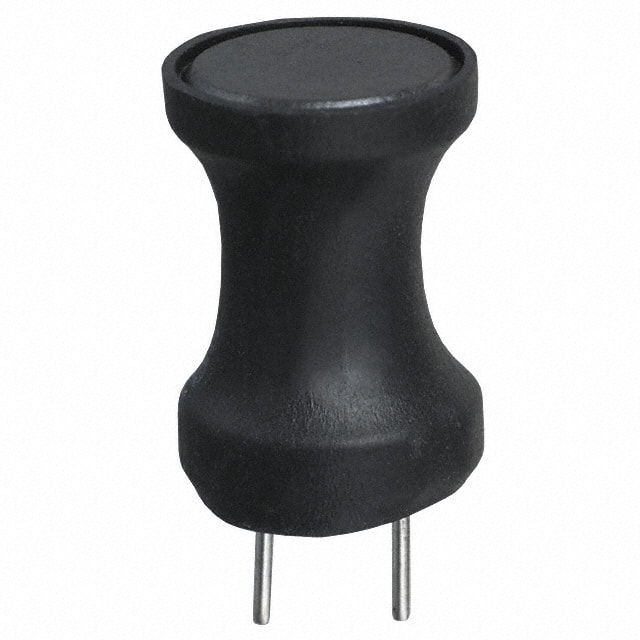

RL824-272K-RCFIXED IND 2.7MH 190MA 3.3 OHM TH |
4,118 | - |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 35 @ 250kHz | 610kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-330K-RCFIXED IND 33UH 1.49A 86 MOHM TH |
3,159 | - |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.49 A | - | Unshielded | 86mOhm Max | 90 @ 2.5MHz | 5.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-332K-RCFIXED IND 3.3MH 180MA 4 OHM TH |
2,441 | - |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 180 mA | - | Unshielded | 4Ohm Max | 35 @ 250kHz | 520kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-680K-RCFIXED IND 68UH 1.2A 130 MOHM TH |
1,729 | - |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.2 A | - | Unshielded | 130mOhm Max | 58 @ 2.5MHz | 3.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
SDR0703-1R0MLFIXED IND 1UH 2.2A 42 MOHM SMD |
1,696 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.2 A | 3.2A | Unshielded | 42mOhm Max | 25 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-270KLFIXED IND 27UH 600MA 400MOHM SMD |
4,577 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 600 mA | 880mA | Unshielded | 400mOhm Max | 20 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-271KLFIXED IND 270UH 170MA 3.6OHM SMD |
4,797 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 170 mA | 220mA | Unshielded | 3.6Ohm Max | 30 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-390KLFIXED IND 39UH 500MA 550MOHM SMD |
1,256 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 500 mA | 730mA | Unshielded | 550mOhm Max | 18 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-3R3MLFIXED IND 3.3UH 1.65A 75MOHM SMD |
2,888 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.65 A | 2.35A | Unshielded | 75mOhm Max | 23 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-3R9MLFIXED IND 3.9UH 1.58A 80MOHM SMD |
1,672 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.58 A | 2.25A | Unshielded | 80mOhm Max | 22 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
