Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-10FIXED IND 390NH 640MA 300MOHM TH |
1,851 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 390 nH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

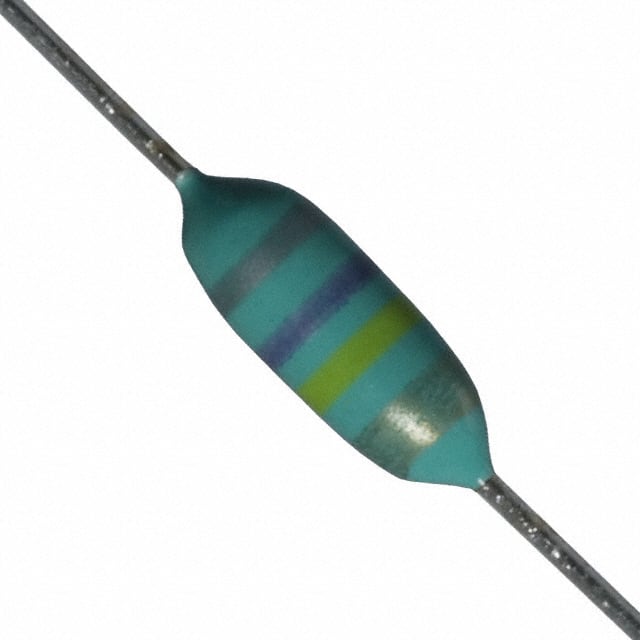

8230-12FIXED IND 470NH 590MA 350MOHM TH |
2,054 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 470 nH | ±10% | 590 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

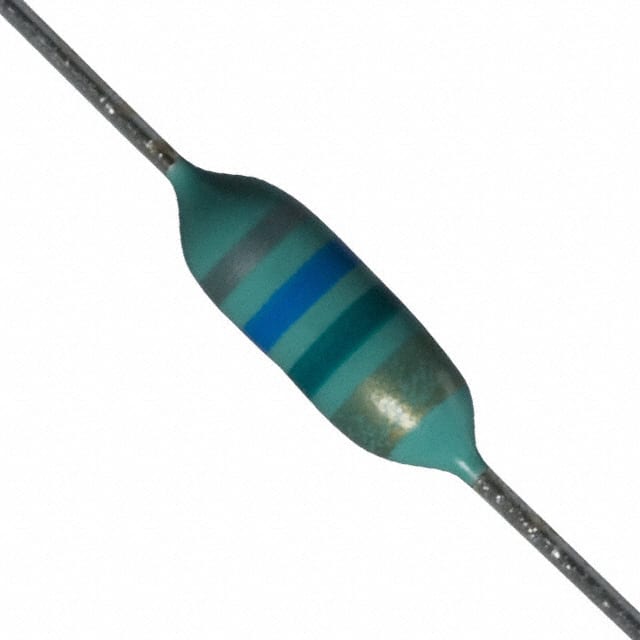

8230-14FIXED IND 560NH 495MA 500MOHM TH |
3,715 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 560 nH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-16FIXED IND 680NH 450MA 600MOHM TH |
3,412 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-18FIXED IND 820NH 380MA 850MOHM TH |
4,918 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 820 nH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

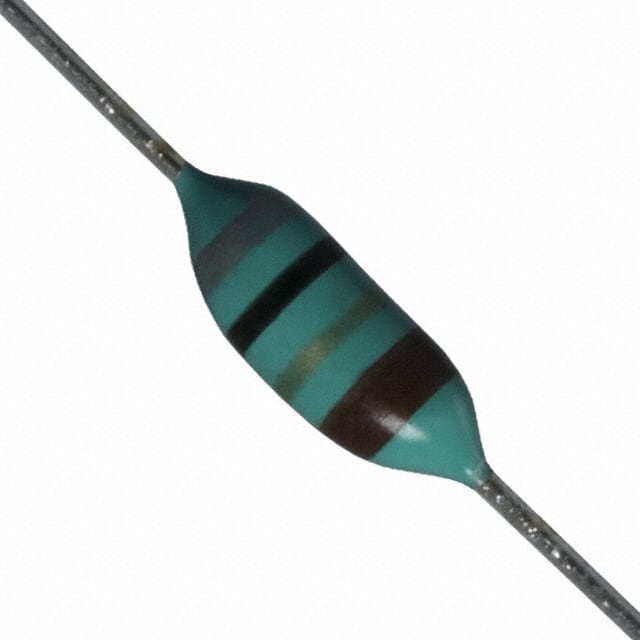

8230-20FIXED IND 1UH 350MA 1 OHM TH |
1,355 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-22FIXED IND 1.2UH 825MA 180MOHM TH |
3,022 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 825 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-24FIXED IND 1.5UH 745MA 220MOHM TH |
2,045 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 745 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-26FIXED IND 1.8UH 640MA 300MOHM TH |
4,158 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-28FIXED IND 2.2UH 550MA 400MOHM TH |
1,657 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 550 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
