Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1245CC-1R5MIND SMD 1.5UH 27A |
1,269 | - |
|
Datasheet | SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 48A | Shielded | 3.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRU2013-470YFIXED IND 47UH 250MA 2.86OHM SMD |
4,146 | - |
|
Datasheet | SRU2013 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 230mA | Shielded | 2.86Ohm Max | 14 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
SRP0315-1R5KFIXED IND 1.5UH 4.1A 48 MOHM SMD |
2,519 | - |
|
Datasheet | SRP0315 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±10% | 4.1 A | 4.4A | Shielded | 48mOhm Max | 14 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.059" (1.50mm) |
|
|
SRP1265CC-R68MIND SMD 0.68UH 41A |
1,038 | - |
|
Datasheet | SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 680 nH | ±20% | 41 A | 58A | Shielded | 1.5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR0805-681KFIXED IND 680UH 170MA 3.4OHM SMD |
4,449 | - |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 170 mA | 320mA | Shielded | 3.4Ohm Max | 32 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|

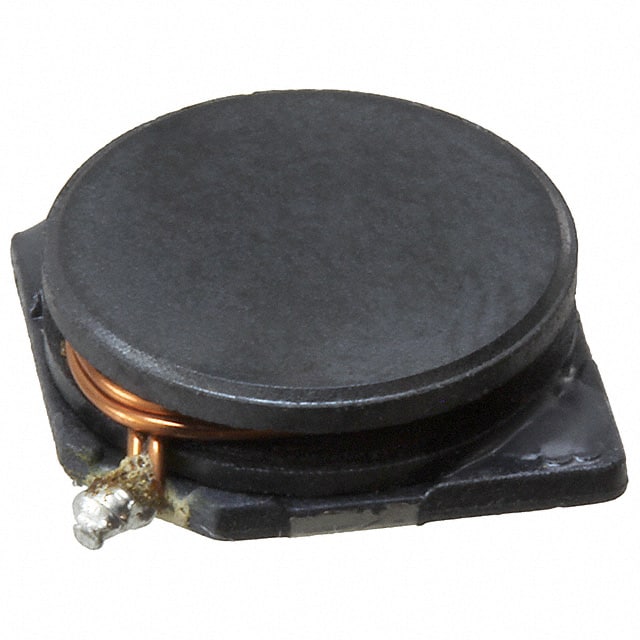

SDR1030-2R7MFIXED IND 2.7UH 3A 28 MOHM SMD |
4,787 | - |
|
Datasheet | SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3 A | 4.2A | Unshielded | 28mOhm Max | 13 @ 7.96MHz | 73.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
|
SRP7030CA-2R7MFIXED IND 2.7UH SMD |
4,402 | - |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.7 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

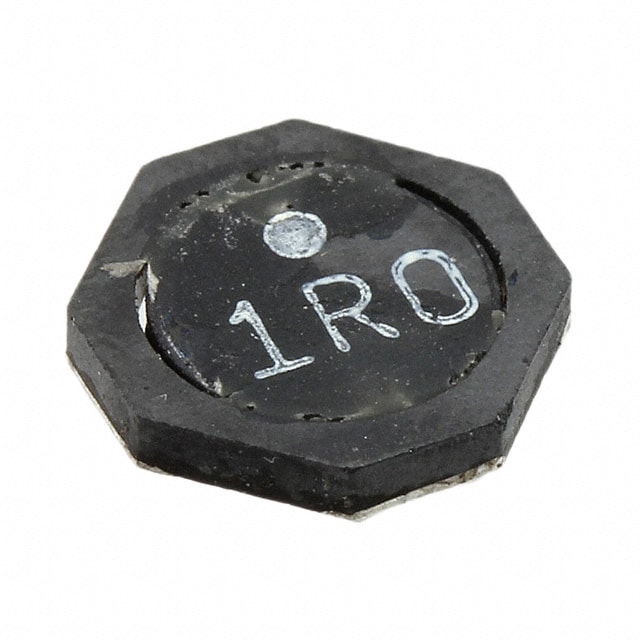

SRU6013-330YFIXED IND 33UH 780MA 500MOHM SMD |
2,048 | - |
|
Datasheet | SRU6013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 780 mA | 580mA | Shielded | 500mOhm Max | 10 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.063" (1.60mm) |
|
SRE6603-102MFIXED IND 1MH 150MA 3.4 OHM SMD |
2,233 | - |
|
Datasheet | SRE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | 45mA | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
9250-393FIXED IND 39UH 205MA 1.93 OHM TH |
3,480 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
