Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-86FIXED IND 560UH 48MA 46 OHM TH |
4,535 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 48 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-88FIXED IND 680UH 42MA 60 OHM TH |
3,345 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 42 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-90FIXED IND 820UH 40MA 65 OHM TH |
2,118 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 40 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

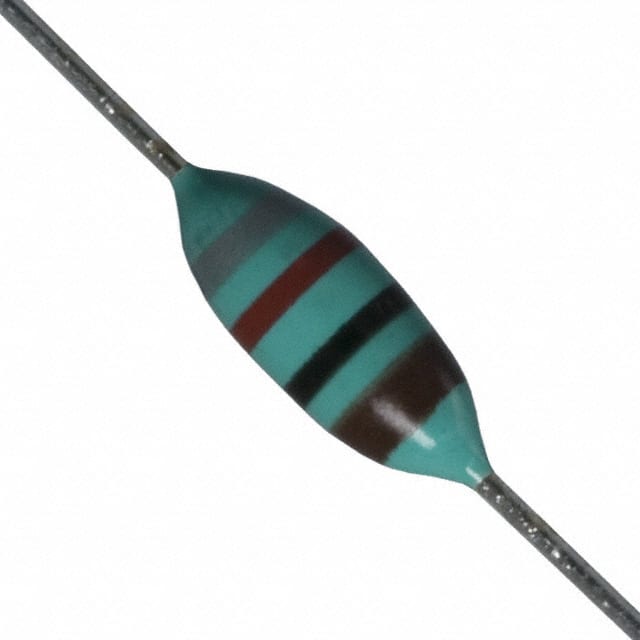

8230-92FIXED IND 1MH 38MA 72 OHM TH |
3,559 | - |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 38 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250-334FIXED IND 330UH 110MA 6.4 OHM TH |
2,440 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 110 mA | 65mA | Shielded | 6.4Ohm Max | 55 @ 790kHz | 6.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-184FIXED IND 180UH 135MA 4.4 OHM TH |
4,522 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 135 mA | 85mA | Shielded | 4.4Ohm Max | 55 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-823FIXED IND 82UH 180MA 2.44 OHM TH |
2,293 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 180 mA | 140mA | Shielded | 2.44Ohm Max | 50 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-224FIXED IND 220UH 125MA 5 OHM TH |
4,900 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 125 mA | 80mA | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-274FIXED IND 270UH 115MA 5.8 OHM TH |
4,620 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 115 mA | 70mA | Shielded | 5.8Ohm Max | 55 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-563FIXED IND 56UH 190MA 2.23 OHM TH |
3,402 | - |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 190 mA | 160mA | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
