Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

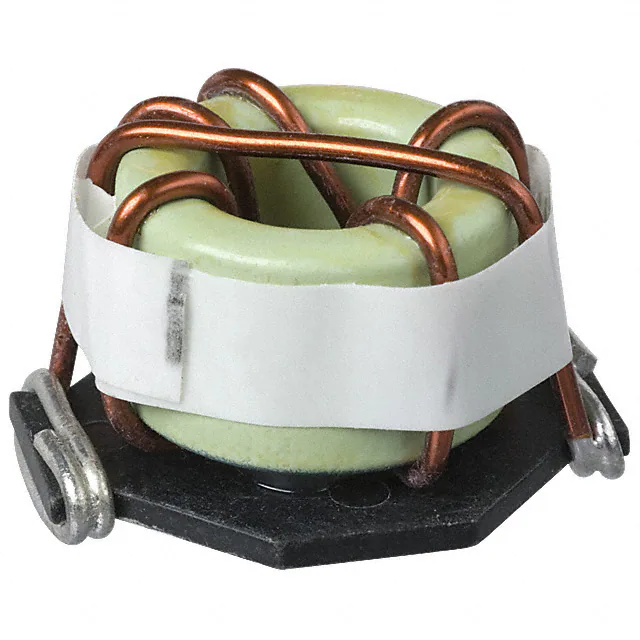

PM2120-1R2M-RCFIXED IND 1.2UH 25.4A 2 MOHM SMD |
2,235 | - |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.2 µH | ±20% | 25.4 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-2R7M-RCFIXED IND 2.7UH 19.7A 3 MOHM SMD |
2,236 | - |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 2.7 µH | ±20% | 19.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R3M-RCFIXED IND 3.3UH 18A 4 MOHM SMD |
3,473 | - |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.3 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R9M-RCFIXED IND 3.9UH 18A 4 MOHM SMD |
1,660 | - |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.9 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-1R8M-RCFIXED IND 1.8UH 22A 3 MOHM SMD |
4,881 | - |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.8 µH | ±20% | 22 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
2203-HFIXED IND 15UH 11.3A 8 MOHM TH |
2,648 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 15 µH | ±15% | 11.3 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2205-HFIXED IND 22UH 10.3A 10 MOHM TH |
1,037 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 10.3 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2206-HFIXED IND 27UH 9.8A 11 MOHM TH |
4,243 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2207-HFIXED IND 33UH 7.4A 20 MOHM TH |
1,105 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2209-HFIXED IND 47UH 6.7A 24 MOHM TH |
3,796 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
