Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6030VA-6R8MFIXED IND 6.8UH 6A 50 MOHM SMD |
1,401 | - |
|
Datasheet | SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6 A | 6.5A | Shielded | 50mOhm Max | 10 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
RL181S-104J-RCFIXED IND 100MH 9MA 82 OHM TH |
13,004 | - |
|
Datasheet | RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 9 mA | - | Shielded | 82Ohm Max | 100 @ 50kHz | 90kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-393J-RCFIXED IND 39MH 15MA 45 OHM TH |
826 | - |
|
Datasheet | RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 15 mA | - | Shielded | 45Ohm Max | 100 @ 50kHz | 120kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-103J-RCFIXED IND 10MH 25MA 12.1 OHM TH |
752 | - |
|
Datasheet | RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 25 mA | - | Shielded | 12.1Ohm Max | 100 @ 50kHz | 250kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-333J-RCFIXED IND 33MH 17MA 26 OHM TH |
724 | - |
|
Datasheet | RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 17 mA | - | Shielded | 26Ohm Max | 100 @ 50kHz | 160kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-222J-RCFIXED IND 2.2MH 60MA 5.2 OHM TH |
211 | - |
|
Datasheet | RL181S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 60 mA | - | Shielded | 5.2Ohm Max | 70 @ 50kHz | 510kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
SRP1245A-220MFIXED IND 22UH 6.5A 58 MOHM SMD |
34,695 | - |
|
Datasheet | SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 6.5 A | 10A | Shielded | 58mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|

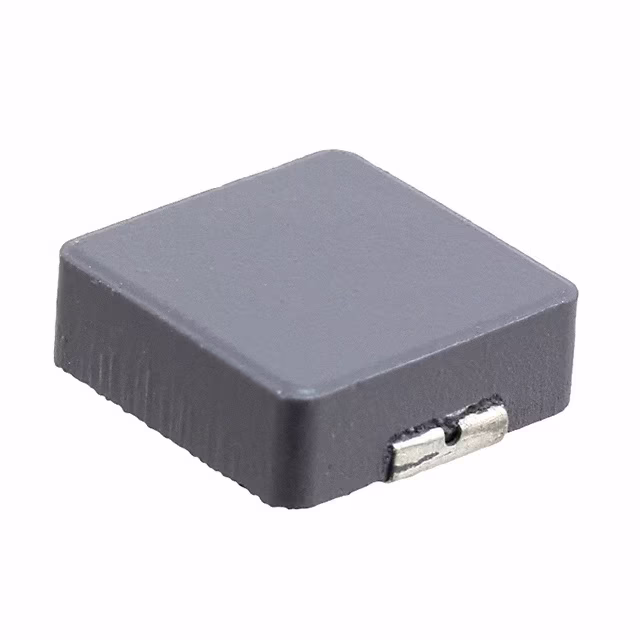

SRP1245A-R47MFIXED IND 470NH 38A 1.1 MOHM SMD |
27,415 | - |
|
Datasheet | SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 38 A | 65A | Shielded | 1.1mOhm Max | 20 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRP1250-100MFIXED IND 10UH 9A 25.5 MOHM SMD |
12,279 | - |
|
Datasheet | SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
SRP1250-3R3MFIXED IND 3.3UH 15A 9.2 MOHM SMD |
8,294 | - |
|
Datasheet | SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
