Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1205-2R5YFIXED IND 2.5UH 11.5A 3.4MOHM SM |
2,583 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 µH | ±25% | 11.5 A | 12A | Shielded | 3.4mOhm Max | - | 40MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-4R0YFIXED IND 4UH 10.5A 5.4 MOHM SMD |
2,882 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 10.5 A | 8.3A | Shielded | 5.4mOhm Max | - | 35MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-R60YFIXED IND 600NH 16A 2.5 MOHM SMD |
1,659 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 600 nH | ±25% | 16 A | 27A | Shielded | 2.5mOhm Max | - | 95MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

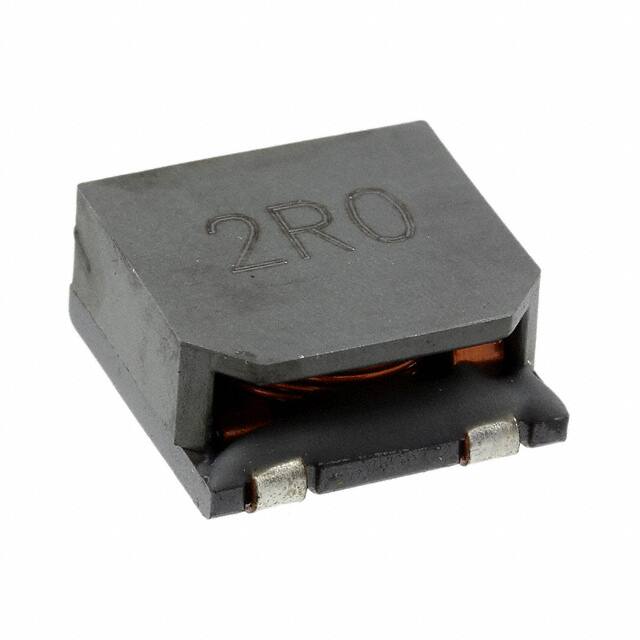

SRP1206-2R0YFIXED IND 2UH 17A 6 MOHM SMD |
2,649 | - |
|
Datasheet | SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 17 A | 15A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRP1206-3R3ZFIXED IND 3.3UH 14A 7 MOHM SMD |
3,271 | - |
|
Datasheet | SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±25% | 14 A | 12A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP1235-100MFIXED IND 10UH 7A 34 MOHM SMD |
3,407 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 10 µH | ±20% | 7 A | 9.5A | Shielded | 34mOhm Max | - | 11MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-1R8MFIXED IND 1.8UH 16.5A 7 MOHM SMD |
2,221 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.8 µH | ±20% | 16.5 A | 24A | Shielded | 7mOhm Max | - | 32MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-5R6MFIXED IND 5.6UH 10A 18 MOHM SMD |
3,885 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 5.6 µH | ±20% | 10 A | 14A | Shielded | 18mOhm Max | - | 15MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-8R2MFIXED IND 8.2UH 8.5A 28 MOHM SMD |
3,763 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 8.2 µH | ±20% | 8.5 A | 12A | Shielded | 28mOhm Max | - | 12MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R10MFIXED IND 100NH 43A 960 MOHM SMD |
2,162 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 100 nH | ±20% | 43 A | 56A | Shielded | 960mOhm Max | - | 105MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
