Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH104RT125NP-221MCFIXED IND 220UH 680MA 694MOHM SM |
2,324 | - |
|
Datasheet | CDRH104R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 680 mA | 850mA | Shielded | 694mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CDRH104RT125NP-680MCFIXED IND 68UH 1.25A 216MOHM SMD |
4,766 | - |
|
Datasheet | CDRH104R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.25 A | 1.57A | Shielded | 216mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CDRH104RT125NP-1R4PCFIXED IND 1.4UH 7.8A 9 MOHM SMD |
3,857 | - |
|
Datasheet | CDRH104R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.4 µH | ±25% | 7.8 A | 9.2A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
CD105NP-101KCFIXED IND 100UH 970MA 350MOHM SM |
3,988 | - |
|
Datasheet | CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 970 mA | - | Unshielded | 350mOhm Max | - | 7.64MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
IHLP4040EDER150M5AFIXED IND 15UH 6.5A 39.27MOHM SM |
3,369 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.5 A | 5.17A | Shielded | 39.27mOhm Max | - | 8.17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
IHLP4040EDERR68M5AFIXED IND 680NH 27A 2.14MOHM SMD |
3,880 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 27 A | 19.1A | Shielded | 2.14mOhm Max | - | 48.73MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
ECS-HCMPI-0402LRQ-2R2M-TFIXED IND 2.2UH 8A 0.0235OHM SMD |
4,294 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 4.8A | Shielded | 23.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-1R5M-TFIXED IND 1.5UH 9.1A 0.0158OHM |
4,831 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9.1 A | 6.7A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-R47M-TFIXED IND 470NH 13.2A 0.0068OHM |
2,274 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 13.2 A | 12.5A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-1R2M-TFIXED IND 1.2UH 9.5A 0.0134OHM |
3,879 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 9.5 A | 7.5A | Shielded | 13.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-3R3M-TFIXED IND 3.3UH 5.5A 0.0383OHM |
3,572 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5.5 A | 4.4A | Shielded | 38.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-R68M-TFIXED IND 680NH 12A 0.0082OHM SM |
1,222 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 12 A | 10A | Shielded | 8.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-1R0M-TFIXED IND 1UH 11A 0.0117OHM SMD |
2,396 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 8A | Shielded | 11.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-R82M-TFIXED IND 820NH 11.5A 0.0095OHM |
3,312 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 11.5 A | 9A | Shielded | 9.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402LRQ-2R0M-TFIXED IND 2UH 8.2A 0.0233OHM SMD |
4,376 | - |
|
Datasheet | ECS-HCMPI-0402LRQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2 µH | ±20% | 8.2 A | 5A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

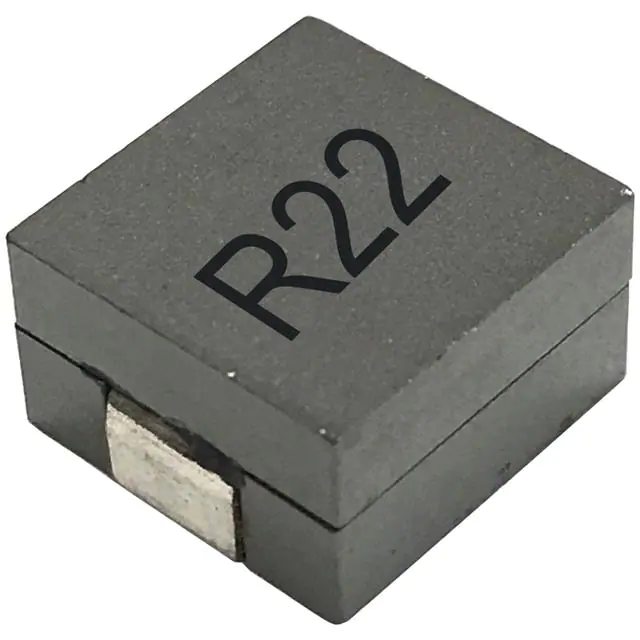

APMI00100868R17L0FINDUCTOR POWER |
2,944 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±15% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17L0EINDUCTOR POWER |
4,590 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±15% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17K0FINDUCTOR POWER |
1,120 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±10% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17K0EINDUCTOR POWER |
2,829 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±10% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17M0EINDUCTOR POWER |
1,788 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
