Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

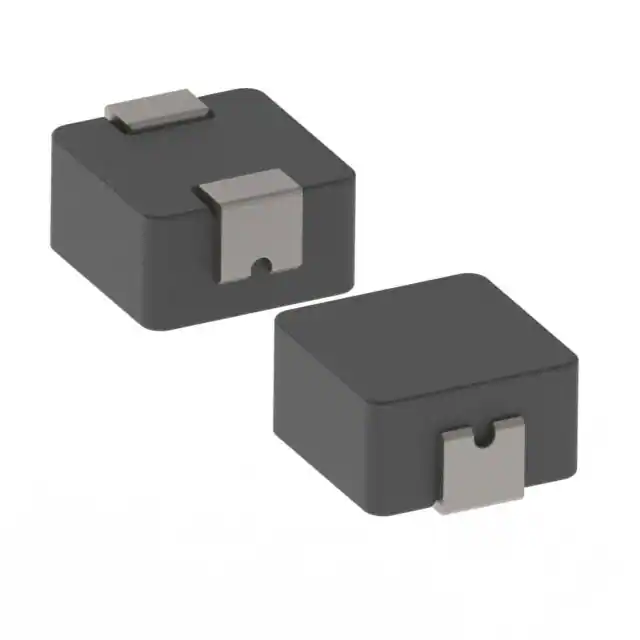

PM4340.333NLTFIXED IND 33UH 1.6A 440 MOHM SMD |
18,253 | - |
|
Datasheet | PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 1.6 A | 1.6A | Shielded | 440mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
PM4340.102NLTFIXED IND 1UH 7A 14 MOHM SMD |
7,063 | - |
|
Datasheet | PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
B82144B2274J000FIXED IND 270UH 800MA 1.2 OHM TH |
6,644 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 800 mA | 580mA | Unshielded | 1.2Ohm Max | 40 @ 79.6kHz | 3.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
3613C221KFIXED IND 220UH 100MA 10 OHM SMD |
3,183 | - |
|
Datasheet | 3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -30°C ~ 100°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82144B2334J000FIXED IND 330UH 700MA 1.53OHM TH |
3,136 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 700 mA | 520mA | Unshielded | 1.53Ohm Max | 40 @ 79.6kHz | 2.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
VLS4012HBX-1R0MFIXED IND 1UH 5.86A 53 MOHM SMD |
2,878 | - |
|
Datasheet | VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.86 A | 7.55A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS4012HBX-2R2M-NINDUCTORS FOR POWER CIRCUITS, WO |
2,490 | - |
|
Datasheet | VLS-HBX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.35 A | 3.8A | Shielded | 94mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
3613C220KFIXED IND 22UH 180MA 3.2 OHM SMD |
2,038 | - |
|
Datasheet | 3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
VLCF5020T-1R8N2R0FIXED IND 1.8UH 2.07A 59MOHM SMD |
1,844 | - |
|
Datasheet | VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.07 A | 2.07A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
SBC3-4R7-422FIXED IND 4.7UH 4.2A 20 MOHM TH |
1,512 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 4.6A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
SDE0805A-271KFIXED IND 270UH 700MA 1.11OHM SM |
9,506 | - |
|
Datasheet | SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 700 mA | 550mA | Unshielded | 1.11Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-470KFIXED IND 47UH 1.7A 180 MOHM SMD |
6,881 | - |
|
Datasheet | SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.7 A | 1.4A | Unshielded | 180mOhm Max | - | 12.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
RCH875NP-331KFIXED IND 330UH 300MA 1.05OHM TH |
6,790 | - |
|
Datasheet | RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 300 mA | 460mA | Unshielded | 1.05Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
B82145A1684J000FIXED IND 680UH 440MA 2.5 OHM TH |
6,490 | - |
|
Datasheet | HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 440 mA | - | Unshielded | 2.5Ohm Max | 20 @ 796kHz | 1.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
L06031R8CGSTRFIXED IND 1.8NH 1A 70 MOHM SMD |
6,140 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.8 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
CDRH4D18NP-330NCFIXED IND 33UH 320MA 694MOHM SMD |
3,973 | - |
|
Datasheet | CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 320 mA | - | Shielded | 694mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
SBC2-6R8-242FIXED IND 6.8UH 2.4A 50 MOHM TH |
3,706 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
|
SDE0805A-181KFIXED IND 180UH 850MA 710MOHM SM |
3,395 | - |
|
Datasheet | SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 850 mA | 650mA | Unshielded | 710mOhm Max | - | 6.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-150MFIXED IND 15UH 2.5A 90 MOHM SMD |
3,000 | - |
|
Datasheet | SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2.2A | Unshielded | 90mOhm Max | - | 22.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-330MFIXED IND 33UH 2A 130 MOHM SMD |
3,000 | - |
|
Datasheet | SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2 A | 1.6A | Unshielded | 130mOhm Max | - | 13.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
