Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWPA6028S100MTFIXED IND 10UH 1.95A 94MOHM SMD |
1,262 | - |
|
Datasheet | SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.95 A | 2.5A | Shielded | 94mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
SRR4818A-6R8YFIXED IND 6.8UH 2.2A 100MOHM SMD |
1,146 | - |
|
Datasheet | SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.2 A | 1.25A | Shielded | 100mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744911088FIXED IND 8.8NH 1.6A 12 MOHM SMD |
1,143 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8.8 nH | ±5% | 1.6 A | - | Unshielded | 12mOhm Max | 100 @ 800MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SRR4818A-2R2YFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,131 | - |
|
Datasheet | SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 2.43A | Shielded | 45mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SRR3818A-101MFIXED IND 100UH 340MA 2.6OHM SMD |
1,054 | - |
|
Datasheet | SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 340 mA | 200mA | Shielded | 2.6Ohm Max | - | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR4818A-470MFIXED IND 47UH 750MA 630MOHM SMD |
1,033 | - |
|
Datasheet | SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 750 mA | 470mA | Shielded | 630mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
ECS-MPI2520R1-1R0-RFIXED IND 1UH 3.7A 42 MOHM SMD |
22,918 | - |
|
Datasheet | ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.7 A | 4A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
B82432T1682K000FIXED IND 6.8UH 700MA 300MOHM SM |
18,959 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 700 mA | - | Unshielded | 300mOhm Max | 10 @ 7.96MHz | 36MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CLF5030NIT-470M-DFIXED IND 47UH 680MA 522MOHM SMD |
10,552 | - |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 680 mA | 750mA | Shielded | 522mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD |
9,569 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 20 A | 24.2A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
RL622-180K-RCFIXED IND 18UH 2.2A 61 MOHM TH |
7,477 | - |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.2 A | - | Unshielded | 61mOhm Max | 40 @ 2.52MHz | 11MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
NS10155T100MNAFIXED IND 10UH 4.4A 24 MOHM SMD |
7,332 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.4 A | 4.49A | Shielded | 24mOhm Max | - | 20.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|

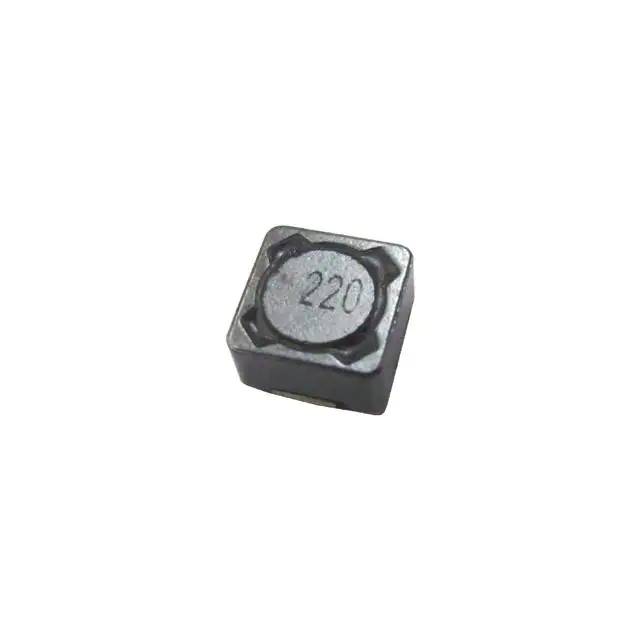

BPSC00101140220M00FIXED IND 22UH 80 MOHM SMD |
7,186 | - |
|
Datasheet | BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 2.6A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
SBC1-561-291FIXED IND 560UH 290MA 3.4 OHM TH |
5,025 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 290 mA | 200mA | Unshielded | 3.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
|
|
NS10155T220MNAFIXED IND 22UH 3.12A 45.6MOHM SM |
4,314 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.12 A | 3.37A | Shielded | 45.6mOhm Max | - | 11.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
|
NS10155T6R8NNAFIXED IND 6.8UH 4.98A 19.2 MOHM |
2,617 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.98 A | 6A | Shielded | 19.2mOhm Max | - | 24.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
CDRH6D38NP-101NCFIXED IND 100UH 650MA 358MOHM SM |
2,010 | - |
|
Datasheet | CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 650 mA | - | Shielded | 358mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
B82432T1822K000FIXED IND 8.2UH 670MA 330MOHM SM |
1,489 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 670 mA | - | Unshielded | 330mOhm Max | 10 @ 7.96MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CDRH4D28NP-470NCFIXED IND 47UH 480MA 587MOHM SMD |
110,269 | - |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 480 mA | - | Shielded | 587mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-1R5MCFIXED IND 1.5UH 10.2A 12.1 MOHM |
38,189 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 10.2 A | 15.2A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
