Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5022R-754JFIXED IND 750UH 112MA 28.6OHM SM |
2,407 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 750 µH | ±5% | 112 mA | - | Unshielded | 28.6Ohm Max | 65 @ 790kHz | 2.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-821JFIXED IND 820NH 1.3A 220MOHM SMD |
3,539 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±5% | 1.3 A | - | Unshielded | 220mOhm Max | 50 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-822JFIXED IND 8.2UH 748MA 600MOHM SM |
1,476 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±5% | 748 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-823JFIXED IND 82UH 295MA 3.9 OHM SMD |
3,765 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 82 µH | ±5% | 295 mA | - | Unshielded | 3.9Ohm Max | 50 @ 2.5MHz | 10.3MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-824JFIXED IND 820UH 110MA 30 OHM SMD |
1,395 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 820 µH | ±5% | 110 mA | - | Unshielded | 30Ohm Max | 65 @ 790kHz | 2.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-911JFIXED IND 910NH 1.24A 240MOHM SM |
2,683 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 910 nH | ±5% | 1.24 A | - | Unshielded | 240mOhm Max | 50 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-912JFIXED IND 9.1UH 638MA 800MOHM SM |
4,227 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 9.1 µH | ±5% | 638 mA | - | Unshielded | 800mOhm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-913JFIXED IND 91UH 280MA 4.3 OHM SMD |
4,090 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 91 µH | ±5% | 280 mA | - | Unshielded | 4.3Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-914JFIXED IND 910UH 107MA 31.5OHM SM |
2,769 | - |
|
Datasheet | 5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 910 µH | ±5% | 107 mA | - | Unshielded | 31.5Ohm Max | 65 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
24FP-181KLFFIXED IND 1.8UH 5.43A 0.012OHM |
4,573 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±10% | 5.43 A | 10A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-471KLFFIXED IND 4.7UH 4.01A 0.022OHM |
1,559 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±10% | 4.01 A | 5.5A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-221KLFFIXED IND 2.2UH 5.22A 0.013OHM |
1,078 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±10% | 5.22 A | 9A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-271KLFFIXED IND 2.7UH 5.03A 0.014OHM |
3,712 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±10% | 5.03 A | 8.2A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-681KLFFIXED IND 6.8UH 3.69A 0.026OHM |
2,326 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±10% | 3.69 A | 4.5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
SMRF1812T-391JLFMOLDED UNSHIELDED INDUCTOR |
3,494 | - |
|
Datasheet | SMRF1812T | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 µH | ±5% | 443 mA | - | Unshielded | 900mOhm Max | 28 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812S-563KLFMOLDED SHIELDED INDUCTOR |
1,493 | - |
|
Datasheet | SMRF1812S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 106 mA | 47mA | Shielded | 17.8Ohm Max | 40 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
24FP-561KLFFIXED IND 5.6UH 3.84A 0.024OHM |
3,983 | - |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±10% | 3.84 A | 5A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
SHBC8S-0R6A0043VCMC 43UH 2A 2LN TH |
2,438 | - |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 43 µH | ±20% | 2 A | - | Unshielded | 54.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.669" Dia (17.00mm) | 0.669" (17.00mm) |
|
|
5526-6FIXED IND 222NH 3A SMD |
3,242 | - |
|
Datasheet | 5526 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 222 nH | ±5% | 3 A | - | Unshielded | - | 92 @ 50MHz | 730MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.235" (5.97mm) |
|

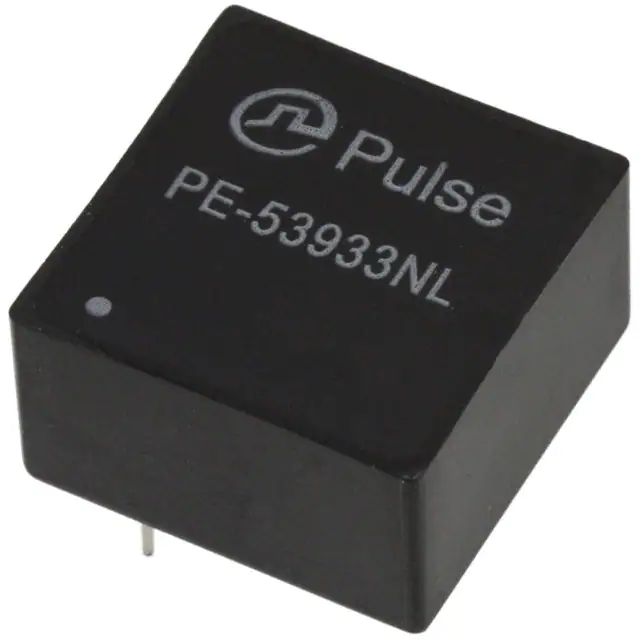

PE-53933NLFIXED IND 24UH 2.74A 70 MOHM TH |
3,896 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
