Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020ABER2R2M01FIXED IND 2.2UH 3.4A 77.3MOHM SM |
29,460 | - |
|
Datasheet | IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.4 A | 6A | Shielded | 77.3mOhm Max | - | 47MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
744772332FIXED IND 3.3MH 280MA 6.2 OHM TH |
18,188 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 280 mA | 300mA | Unshielded | 6.2Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

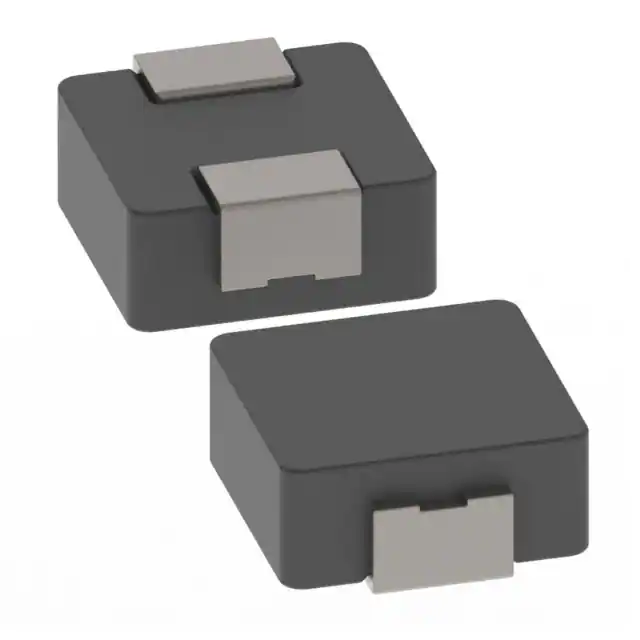

PM4341.473NLTFIXED IND 47UH 1.75A 363MOHM SMD |
9,099 | - |
|
Datasheet | PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 1.75 A | 2A | Shielded | 363mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
IFLR4027EZERR22M01FIXED IND 220NH 50A 0.42MOHM SMD |
5,224 | - |
|
Datasheet | IFLR-4027EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 50 A | 33A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.402" W (7.00mm x 10.20mm) | 0.197" (5.00mm) |
|

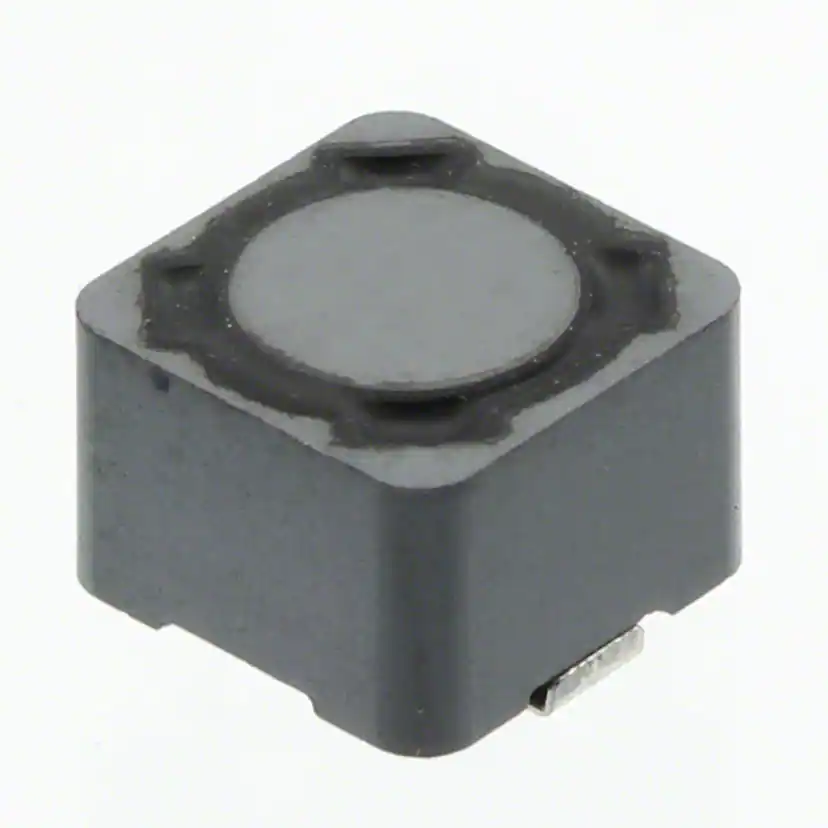

PA4302.103NLTFIXED IND 10UH 3A 55 MOHM SMD |
5,215 | - |
|
Datasheet | PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.220" (5.60mm) |
|
CDRH80D65BT150NP-101MCFIXED IND 100UH 1.37A 168MOHM SM |
4,512 | - |
|
Datasheet | CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.37 A | 1.41A | Shielded | 168mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDRH6D38T125NP-100PCFIXED IND 10UH 3A 43.5 MOHM SMD |
4,055 | - |
|
Datasheet | CDRH6D38/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 3 A | 2.2A | Shielded | 43.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|

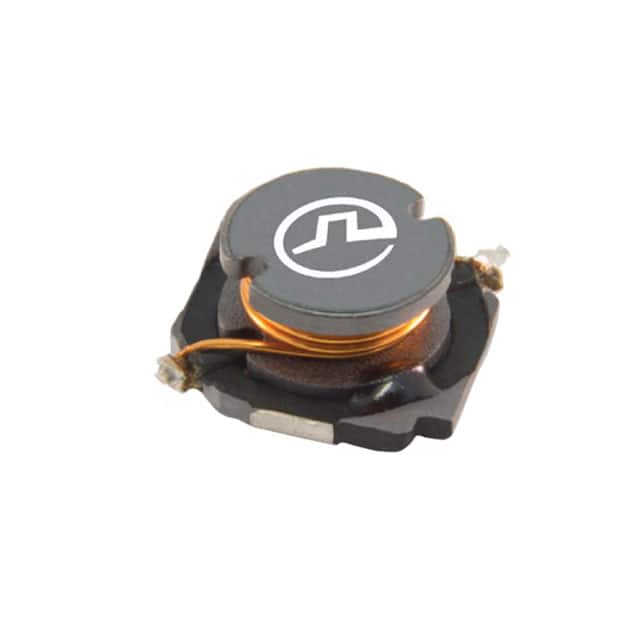

PA4307.105NLTFIXED IND 1MH 300MA 12.295OHM SM |
3,914 | - |
|
Datasheet | PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | - | Unshielded | 12.295Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
SRP3012TA-5R6MFIXED IND 5.6UH 1.5A 360MOHM SMD |
3,672 | - |
|
Datasheet | SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 1.5 A | 2.2A | Shielded | 360mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
SPM6530T-2R2M-HZFIXED IND 2.2UH 8.4A 19.03 MOHM |
3,337 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 8.4 A | 6.3A | Shielded | 19.03mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
EXL1V0705-4R7-RFIXED IND 4.7UH 11A 15.4MOHM SMD |
2,150 | - |
|
Datasheet | EXL1V0705 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 11 A | 13A | Shielded | 15.4mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CLF7045T-101M-HFIXED IND 100UH 900MA 330MOHM SM |
1,994 | - |
|
Datasheet | CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 750mA | Shielded | 330mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
IHLP3232DZER3R3M5AFIXED IND 3.3UH 11.3A 16.48 MOHM |
1,237 | - |
|
Datasheet | IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 11.3 A | 11.8A | Shielded | 16.48mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|
DR125-180-RFIXED IND 18UH 3.81A 37.7MOHM SM |
1,084 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.81 A | 5.32A | Shielded | 37.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
B82442T1332K000FIXED IND 3.3UH 2.46A 46MOHM SMD |
902 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 2.46 A | 5.2A | Unshielded | 46mOhm Max | 15 @ 7.96MHz | 36MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
DR125-472-RFIXED IND 4.72MH 268MA 7.53 OHM |
892 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.72 mH | ±20% | 268 mA | 320mA | Shielded | 7.53Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
AIUR-06-680KFIXED IND 68UH 2.4A 78 MOHM TH |
4,880 | - |
|
Datasheet | AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.4 A | 3.5A | Unshielded | 78mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
CDRH6D12NP-2R2NCFIXED IND 2.2UH 2.3A 50 MOHM SMD |
3,853 | - |
|
Datasheet | CDRH6D12 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2.3 A | 2.5A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.059" (1.50mm) |
|

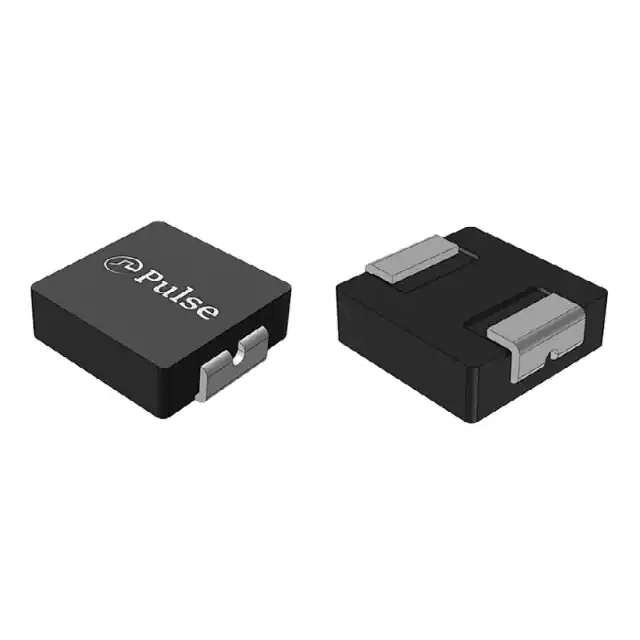

PA5448.471NLTFIXED IND 470NH 25A 3.1MOHM SMD |
3,479 | - |
|
Datasheet | PA5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 25 A | 24A | Shielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|
SRU8028A-100YFIXED IND 10UH 2.6A 57 MOHM SMD |
2,876 | - |
|
Datasheet | SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.6 A | 2.2A | Shielded | 57mOhm Max | 22 @ 2.52MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
