Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

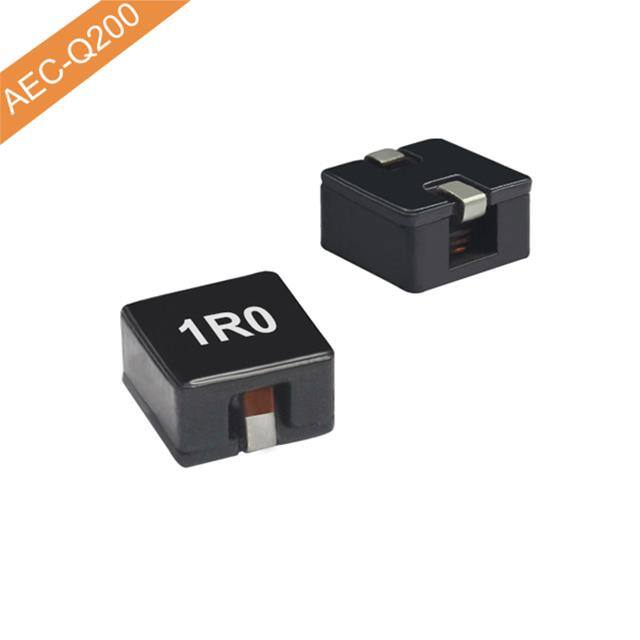

CSBL0640-1R5MSMD HIGH CURRENT POWER INDUCTOR |
955 | - |
|
Datasheet | CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 11.5 A | 14A | Shielded | 6.2mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
CSBX0640-4R7MSMD HIGH CURRENT POWER INDUCTOR |
955 | - |
|
Datasheet | CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 6.4 A | 11A | Shielded | 21.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
CSAB1265A-100MSMD MOLDING POWER CHOKE |
370 | - |
|
Datasheet | CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 10 A | 14A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSBX0640-R68MSMD HIGH CURRENT POWER INDUCTOR |
848 | - |
|
Datasheet | CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 680 nH | ±20% | 17.5 A | 30A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|
VSAB1365-220MAUTOMOTIVE SMD MOLDING POWER CHK |
387 | - |
|
Datasheet | VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 7 A | 5.5A | Shielded | 39.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-100MAUTOMOTIVE SMD MOLDING POWER CHK |
364 | - |
|
Datasheet | VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 11 A | 7.5A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-6R8MAUTOMOTIVE SMD MOLDING POWER CHK |
400 | - |
|
Datasheet | VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 11 A | 9A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-150MAUTOMOTIVE SMD MOLDING POWER CHK |
400 | - |
|
Datasheet | VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 15 µH | ±20% | 7.5 A | 6A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
VSAB1365-4R7MAUTOMOTIVE SMD MOLDING POWER CHK |
400 | - |
|
Datasheet | VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 15 A | 11.5A | Shielded | 8.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.248" (6.30mm) |
|
|
CSAC1265-150MSMD MOLDING POWER CHOKE |
799 | - |
|
Datasheet | CSAC1265 | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 8.5 A | 12A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.498" W (13.40mm x 12.65mm) | 0.260" (6.60mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
