Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10065VT-220M-DFIXED IND 22UH 5.4A 0.0433OHM SM |
447 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 5.4 A | 7.8A | Shielded | 43.3mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1006 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.256" (6.50mm) |
|
DFE32CAHR68MR0LFIXED IND 0.68UH 7A |
410 | - |
|
Datasheet | DFE32CAH_R0 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 5 A | 7A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
IHLP2525CZER3R3M5AFIXED IND 3.3UH 6.8A 28.4MOHM SM |
355 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.8 A | 8.3A | Shielded | 28.4mOhm Max | - | 28.6MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SRR1240-5R6MFIXED IND 5.6UH 5.4A 20 MOHM SMD |
298 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 5.4 A | 5.1A | Shielded | 20mOhm Max | 14 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
DR124-330-RFIXED IND 33UH 2.6A 97 MOHM SMD |
143 | - |
|
Datasheet | DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.6 A | 3.12A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
B82472G6473M000FIXED IND 47UH 1A 200 MOHM SMD |
15,089 | - |
|
Datasheet | B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 900mA | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

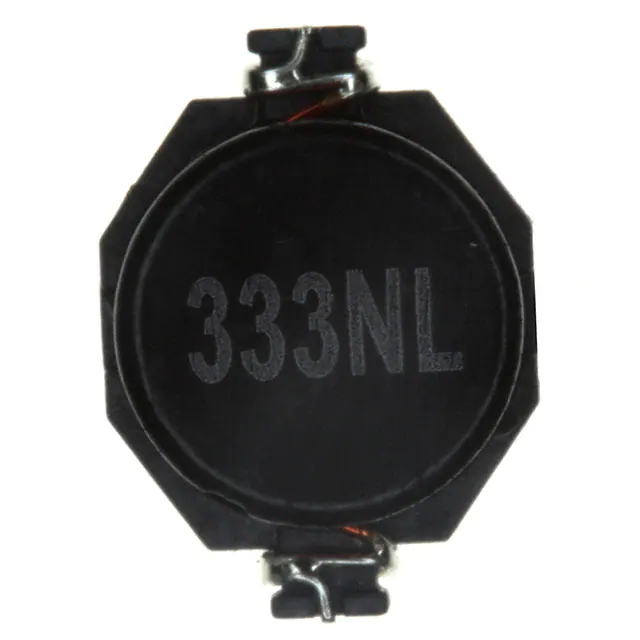

P0751.333NLTFIXED IND 33UH 2A 120 MOHM SMD |
5,754 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2 A | 2A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
P0751.683NLTFIXED IND 68UH 1.4A 240 MOHM SMD |
4,269 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA4342.333NLTFIXED IND 33UH 3.5A 112 MOHM SMD |
3,693 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
SPM3010T-3R3M-LRFIXED IND 3.3UH 1.9A 218.5 MOHM |
3,247 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.9 A | 2.2A | Shielded | 218.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.039" (1.00mm) |
|
SPM6530T-100M-HZFIXED IND 10UH 4.2A 86.35MOHM SM |
3,195 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 4.2 A | 2.9A | Shielded | 86.35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
IHLP2020BZERR10M01FIXED IND 100NH 17A 3.9 MOHM SMD |
2,962 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 17 A | 45A | Shielded | 3.9mOhm Max | - | 239MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
P0751.103NLTFIXED IND 10UH 3.8A 50 MOHM SMD |
2,165 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

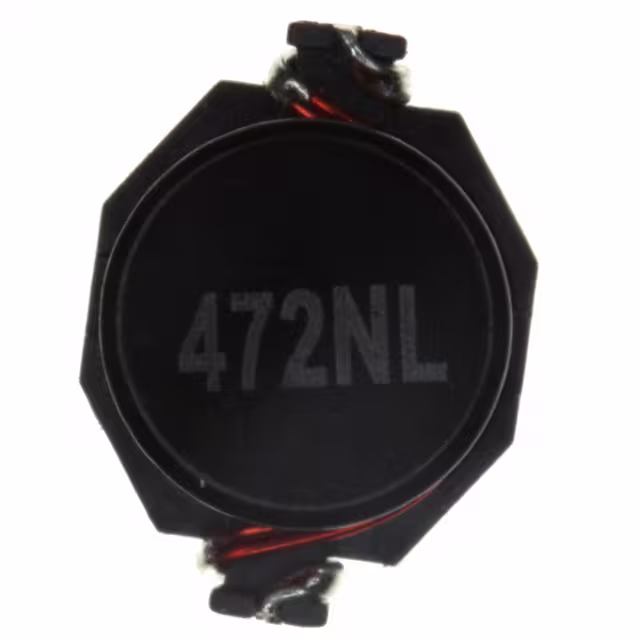

P0751.472NLTFIXED IND 4.7UH 4.8A 33 MOHM SMD |
1,607 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 4.8 A | 5.4A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
UP1B-101-RFIXED IND 100UH 470MA 1.11OHM SM |
1,198 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 470 mA | 530mA | Unshielded | 1.11Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
IHLP2525AHERR68M01FIXED IND 680NH 9A 13.9 MOHM SMD |
976 | - |
|
Datasheet | IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 9 A | 17A | Shielded | 13.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
|
WTX322512TAR47MTFIXED IND 0.4720%UH 0.020OHM 900 |
640 | - |
|
Datasheet | WT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 6.1 A | 9A | Unshielded | 24mOhm Max | - | 80MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SPM10040T-3R3MFIXED IND 3.3UH 9.8A 11 MOHM SMD |
557 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 9.8 A | 11A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
B82472G6332M000FIXED IND 3.3UH 2.85A 23MOHM SMD |
450 | - |
|
Datasheet | B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.85 A | 2.5A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDR6D28MNNP-470NCFIXED IND 47UH 720MA 458.8 MOHM |
57,416 | - |
|
Datasheet | CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±25% | 720 mA | 1.05A | Shielded | 458.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
