Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD |
2,120 | - |
|
Datasheet | MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|

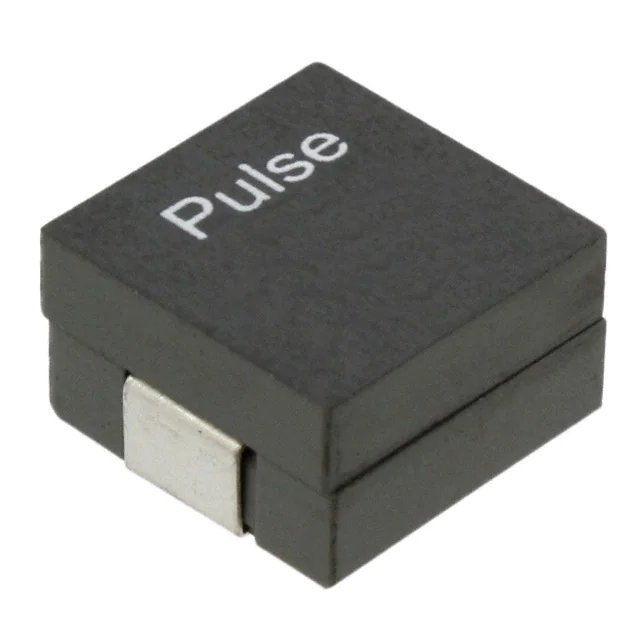

PA0513.441NLTFIXED IND 440NH 30A 0.32MOHM SMD |
1,743 | - |
|
Datasheet | PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 440 nH | ±20% | 30 A | 35A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
B82464P4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD |
1,333 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.3 A | 4.6A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
CDEP147NP-8R0MC-125FIXED IND 8UH 11A 7.8 MOHM SMD |
1,162 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 11 A | 10A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
B82464P4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD |
464 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
5900-100-RCFIXED IND 10UH 4.7A 19 MOHM TH |
18,184 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 4.7 A | 8.7A | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
74438356018HTFIXED IND 1.8UH 4.6A 29.9MOHM SM |
5,180 | - |
|
Datasheet | WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 4.6 A | 6.2A | Shielded | 29.9mOhm Max | - | 37.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
P1174.103NLTFIXED IND 10UH 800MA 73 MOHM SMD |
5,056 | - |
|
Datasheet | P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 800mA | Shielded | 73mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
74438356033HTFIXED IND 3.3UH 3.6A 51.8MOHM SM |
3,887 | - |
|
Datasheet | WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.6 A | 4.8A | Shielded | 51.8mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
5900-222-RCFIXED IND 2.2MH 500MA 1.7 OHM TH |
3,851 | - |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 500 mA | 560mA | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
74438356010HTFIXED IND 1UH 7.2A 15.5MOHM SMD |
1,892 | - |
|
Datasheet | WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7.2 A | 6.5A | Shielded | 15.5mOhm Max | - | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560056HTFIXED IND 560NH 8.2A 8.6MOHM SMD |
1,332 | - |
|
Datasheet | WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 8.2 A | 9.55A | Shielded | 8.6mOhm Max | - | 72MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
FP1308R3-R32-RFIXED IND 320NH 68A 0.18MOHM SMD |
8,970 | - |
|
Datasheet | FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±10% | 68 A | 52A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
ETQ-P5MR68YLCFIXED IND 680NH 31.5A 1.93 MOHM |
1,665 | - |
|
Datasheet | PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 31.5 A | 42A | Shielded | 1.93mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
DRA74-680-RFIXED IND 68UH 996MA 286MOHM SMD |
1,520 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 996 mA | 1.108A | Shielded | 286mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
7447783220FIXED IND 22UH 1.75A 115MOHM SMD |
1,151 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.75 A | 2.15A | Shielded | 115mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
SLF12565T-471MR70-HFIXED IND 470UH 750MA 924MOHM SM |
980 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 750 mA | 700mA | Shielded | 924mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
7447783221FIXED IND 220UH 540MA 1.04OHM SM |
891 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 540 mA | 690mA | Shielded | 1.04Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82464P4474M000FIXED IND 470UH 500MA 930MOHM SM |
720 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
PA4346.102ANLTFIXED IND 1UH 27A 1.9 MOHM SMD |
3,945 | - |
|
Datasheet | PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 27 A | 34A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
