Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447715002FIXED IND 2.5UH 6.8A 11 MOHM SMD |
453 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.8 A | 8.5A | Shielded | 11mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74477126FIXED IND 680UH 550MA 1.2OHM SMD |
453 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 550 mA | 680mA | Shielded | 1.2Ohm Max | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
784775122FIXED IND 22UH 1.76A 110MOHM SMD |
452 | - |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.76 A | 1.81A | Unshielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775112FIXED IND 12UH 2.18A 80 MOHM SMD |
370 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.18 A | 2.2A | Unshielded | 80mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744771139FIXED IND 39UH 2.49A 68 MOHM SMD |
362 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 2.49 A | 2.74A | Shielded | 68mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
744775318FIXED IND 18MH 80MA 72 OHM SMD |
345 | - |
|
Datasheet | WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 80 mA | 50mA | Unshielded | 72Ohm Max | - | 400kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
|
744775133FIXED IND 33UH 1.35A 130MOHM SMD |
339 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.35 A | 1.47A | Unshielded | 130mOhm Max | - | 14.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
74477128FIXED IND 820UH 510MA 1.34OHM SM |
301 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 510 mA | 600mA | Shielded | 1.34Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
744771239FIXED IND 390UH 680MA 690MOHM SM |
191 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 680 mA | 850mA | Shielded | 690mOhm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
FP1208R1-R21-RFIXED IND 210NH 50A 0.29MOHM SMD |
162 | - |
|
Datasheet | FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±10% | 50 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
74454010FIXED IND 10UH 2A 0.065OHM SMD |
2,741 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 2 A | 3.2A | Shielded | 65mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
74454168FIXED IND 68UH 820MA 0.34OHM SMD |
1,515 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±15% | 820 mA | 1.35A | Shielded | 340mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
74454147FIXED IND 47UH 1A 0.19OHM SMD |
880 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±15% | 1 A | 1.4A | Shielded | 190mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

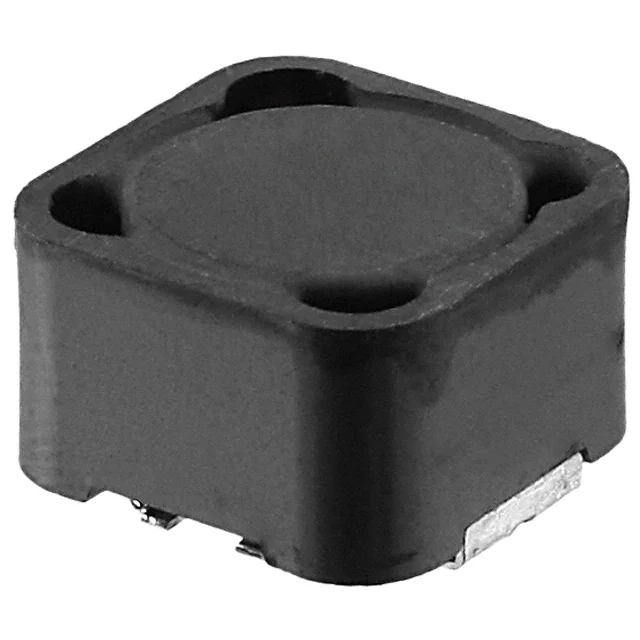

P1173.223NLTFIXED IND 22UH 3.8A 42 MOHM SMD |
836 | - |
|
Datasheet | P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
IHLP2525EZER1R5M01FIXED IND 1.5UH 12A 9 MOHM SMD |
485 | - |
|
Datasheet | IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 12 A | 12A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
CLF12555T-4R7N-DFIXED IND 4.7UH 5.3A 15.2MOHM SM |
232 | - |
|
Datasheet | CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.3 A | 9.6A | Shielded | 15.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|

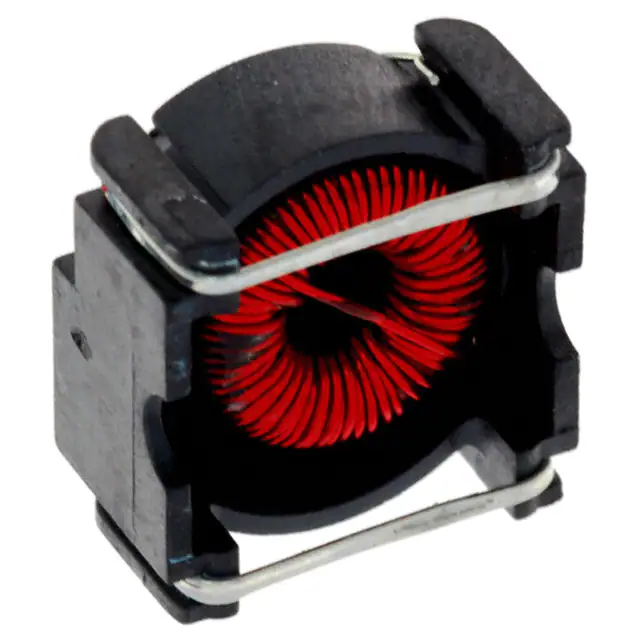

PE-53822SNLFIXED IND 54UH 1A 200 MOHM SMD |
170 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
83223CFIXED IND 22UH 500MA 350MOHM SMD |
3,349 | - |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22 µH | ±20% | 500 mA | 740mA | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83103CFIXED IND 10UH 750MA 185MOHM SMD |
2,441 | - |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±20% | 750 mA | 1.04A | Unshielded | 185mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|

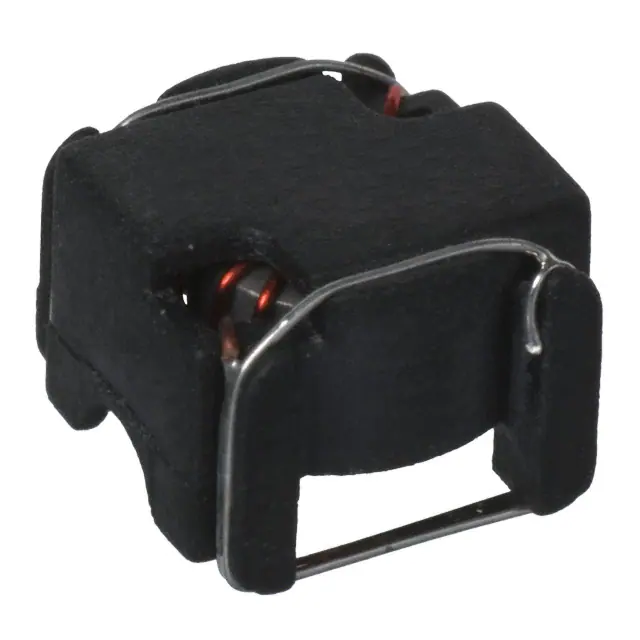

PE-53630NLFIXED IND 1.01UH 3.4A 11MOHM SMD |
1,964 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 1.01 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
