Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-129FIXED IND 6.8UH 900MA 132MOHM SM |
194 | - |
|
Datasheet | - | Nonstandard | Bag | Not For New Designs | - | - | 6.8 µH | ±20% | 900 mA | - | Unshielded | 132mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PA2729.603NLFIXED IND 60.3UH 5.1A 31.5 MOHM |
1,012 | - |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 60.3 µH | ±15% | 5.1 A | 6.2A | Shielded | 31.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.602NLFIXED IND 6UH 14.4A 4.4 MOHM SMD |
389 | - |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 6 µH | ±15% | 14.4 A | 19.6A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

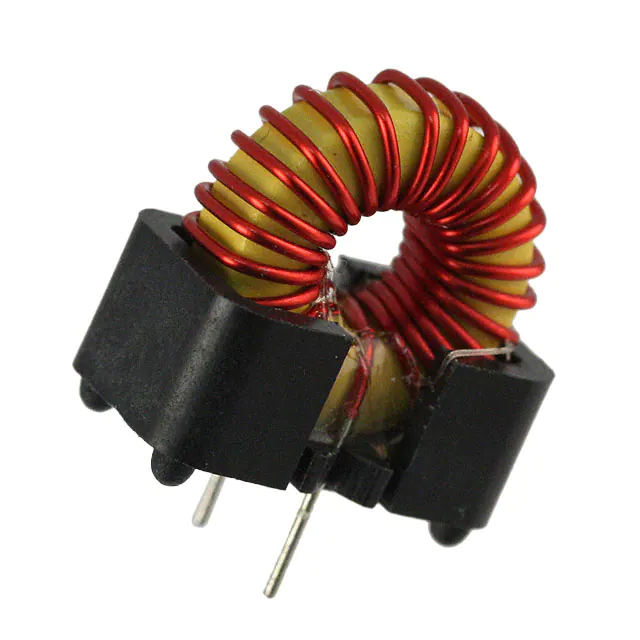

PE-92100KNLFIXED IND 25UH 2.6A 43 MOHM TH |
247 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 2.6 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.650" (16.51mm) |
|
HCF1007-4R7-RFIXED IND 4.7UH 9.4A 8.65MOHM SM |
15,775 | - |
|
Datasheet | HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.4 A | 12A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
PE-53829SNLFIXED IND 112UH 1.26A 300MOHM SM |
4,233 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
WTH0415TR33MTR01FIXED IND 0.3320%UH 0.004OHM 145 |
2,834 | - |
|
Datasheet | WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 13.9 A | 14A | Unshielded | 4.8mOhm Max | - | 83MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
PE-53933SNLFIXED IND 24UH 2.74A 70 MOHM SMD |
940 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
EXL1V1010-4R7-RINDUCTOR MOLDED 4.7UH 21.4A |
315 | - |
|
Datasheet | EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 24 A | 21.4A | Shielded | 5.7mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
|
PE-53933SNLTFIXED IND 24UH 2.74A 70 MOHM SMD |
497 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
MPCG1040LR36FIXED IND 360NH 25A 1.05MOHM SMD |
3,001 | - |
|
Datasheet | MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 25 A | 30A | Shielded | 1.05mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
P1330R-105KFIXED IND 1MH 105MA 11.16OHM SMD |
1,384 | - |
|
Datasheet | P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 105 mA | 22mA | Unshielded | 11.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
P1330R-104KFIXED IND 100UH 347MA 1.68OHM SM |
975 | - |
|
Datasheet | P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 347 mA | 132mA | Unshielded | 1.68Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
MPCG1040LR88FIXED IND 880NH 17A 2.3 MOHM SMD |
818 | - |
|
Datasheet | MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 880 nH | ±20% | 17 A | 19A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
7687709471FIXED IND 470UH 970MA 800MOHM SM |
1,961 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 970 mA | 1.4A | Shielded | 800mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
7447798181FIXED IND 18UH 5A 34.4 MOHM SMD |
1,274 | - |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 18 µH | ±20% | 5 A | 3.8A | Shielded | 34.4mOhm Max | - | 18MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798910FIXED IND 9.1UH 7.35A 14.35 MOHM |
1,118 | - |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 9.1 µH | ±30% | 7.35 A | 5.4A | Shielded | 14.35mOhm Max | - | 27MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7687709221FIXED IND 220UH 1.3A 350MOHM SMD |
932 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.3 A | 2A | Shielded | 350mOhm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7687709222FIXED IND 2.2MH 430MA 3.7OHM SMD |
917 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 430 mA | 650mA | Shielded | 3.7Ohm Max | - | 800kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7447798131FIXED IND 13UH 5.85A 22.5MOHM SM |
888 | - |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 13 µH | ±20% | 5.85 A | 4.5A | Shielded | 22.5mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
