Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2322-V-RCFIXED IND 680UH 3.4A 150 MOHM TH |
507 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 680 µH | ±15% | 3.4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2316-H-RCFIXED IND 220UH 5.8A 54 MOHM TH |
360 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 5.8 A | - | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2303-H-RCFIXED IND 15UH 18A 6 MOHM TH |
350 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 15 µH | ±15% | 18 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2301-H-RCFIXED IND 10UH 20A 5 MOHM TH |
323 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 20 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2311-V-RCFIXED IND 68UH 7.7A 30 MOHM TH |
254 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 68 µH | ±15% | 7.7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2305-H-RCFIXED IND 22UH 16.4A 7 MOHM TH |
185 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 16.4 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2313-H-RCFIXED IND 120UH 6.7A 40 MOHM TH |
180 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 6.7 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2307-H-RCFIXED IND 33UH 11.7A 13 MOHM TH |
180 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 11.7 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2323-H-RCFIXED IND 820UH 2.6A 270 MOHM TH |
162 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 820 µH | ±15% | 2.6 A | - | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2317-V-RCFIXED IND 270UH 5.5A 60 MOHM TH |
149 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 270 µH | ±15% | 5.5 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2320-H-RCFIXED IND 470UH 3.8A 130 MOHM TH |
145 | - |
|
Datasheet | 2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2310-V-RCFIXED IND 56UH 10.2A 17 MOHM TH |
126 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 10.2 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2316-V-RCFIXED IND 220UH 5.8A 54 MOHM TH |
107 | - |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 5.8 A | - | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

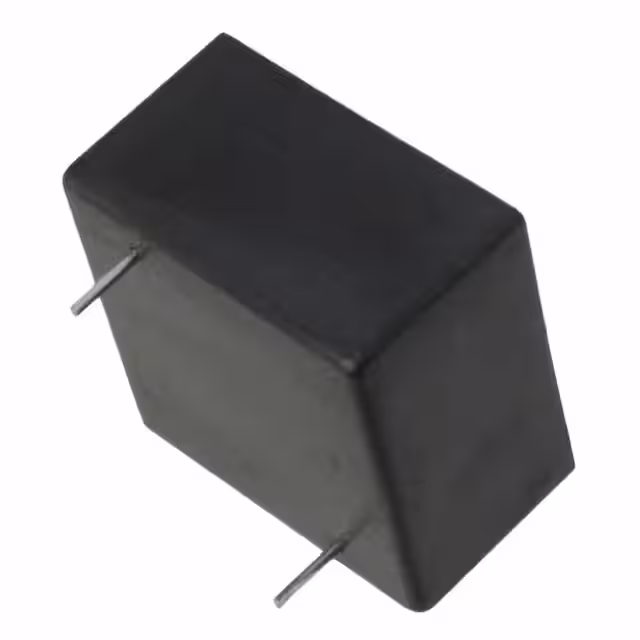

PE-53830NLFIXED IND 77UH 1.54A 200 MOHM TH |
430 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PG1083.153NLFIXED IND 15.2UH 14A 9.2MOHM SMD |
871 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 15.2 µH | ±20% | 14 A | 18.5A | Unshielded | 9.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PM4344.103NLTFIXED IND 10UH 16.5A 13MOHM SMD |
1,476 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 24A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
2212-V-RCFIXED IND 100UH 4.4A 56 MOHM TH |
763 | - |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 4.4 A | - | Shielded | 56mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
78439346150WE-XHMA SMT POWER INDUCTOR 6060; |
657 | - |
|
Datasheet | WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 4.2 A | 7.4A | Shielded | 42mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
PQ2617BHA-6R8KFIXED IND 6.8UH 28A 2.5 MOHM SMD |
557 | - |
|
Datasheet | PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 28 A | 45A | Shielded | 2.5mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
|
78439346068WE-XHMA SMT POWER INDUCTOR 6060; |
428 | - |
|
Datasheet | WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.5 A | 11.3A | Shielded | 17.6mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
