Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402-2N0KFIXED IND 2NH 1.04A 70 MOHM SMD |
1,444 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-2N2KFIXED IND 2.2NH 960MA 70MOHM SMD |
3,993 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | 960 mA | - | Unshielded | 70mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-3N6KFIXED IND 3.6NH 840MA 66MOHM SMD |
2,632 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.6 nH | ±10% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-10NKFIXED IND 10NH 680MA 195MOHM SMD |
4,185 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 10 nH | ±10% | 680 mA | - | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-12NKFIXED IND 12NH 640MA 120MOHM SMD |
4,027 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 12 nH | ±10% | 640 mA | - | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-15NKFIXED IND 15NH 560MA 172MOHM SMD |
2,579 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 560 mA | - | Unshielded | 172mOhm Max | 24 @ 250MHz | 3.28GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|

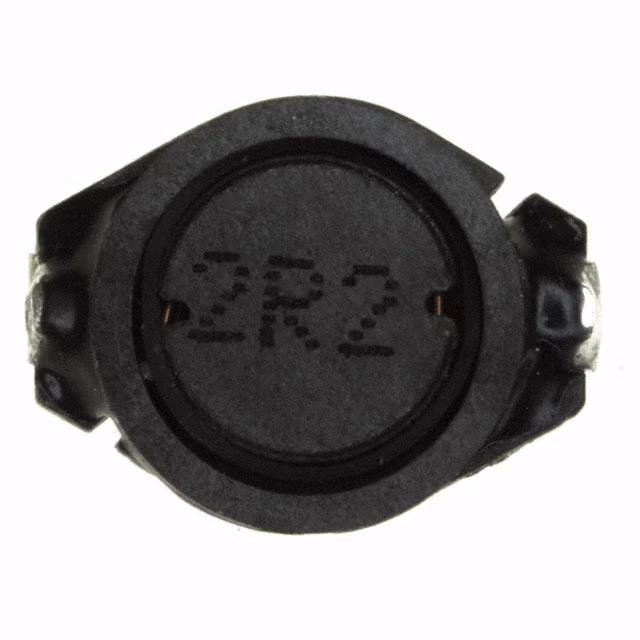

SDS130R-222NFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,462 | - |
|
Datasheet | SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
|
SDS130-224MFIXED IND 220UH 400MA 2.7OHM SMD |
4,917 | - |
|
Datasheet | SDS130 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | - | Shielded | 2.7Ohm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
3225R-182KFIXED IND 1.8UH 454MA 900MOHM SM |
3,160 | - |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±10% | 454 mA | - | Unshielded | 900mOhm Max | 25 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
|
|
3225R-682KFIXED IND 6.8UH 321MA 1.8OHM SMD |
3,217 | - |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±10% | 321 mA | - | Unshielded | 1.8Ohm Max | 25 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
