Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

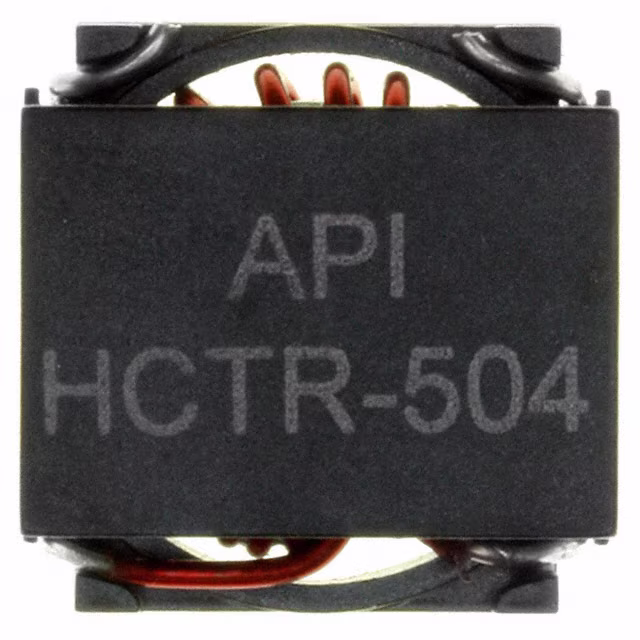

HCTR-504FIXED IND 17UH 5.37A 17 MOHM SMD |
2,781 | - |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17 µH | ±25% | 5.37 A | - | Shielded | 17mOhm Max | 22 @ 100kHz | 29MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

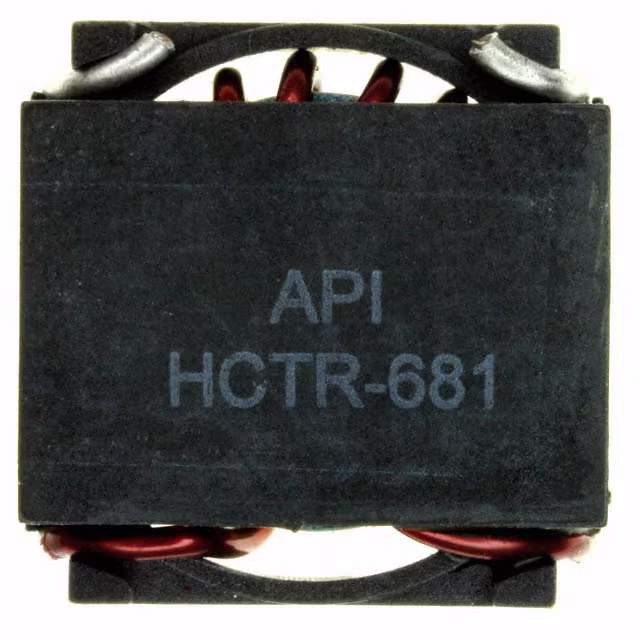

HCTR-681FIXED IND 10.5UH 13.2A 6.2 MOHM |
3,044 | - |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 10.5 µH | ±25% | 13.2 A | - | Shielded | 6.2mOhm Max | 35 @ 100kHz | 30MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|

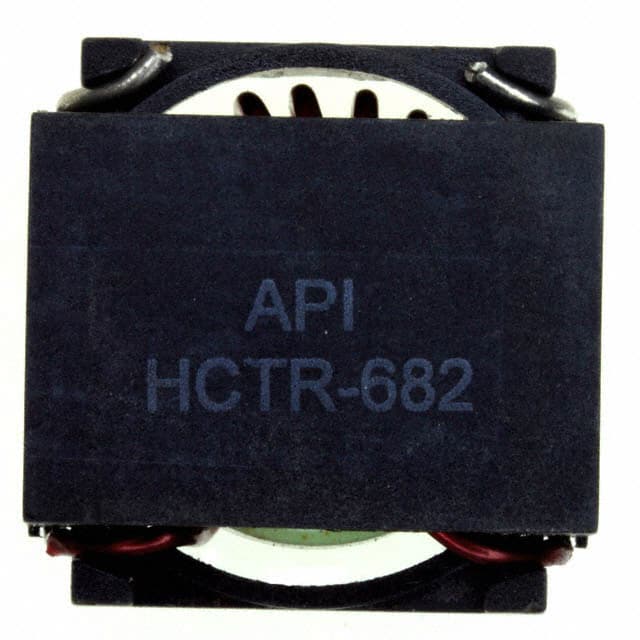

HCTR-682FIXED IND 17.6UH 9.32A 12.3 MOHM |
1,875 | - |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17.6 µH | ±25% | 9.32 A | - | Shielded | 12.3mOhm Max | 35 @ 100kHz | 24MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
HCTR-683FIXED IND 22UH 7.87A 17.5MOHM SM |
3,246 | - |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±25% | 7.87 A | - | Shielded | 17.5mOhm Max | 30 @ 100kHz | 21MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
S1008-391KFIXED IND 390NH 840MA 160MOHM SM |
4,635 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 390 nH | ±10% | 840 mA | - | Shielded | 160mOhm Max | 40 @ 25MHz | 278MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-911KFIXED IND 910NH 685MA 240MOHM SM |
2,303 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 910 nH | ±10% | 685 mA | - | Shielded | 240mOhm Max | 40 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-272KFIXED IND 2.7UH 365MA 850MOHM SM |
4,611 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±10% | 365 mA | - | Shielded | 850mOhm Max | 30 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-332KFIXED IND 3.3UH 355MA 900MOHM SM |
3,147 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 355 mA | - | Shielded | 900mOhm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-223KFIXED IND 22UH 170MA 6 OHM SMD |
4,904 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 170 mA | - | Shielded | 6Ohm Max | 30 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-273KFIXED IND 27UH 160MA 7 OHM SMD |
2,080 | - |
|
Datasheet | S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 160 mA | - | Shielded | 7Ohm Max | 30 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
