Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC630-394KFIXED IND 390UH 1.66A 342MOHM TH |
3,580 | - |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 390 µH | ±10% | 1.66 A | 3.4A | Unshielded | 342mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-474KFIXED IND 470UH 1.58A 377MOHM TH |
1,608 | - |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 1.58 A | 3.1A | Unshielded | 377mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-564KFIXED IND 560UH 1.52A 408MOHM TH |
4,301 | - |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 560 µH | ±10% | 1.52 A | 2.9A | Unshielded | 408mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-684KFIXED IND 680UH 1.42A 468MOHM TH |
3,684 | - |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 680 µH | ±10% | 1.42 A | 2.6A | Unshielded | 468mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

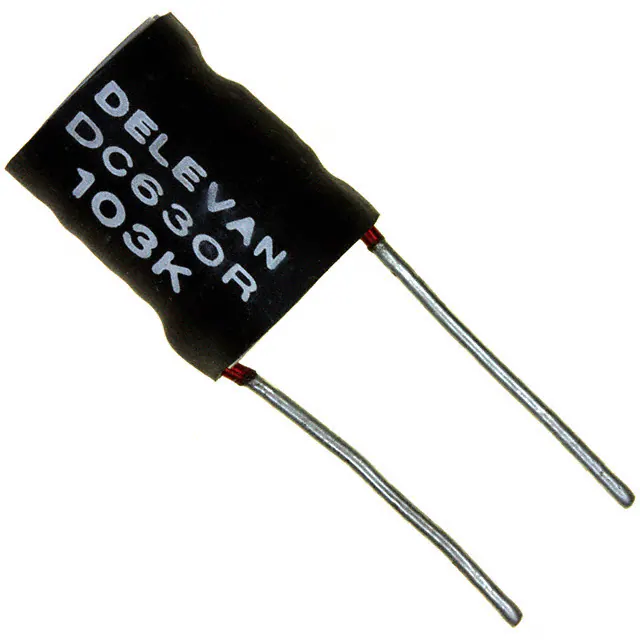

DC630R-103KFIXED IND 10UH 9.5A 10 MOHM TH |
4,515 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9.5 A | 21.5A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

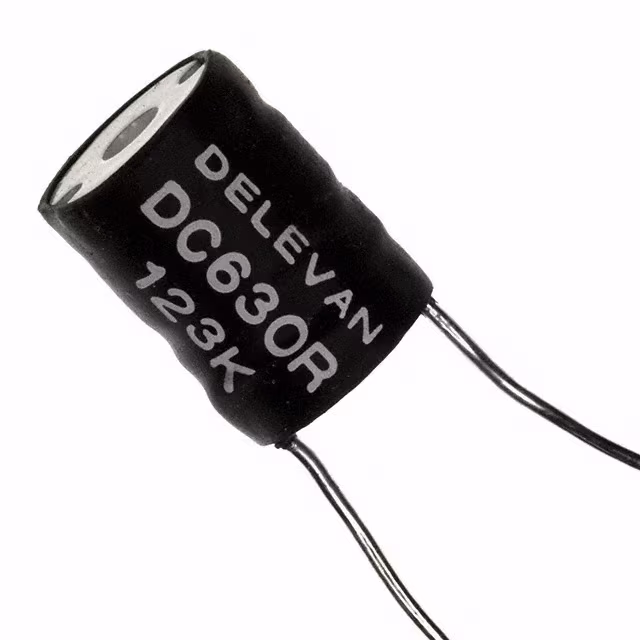

DC630R-123KFIXED IND 12UH 9.1A 11 MOHM TH |
2,524 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 9.1 A | 19.5A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

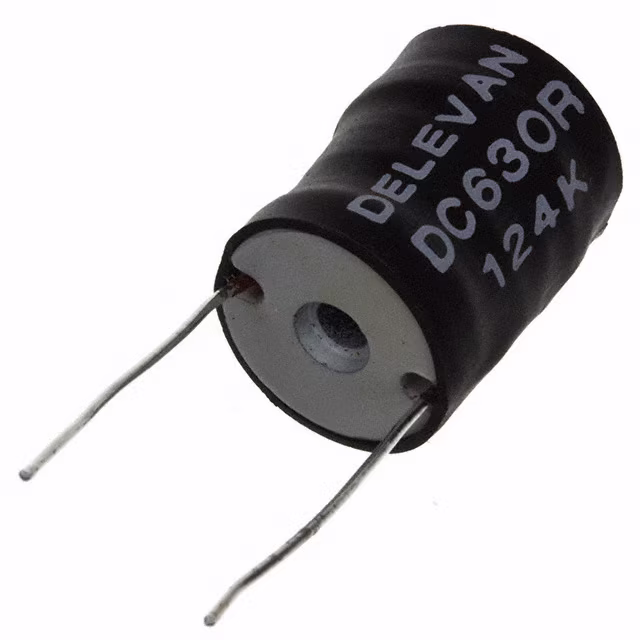

DC630R-124KFIXED IND 120UH 3.12A 100MOHM TH |
2,076 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 3.12 A | 6.2A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

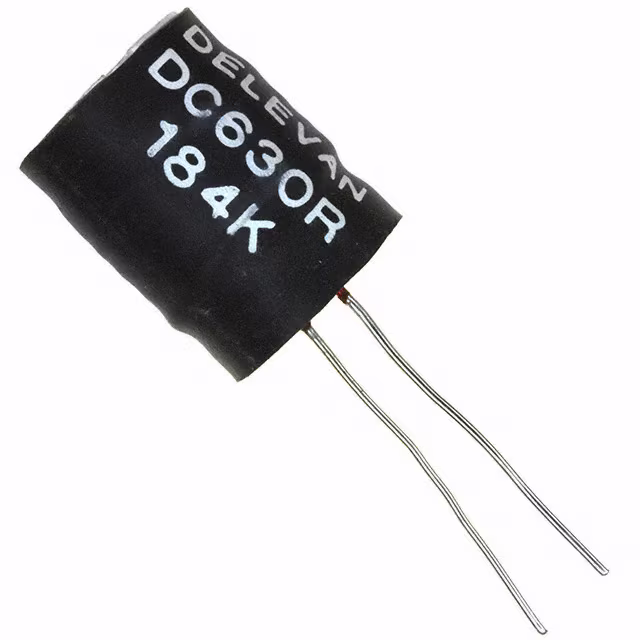

DC630R-184KFIXED IND 180UH 2.8A 125 MOHM TH |
1,808 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2.8 A | 5.1A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

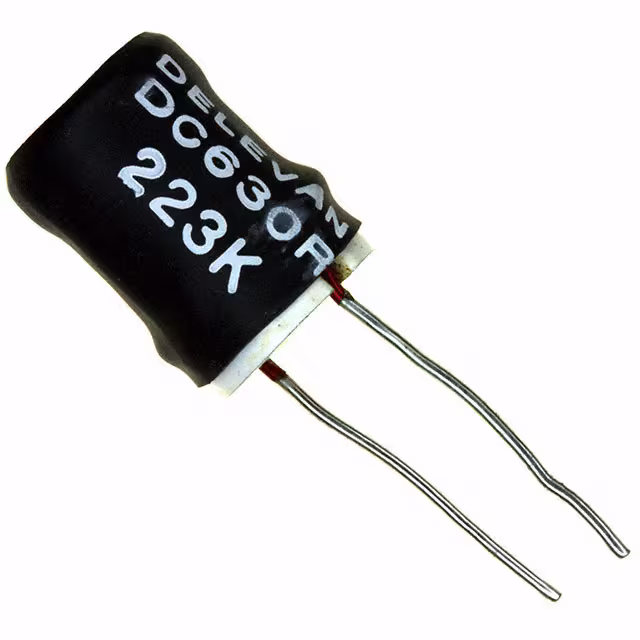

DC630R-223KFIXED IND 22UH 6.26A 25 MOHM TH |
1,812 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 6.26 A | 14.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

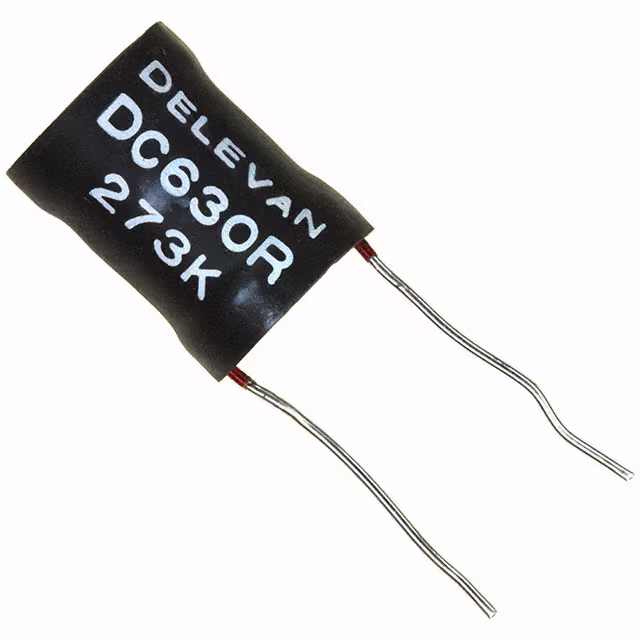

DC630R-273KFIXED IND 27UH 5.72A 30 MOHM TH |
2,638 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5.72 A | 13.2A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
