Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M83446/39-39FFIXED IND 15UH 283MA 2.5 OHM SMD |
308 | - |
|
Datasheet | Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 283 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.5MHz | 17MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
8532R-25LFIXED IND 100UH 1.3A 208MOHM SMD |
1,254 | - |
|
Datasheet | 8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.3 A | 640mA | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|
2474R-39LFIXED IND 1.5MH 340MA 3 OHM TH |
2,025 | - |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 1.5 mH | ±15% | 340 mA | 160mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
DC780R-154KFIXED IND 150UH 4A 98 MOHM TH |
962 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | 8.9A | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780R-332LFIXED IND 3.3UH 11.4A 5 MOHM TH |
177 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±15% | 11.4 A | 60A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|

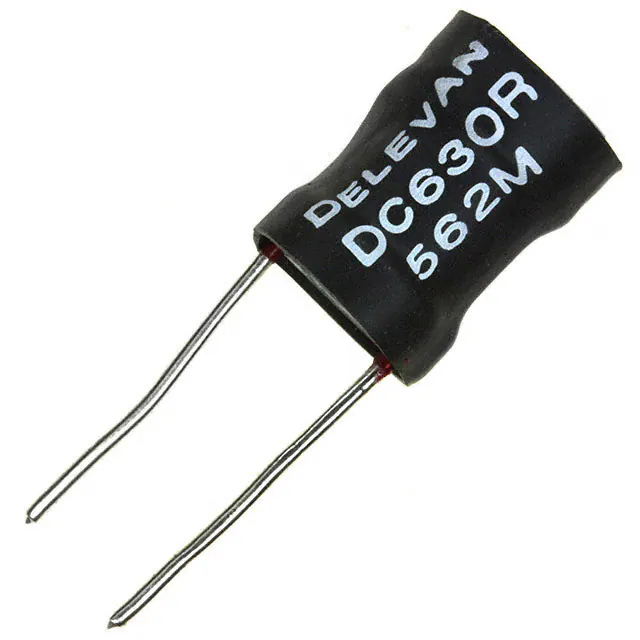

DC630R-562MFIXED IND 5.6UH 11.7A 7 MOHM TH |
307 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 11.7 A | 29A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

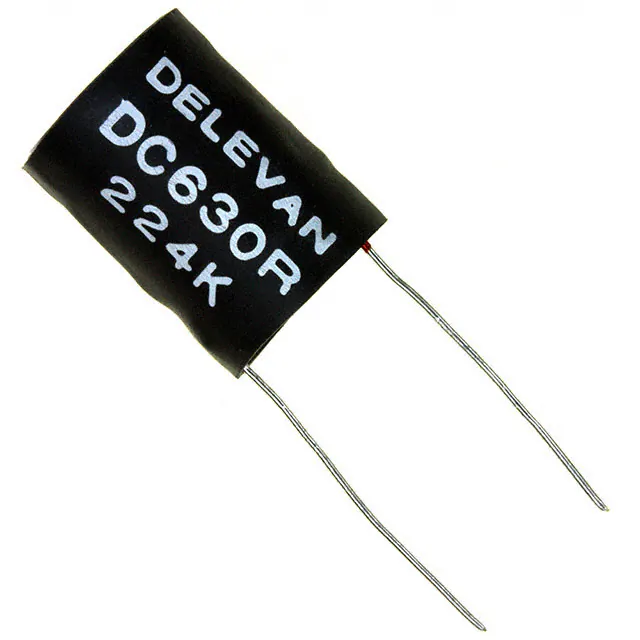

DC630R-224KFIXED IND 220UH 2.42A 168MOHM TH |
1,052 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.42 A | 4.6A | Unshielded | 168mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

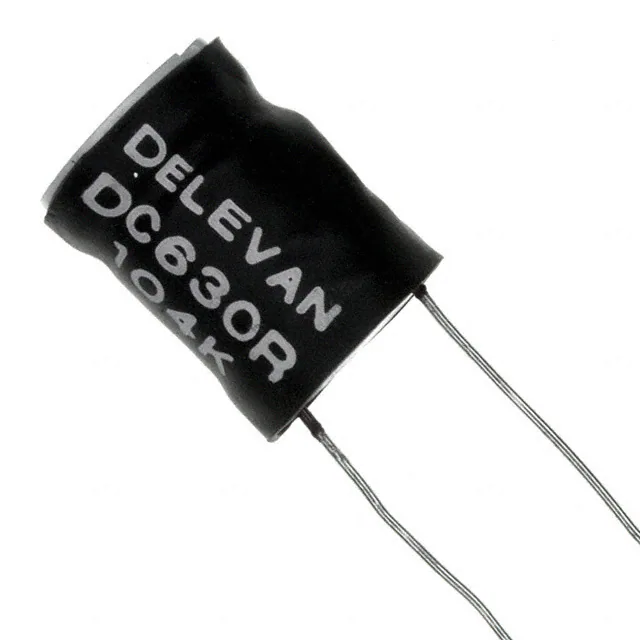

DC630R-104KFIXED IND 100UH 3.21A 95 MOHM TH |
864 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3.21 A | 6.8A | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
5500R-126KFIXED IND 12MH 330MA 9.34OHM SMD |
868 | - |
|
Datasheet | 5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 330 mA | 160mA | Unshielded | 9.34Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
DC780R-184KFIXED IND 180UH 4A 110 MOHM TH |
384 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 4 A | 8.1A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
