Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1130-220K-RCFIXED IND 22UH 13.5A 11 MOHM TH |
145 | - |
|
Datasheet | 1130 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 13.5 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
DC630R-682MFIXED IND 6.8UH 10.5A 8 MOHM TH |
1,615 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 10.5 A | 26A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
IHDF1300AEEH4R7K1AFIXED IND 4.7UH 59A 1.11MOHM TH |
120 | - |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 59 A | 92A | Unshielded | 1.11mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
|
1130-561K-RCFIXED IND 560UH 4A 205 MOHM TH |
592 | - |
|
Datasheet | 1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 4 A | - | Unshielded | 205mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
M27/367-21FIXED IND 10UH 2.36A 71 MOHM SMD |
483 | - |
|
Datasheet | Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-12FIXED IND 1.8UH 4.34A 21MOHM SMD |
217 | - |
|
Datasheet | Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±15% | 4.34 A | 4.34A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
5717-RCFIXED IND 500UH 4A 150 MOHM TH |
158 | - |
|
Datasheet | 5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±15% | 4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|
DC630R-473KFIXED IND 47UH 3.98A 62 MOHM TH |
195 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.98 A | 10A | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
PQ3218-6R0-50-TFIXED IND 6UH 50A 1.5 MOHM TH |
802 | - |
|
Datasheet | PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 6 µH | - | 50 A | 57A | Unshielded | 1.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

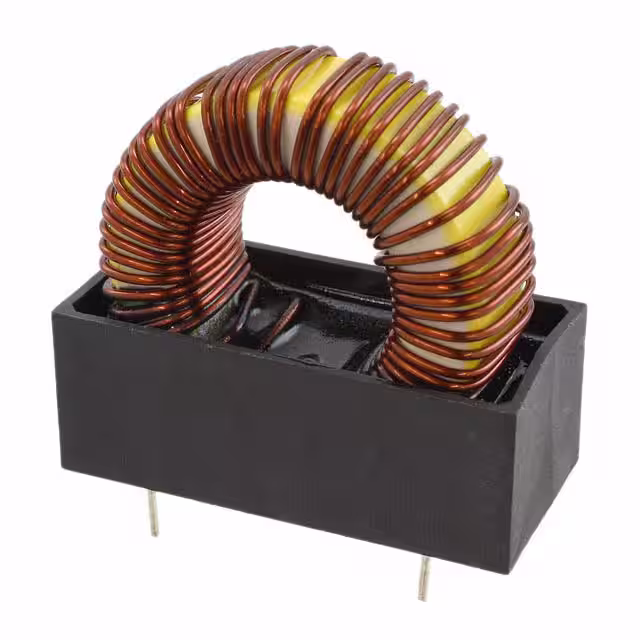

PE-51517NLFIXED IND 175UH 6A 68 MOHM TH |
205 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 175 µH | - | 6 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
HC3-1R0-RFIXED IND 1UH 78A 0.42 MOHM SMD |
304 | - |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 78 A | 78A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
IHDM1008BCEV4R7M30FIXED IND 4.7UH 45A 0.95 MOHM TH |
541 | - |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 62 A | 100A | Unshielded | 0.95mOhm Max | - | 35MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
CL1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
475 | - |
|
Datasheet | CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|
HC3-R50-RFIXED IND 500NH 78A 0.42MOHM SMD |
1,153 | - |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±20% | 78 A | 120A | Unshielded | 0.42mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.709" (18.00mm) |
|
1140-680K-RCFIXED IND 68UH 11.4A 21 MOHM TH |
422 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 11.4 A | 25.2A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-180K-RCFIXED IND 18UH 17.2A 8 MOHM TH |
163 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 17.2 A | 49.2A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-822K-RCFIXED IND 8.2MH 1.2A 1.95 OHM TH |
128 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 1.2 A | 2.3A | Unshielded | 1.95Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
.JPG "ER1025-52KR")
|
ER1025-52KRFIXED IND 22UH 140MA 3.3 OHM TH |
202 | - |
|
Datasheet | Military, MIL-PRF-39010/09, ER1025 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHDM1008BCEV2R2M3AIHDM1008BC-3A 2.2 UH 20% EV |
919 | - |
|
Datasheet | IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 70 A | 110A | Unshielded | 0.4mOhm Max | - | 45MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
|
5721-RCFIXED IND 250UH 8A 41 MOHM TH |
224 | - |
|
Datasheet | 5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 8 A | - | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
