Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0601.183NLTFIXED IND 18UH 800MA 210MOHM SMD |
4,490 | - |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 800 mA | 800mA | Shielded | 210mOhm Max | - | 23MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.274NLTFIXED IND 270UH 220MA 3 OHM SMD |
4,025 | - |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 220 mA | 220mA | Shielded | 3Ohm Max | - | 5.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.123NLTFIXED IND 12UH 1A 140 MOHM SMD |
1,657 | - |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1 A | 1A | Shielded | 140mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.103NLTFIXED IND 10UH 1.1A 135 MOHM SMD |
3,209 | - |
|
Datasheet | PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Shielded | 135mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
PF0581.123NLTFIXED IND 12UH 2.3A 48 MOHM SMD |
2,072 | - |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±10% | 2.3 A | 2.3A | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PF0581.823NLTFIXED IND 82UH 850MA 262MOHM SMD |
3,737 | - |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | 850 mA | 850mA | Unshielded | 262mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|

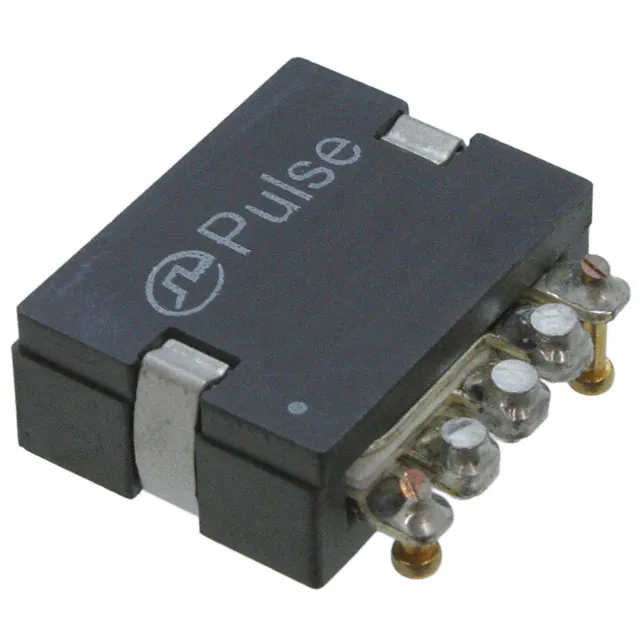

PA1294.910NLTFIXED IND 910NH 39A 0.48MOHM SMD |
3,469 | - |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 910 nH | ±15% | 39 A | 46A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.650NLTFIXED IND 650NH 54A 0.48MOHM SMD |
1,135 | - |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 650 nH | ±15% | 54 A | 63A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.132NLTFIXED IND 1.3UH 25A 0.48MOHM SMD |
2,268 | - |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 29A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0465.104NLTFIXED IND 100UH 650MA 350MOHM SM |
2,936 | - |
|
Datasheet | PF0465NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 650 mA | 650mA | Shielded | 350mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.205" (5.20mm) |
|
|
PF0581.184NLTFIXED IND 180UH 560MA 620MOHM SM |
2,877 | - |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 560 mA | 560mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PF0580.223NLTFIXED IND 22UH 750MA 280MOHM SMD |
4,575 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 750 mA | 750mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLTFIXED IND 3.8UH 1.7A 68 MOHM SMD |
1,247 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
P0467NLTFIXED IND 422.5UH 300MA 1.185OHM |
3,511 | - |
|
Datasheet | Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 422.5 µH | ±15% | 300 mA | - | Shielded | 1.185Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PF0580.683NLTFIXED IND 68UH 410MA 827MOHM SMD |
4,814 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 410 mA | 410mA | Unshielded | 827mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

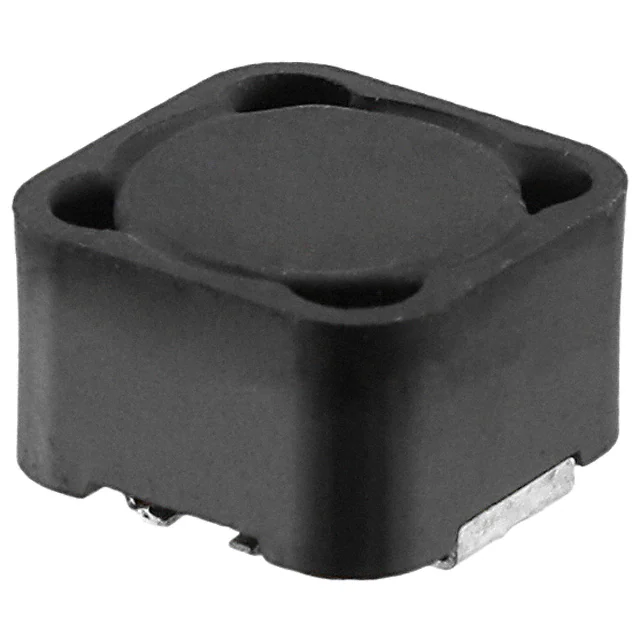

P1172.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
4,537 | - |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
PG0138.472NLTFIXED IND 4.7UH 10.2A 12.4 MOHM |
3,243 | - |
|
Datasheet | PG0138NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.2 A | 10.2A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.193" (4.90mm) |
|
P1171.334NLTFIXED IND 330UH 820MA 620MOHM SM |
1,604 | - |
|
Datasheet | P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 820 mA | 820mA | Shielded | 620mOhm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
PG0006.462NLTFIXED IND 4.6UH 9A 10.4 MOHM SMD |
1,293 | - |
|
Datasheet | PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.6 µH | ±20% | 9 A | 9A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
|
PA2083.121NLTFIXED IND 120NH 27A 0.6 MOHM SMD |
4,651 | - |
|
Datasheet | PA2083NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 27 A | 55A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
