Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

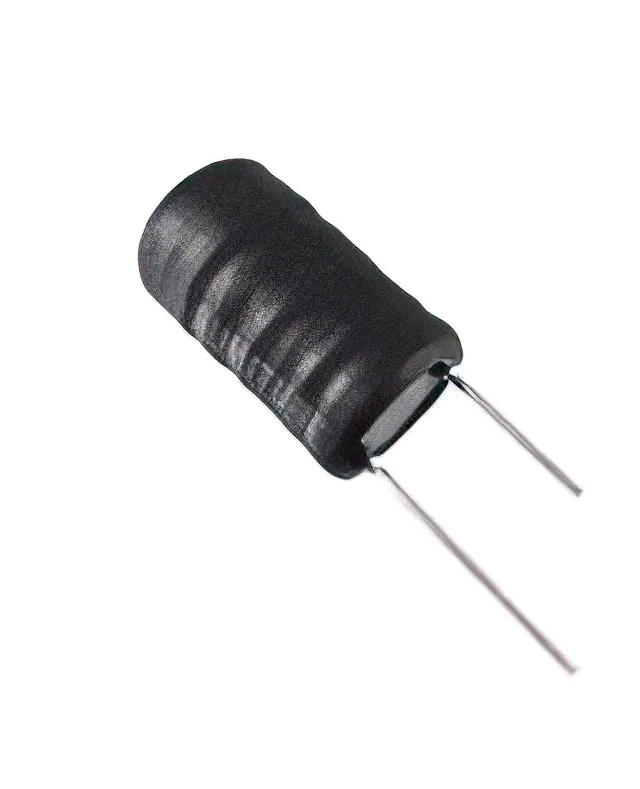

CTRL5480F-4-102K1000UH RADIAL FIXED INDUCTR |
2,612 | - |
|
Datasheet | CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 490 mA | 880mA | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
CTDAT1415F-100MSMD SHLD PWR INDUCTOR FOR DIG AM |
4,282 | - |
|
Datasheet | CTDAT1415F | Vertical, 4 PC Pin | Bulk | Active | - | - | 10 µH | ±20% | 8 A | 13A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
CTHR15F-500K50UH FILTER INDUCTOR |
3,690 | - |
|
Datasheet | CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 15 A | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.000" Dia (25.40mm) | 1.625" (41.28mm) |
|
CTDR3F-821K820UH RADIAL DRUM CORE INDUCTOR |
4,506 | - |
|
Datasheet | CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 820 µH | ±10% | - | 2.8A | Unshielded | 288mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
CTSFW1890F-6R8MSMD FLAT WIRE POWER INDUCTOR |
4,089 | - |
|
Datasheet | CTSFW1890F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18.5 A | 28A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
CTSFW1890F-100MSMD FLAT WIRE POWER INDUCTOR |
3,887 | - |
|
Datasheet | CTSFW1890F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 15 A | 21.5A | Shielded | 7.6mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
CTDR5F-152KRADIAL LEADED DRUM CORE INDUCTOR |
4,604 | - |
|
Datasheet | CTDR5F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 mH | ±10% | 5.5 A | 5A | Unshielded | 274mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.449" (36.80mm) |
|
L101374SP-26RESONANT INDUCTOR 33UH 20.5A 6M |
3,734 | - |
|
Datasheet | L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 33 µH | ±10% | 28 A | 16.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|
|
L101374SP-25RESONANT INDUCTOR 22UH 32.5A 6M |
4,574 | - |
|
Datasheet | L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 22 µH | ±10% | 28 A | 26.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|
|
L101374SP-24RESONANT INDUCTOR 18UH 40A 6M |
2,669 | - |
|
Datasheet | L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 18 µH | ±10% | 28 A | 32A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|
CL01JTQ10N-SFIXED IND 10NH 160MA 800MOHM SMD |
15,000 | - |
|
Datasheet | CL-S | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 160 mA | - | Unshielded | 800mOhm Max | 13 @ 500MHz | 3.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.014" (0.35mm) |
|
PCSAU127-560M-RC56UH, POWER INDUCTOR |
2,336 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | - | 4.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTS4F-223K22000UH XIALSHIELDED INDUCTR |
2,258 | - |
|
Datasheet | CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 22 mH | ±10% | 40 mA | 9mA | Shielded | 145Ohm Max | 50 @ 79kHz | 570kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-821K820UH XIALSHIELDED INDUCTOR |
3,284 | - |
|
Datasheet | CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±10% | 151 mA | 45mA | Shielded | 10Ohm Max | 70 @ 790kHz | 4.8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTS7F-224KAXIAL LEADED SHIELDED INDUCTOR |
4,644 | - |
|
Datasheet | CTS7F | Axial | Bulk | Active | - | - | 220 mH | ±10% | 27 mA | - | Shielded | 90Ohm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.300" Dia x 0.725" L (7.62mm x 18.41mm) | - |
|
CTM2F-101J100UH AXIAL MOLDED INDUCTOR |
4,372 | - |
|
Datasheet | CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±5% | 151 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
CTTF0402F-27NGFIXED IND 27NH2% SMD |
2,925 | - |
|
Datasheet | CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 27 nH | ±2% | 75 mA | - | Unshielded | 2.5Ohm Max | 13 @ 500MHz | 3.25GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
SQ4120-1R5MHF1.5UH, 0.95MOHM, 8.0A MAX. FLAT |
4,511 | - |
|
Datasheet | SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 23 A | 8A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
SQAC0807-17NJ-RC17nH 5% Square Air Coil |
4,781 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | Air | 17 nH | ±5% | 2.7 A | - | Unshielded | 9mOhm Max | 100 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.090" L x 0.072" W (2.29mm x 1.83mm) | 0.070" (1.78mm) |
|
AC30-101J-RC100UH 5% AXIAL INDUCTOR |
1,373 | - |
|
Datasheet | AC30 | Axial | Box | Active | - | - | 100 µH | ±5% | 275 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 4.8MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (3.99mm x 10.01mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
