Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

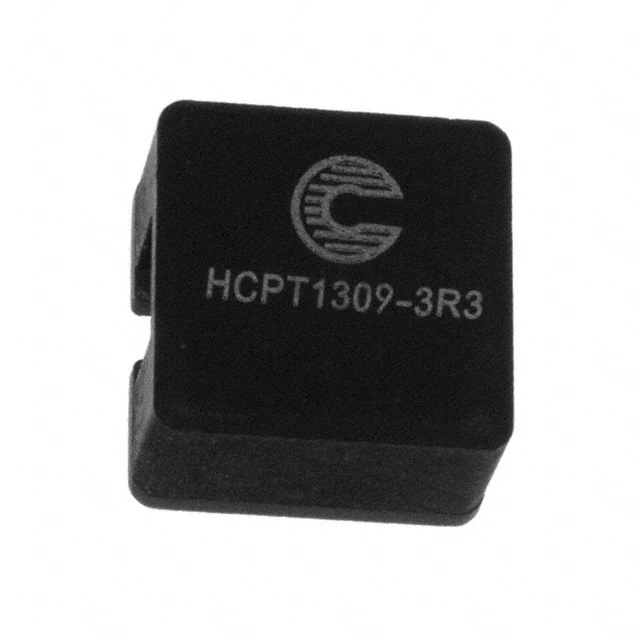

HCPT1309-3R3-RFIXED IND 3.31UH 11.4A 4.8 MOHM |
4,101 | - |
|
Datasheet | HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 3.31 µH | ±20% | 11.4 A | 21A | Unshielded | 4.8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|

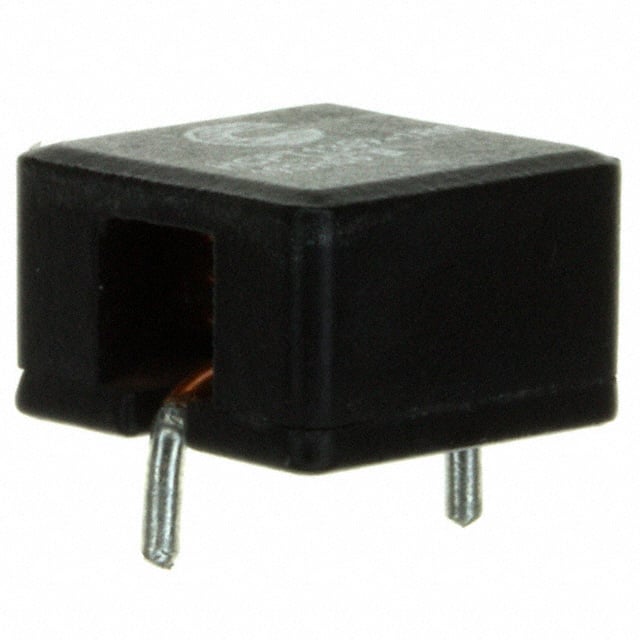

HCPT1309-1R0-RFIXED IND 960NH 19.4A 1.9MOHM TH |
3,528 | - |
|
Datasheet | HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 960 nH | ±20% | 19.4 A | 40A | Unshielded | 1.9mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.539" L x 0.472" W (13.70mm x 12.00mm) | 0.354" (9.00mm) |
|
CTX10-2-52M-RFIXED IND 10UH 4.7A 18.3 MOHM TH |
4,339 | - |
|
Datasheet | CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.535" L x 0.449" W (13.60mm x 11.40mm) | 0.461" (11.70mm) |
|

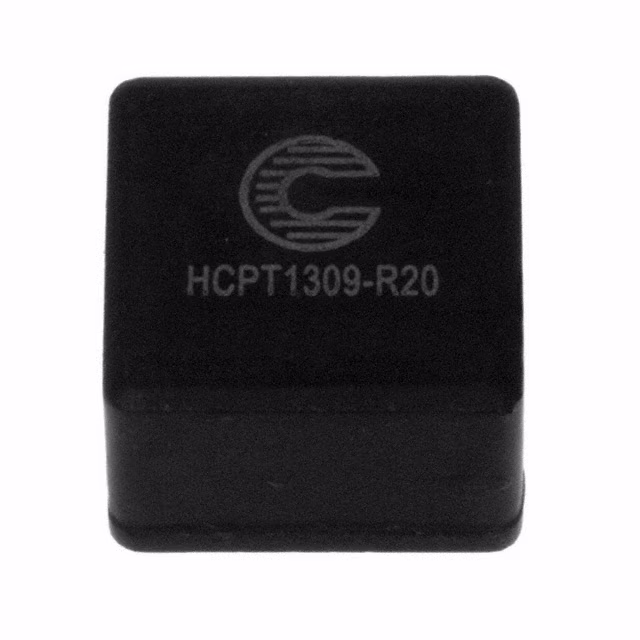

HCPT1309-R20-RFIXED IND 200NH 43.1A 0.426 MOHM |
4,538 | - |
|
Datasheet | HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 43.1 A | 90A | Unshielded | 0.426mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
|
HCPT1309-R47-RFIXED IND 490NH 34A 0.624MOHM TH |
2,165 | - |
|
Datasheet | HCPT1309 | Radial, Horizontal | Bulk | Active | Drum Core, Wirewound | Iron Powder | 490 nH | ±20% | 34 A | 55A | Unshielded | 0.624mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
|
CTX20-5-52LP-RFIXED IND 20UH 7.8A 26 MOHM TH |
4,244 | - |
|
Datasheet | CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.965" Dia (24.50mm) | 0.654" (16.60mm) |
|
CTX150-1-52M-RFIXED IND 150UH 2.1A 162 MOHM TH |
3,182 | - |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.1 A | 2.3A | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.953" (24.20mm) |
|
|
CTX150-2-52-RFIXED IND 150UH 4.3A 71.9MOHM TH |
1,703 | - |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.205" Dia x 0.441" W (30.60mm x 11.20mm) | - |
|
|
CTX500-1-52-RFIXED IND 500UH 1.7A 361 MOHM TH |
3,714 | - |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia x 0.602" W (24.00mm x 15.30mm) | - |
|
CTX10-5-52M-RFIXED IND 10UH 8.7A 10.4 MOHM TH |
1,279 | - |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.894" (22.70mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
