Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP4-470-RFIXED IND 47UH 590MA 908MOHM SMD |
3,439 | - |
|
Datasheet | THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 47 µH | ±20% | 590 mA | 720mA | Unshielded | 908mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.480" L x 0.370" W (12.20mm x 9.40mm) | 0.118" (3.00mm) |
|
|
FP1012V3-R090-RIND FP1012V3-R090-R FLAT-PAC |
1,622 | - |
|
Datasheet | FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 84 A | 150A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
LDS0705-4R7M-RFIXED IND 4.7UH 3.32A 21MOHM SMD |
1,202 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.32 A | 3.53A | Shielded | 21mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-100M-RFIXED IND 10UH 2.54A 36 MOHM SMD |
2,610 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.54 A | 2.61A | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-150M-RFIXED IND 15UH 2.04A 56 MOHM SMD |
4,447 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.04 A | 2.07A | Shielded | 56mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

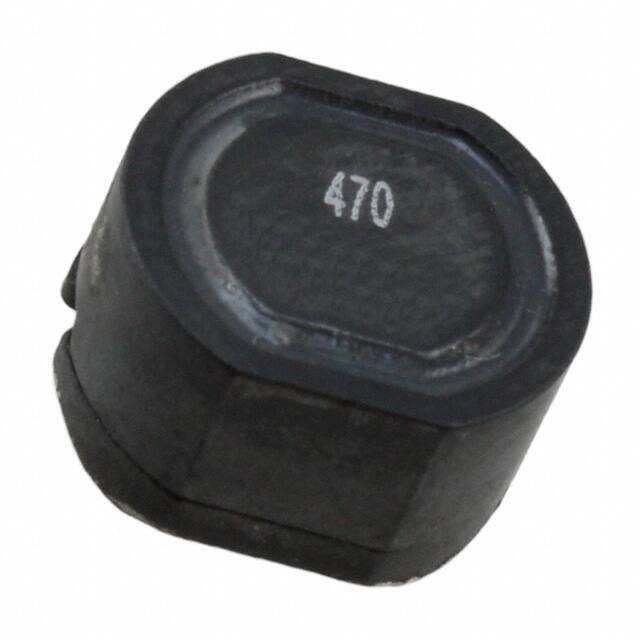

LDS0705-470M-RFIXED IND 47UH 1.21A 158MOHM SMD |
1,403 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.21 A | 1.18A | Shielded | 158mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

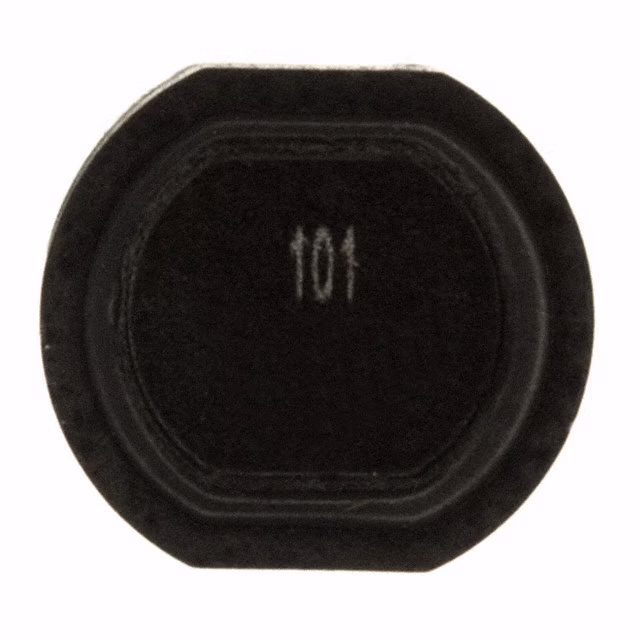

LDS0705-101M-RFIXED IND 100UH 808MA 357MOHM SM |
4,674 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 808 mA | 800mA | Shielded | 357mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-151M-RFIXED IND 150UH 649MA 554MOHM SM |
2,164 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 649 mA | 645mA | Shielded | 554mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-221M-RFIXED IND 220UH 584MA 680MOHM SM |
3,796 | - |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 584 mA | 541mA | Shielded | 680mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
MPI4040R1-1R0-RFIXED IND 1UH 3.7A 40 MOHM SMD |
1,759 | - |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 3.7 A | 7.7A | Shielded | 40mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
