Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI2510V2-3R3-RFIXED IND 3.3UH 1.6A 170MOHM SMD |
14,833 | - |
|
Datasheet | MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.6 A | 2.1A | Shielded | 170mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|

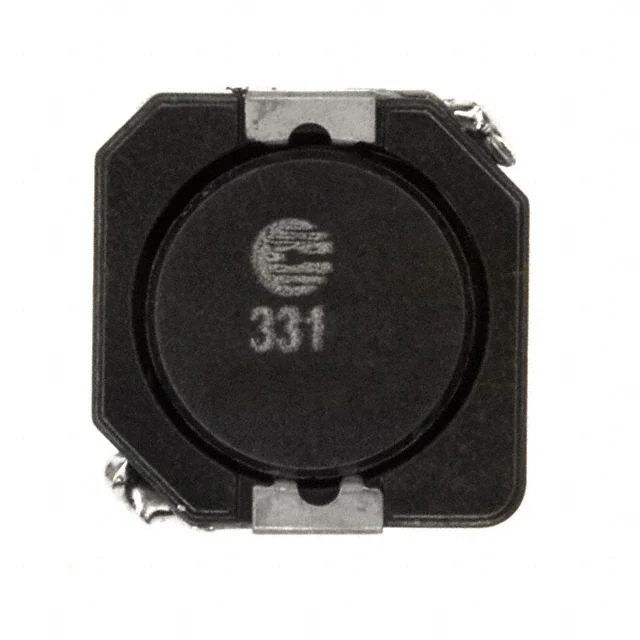

DR1050-331-RFIXED IND 330UH 830MA 693MOHM SM |
6,047 | - |
|
Datasheet | DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 830 mA | 800mA | Shielded | 693mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

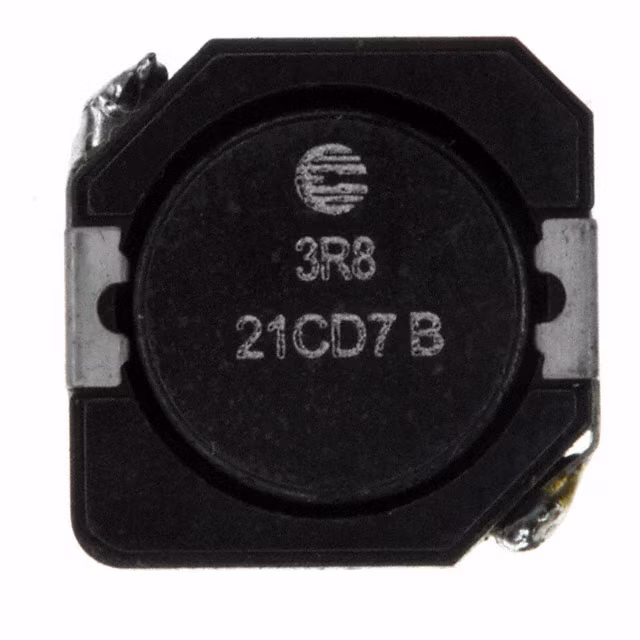

DR1040-3R8-RFIXED IND 3.8UH 5.5A 13 MOHM SMD |
1,227 | - |
|
Datasheet | DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 5.5 A | 6.4A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
HCMA0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
1,403 | - |
|
Datasheet | HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
HCM0503-4R7-RFIXED IND 4.7UH 4.5A 60 MOHM SMD |
4,174 | - |
|
Datasheet | HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 4.5 A | 5.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

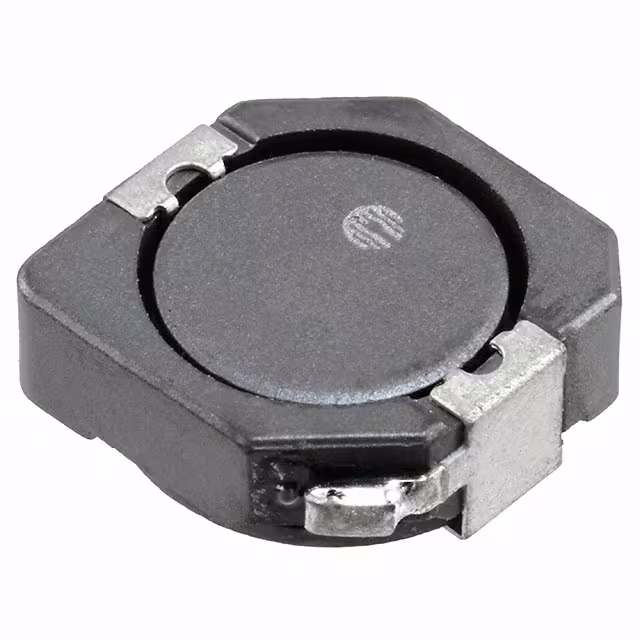

DR1040-101-RFIXED IND 100UH 1.25A 304MOHM SM |
3,252 | - |
|
Datasheet | DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM0503-R20-RFIXED IND 200NH 22.2A 2.31 MOHM |
2,673 | - |
|
Datasheet | HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 22.2 A | 21A | Shielded | 2.31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCM0503-R35-RFIXED IND 350NH 16.6A 4.29 MOHM |
3,263 | - |
|
Datasheet | HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 350 nH | ±20% | 16.6 A | 14.9A | Shielded | 4.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
HCMA0503-5R6-RFIXED IND 5.6UH 4.3A 70.6MOHM SM |
5,497 | - |
|
Datasheet | HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 4.3 A | 3.5A | Shielded | 70.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCMA0503-1R5-RFIXED IND 1.5UH 7.5A 18.5MOHM SM |
3,868 | - |
|
Datasheet | HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 7.5 A | 7A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
