Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX06-14621FIXED IND 33UH 7.7A 14.1MOHM SMD |
3,139 | - |
|
Datasheet | CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±0.25% | 7.7 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|
|
CTX06-14622FIXED IND 22UH 8.5A 11.7MOHM SMD |
1,938 | - |
|
Datasheet | CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±0.25% | 8.5 A | - | Unshielded | 11.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | 0.484" (12.30mm) |
|

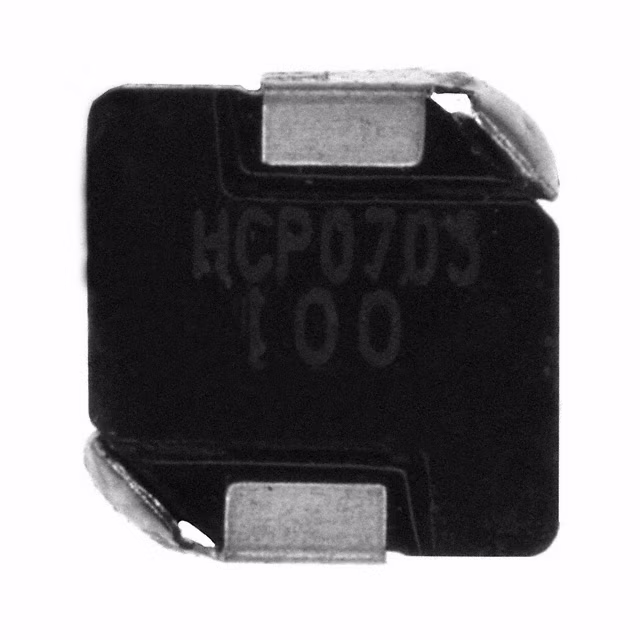

HCP0703-100-RFIXED IND 10UH 3A 105 MOHM SMD |
1,925 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

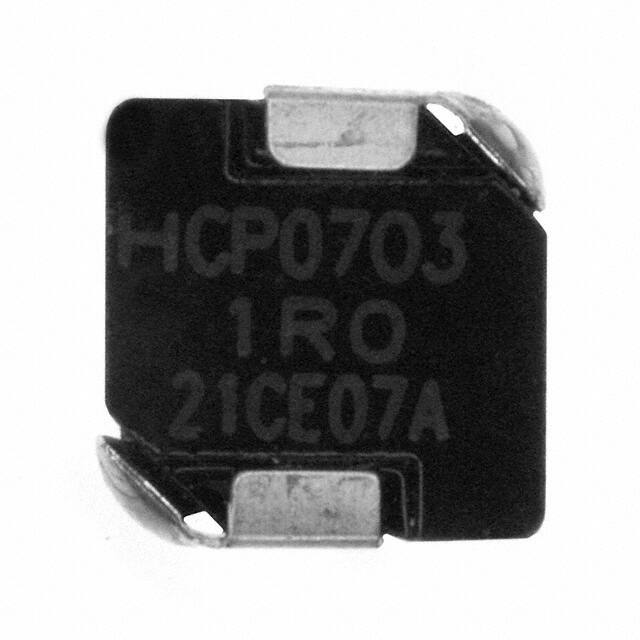

HCP0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
4,968 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

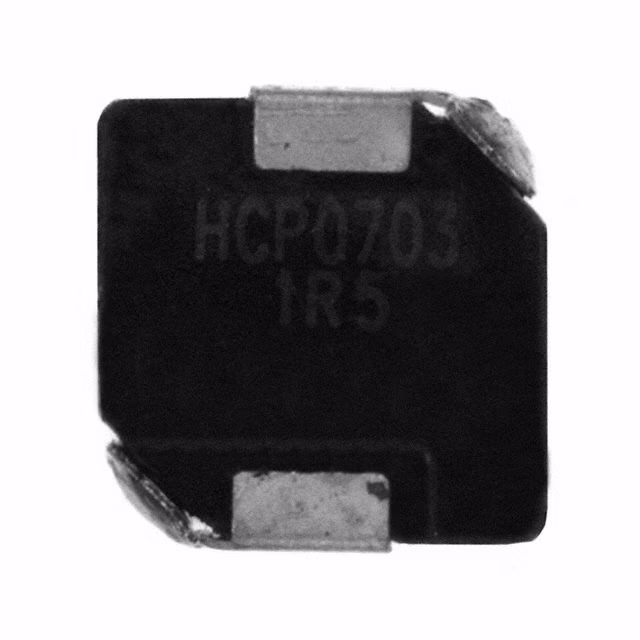

HCP0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD |
2,064 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

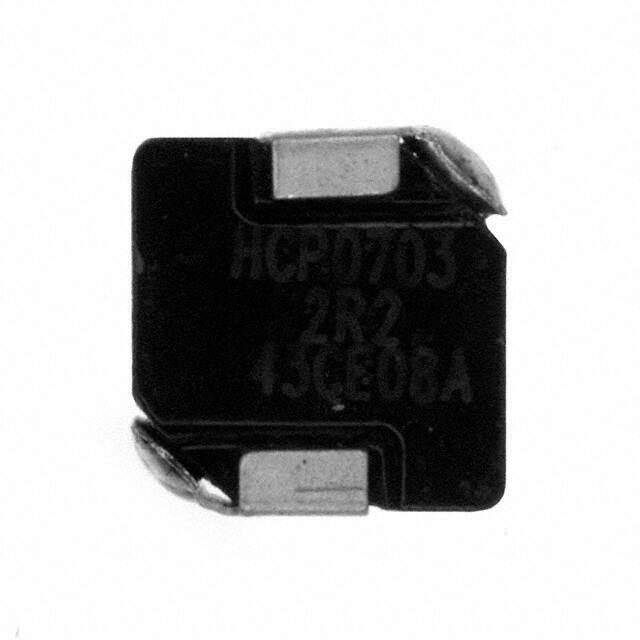

HCP0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
2,417 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

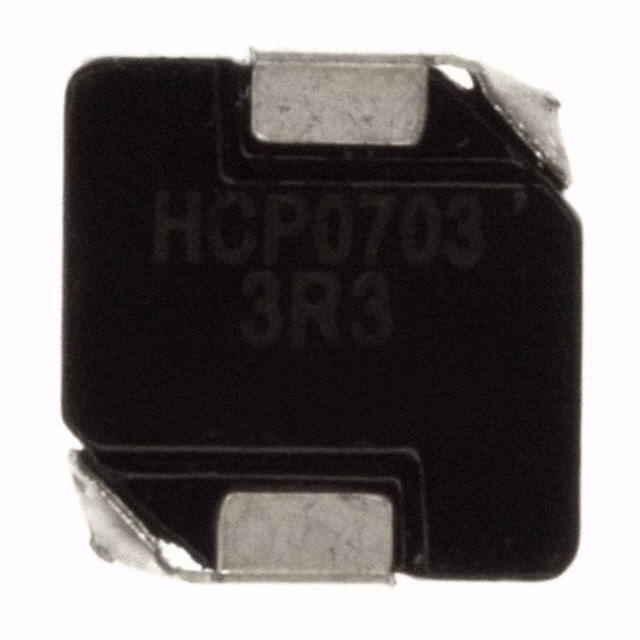

HCP0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
4,892 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

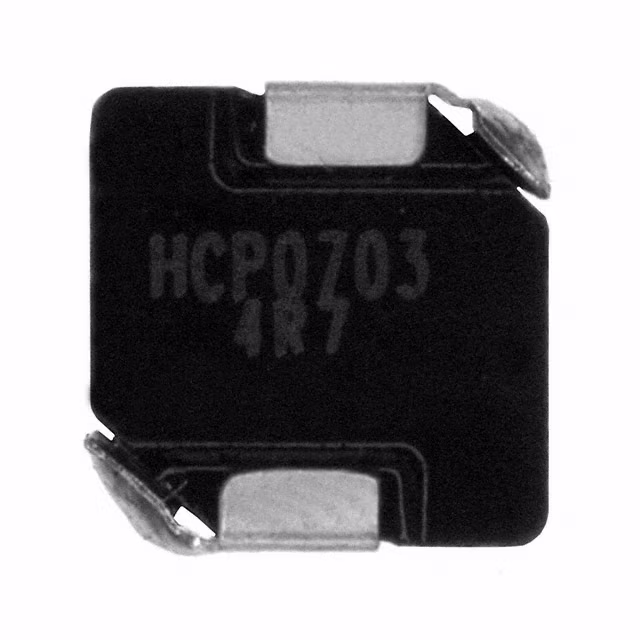

HCP0703-4R7-RFIXED IND 4.7UH 5.5A 40 MOHM SMD |
4,211 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

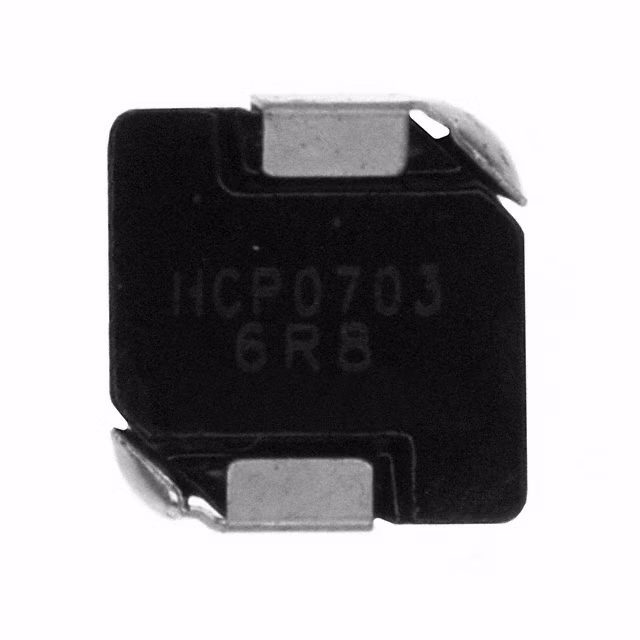

HCP0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD |
1,379 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

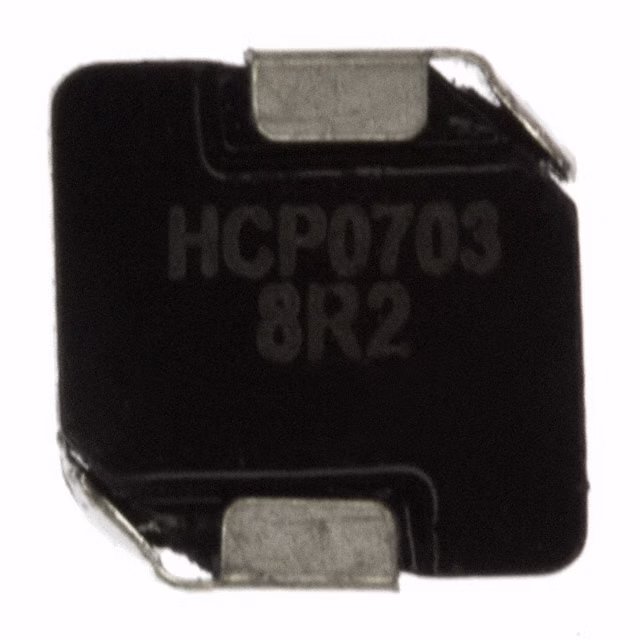

HCP0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD |
1,262 | - |
|
Datasheet | HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
