Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3110-4R7-RFIXED IND 4.7UH 590MA 285MOHM SM |
4,006 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 590 mA | 680mA | Shielded | 285mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-6R8-RFIXED IND 6.8UH 540MA 346MOHM SM |
3,040 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 540 mA | 580mA | Shielded | 346mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-R82-RFIXED IND 820NH 1.3A 58.9MOHM SM |
2,185 | - |
|
Datasheet | SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 1.3 A | 1.67A | Shielded | 58.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|

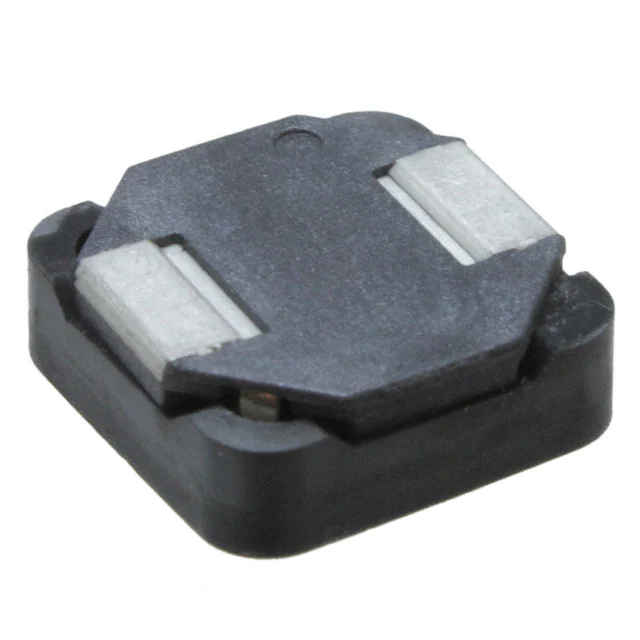

DRA124-R47-RFIXED IND 470NH 15.15A 1.9 MOHM |
2,171 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15.15 A | 30.8A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

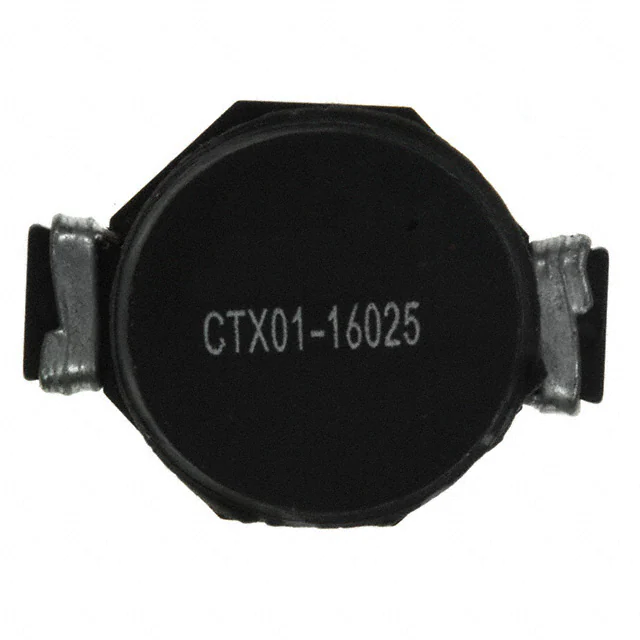

CTX01-16025FIXED IND 120UH 2A 62 MOHM SMD |
2,707 | - |
|
Datasheet | CTX | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 120 µH | ±25% | 2 A | 1.7A | Unshielded | 62mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.506" W (17.70mm x 12.85mm) | 0.297" (7.55mm) |
|
CTX02-12236FIXED IND 500UH 2.6A 200 MOHM TH |
3,882 | - |
|
Datasheet | PFC | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | - | 2.6 A | - | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.224" Dia (31.08mm) | 0.750" (19.05mm) |
|

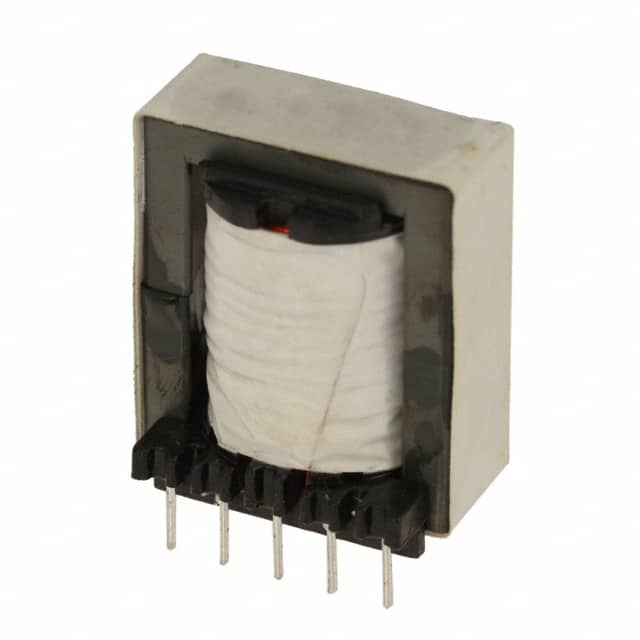

CTX16-15954FIXED IND 1MH 3.1A 212 MOHM TH |
2,166 | - |
|
Datasheet | PFC | Radial, Vertical, 10 Leads | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 3.1 A | - | Unshielded | 212mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" L x 0.945" W (30.00mm x 24.00mm) | 1.417" (36.00mm) |
|
MPI4040R1-R10-RFIXED IND 90NH 8A 8.5 MOHM SMD |
1,224 | - |
|
Datasheet | MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 90 nH | ±20% | 8 A | 32A | Shielded | 8.5mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
.jpg "MPI2520R0-2R2-R")
|
MPI2520R0-2R2-RFIXED IND 2.2UH 2.2A 124MOHM SMD |
2,247 | - |
|
Datasheet | MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 2.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MPI2520R1-5R6-RFIXED IND 5.6UH 1.5A 240MOHM SMD |
2,060 | - |
|
Datasheet | MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 5.6 µH | ±20% | 1.5 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
