Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1104V2-1R0-RFIXED IND 1UH 19A 3.1 MOHM SMD |
751 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 19 A | 25A | Shielded | 3.1mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
MPI4015V2-2R2-RFIXED IND 2.2UH 2.9A 78 MOHM SMD |
3,273 | - |
|
Datasheet | MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 2.9 A | 4.5A | Shielded | 78mOhm Max | - | 42MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|

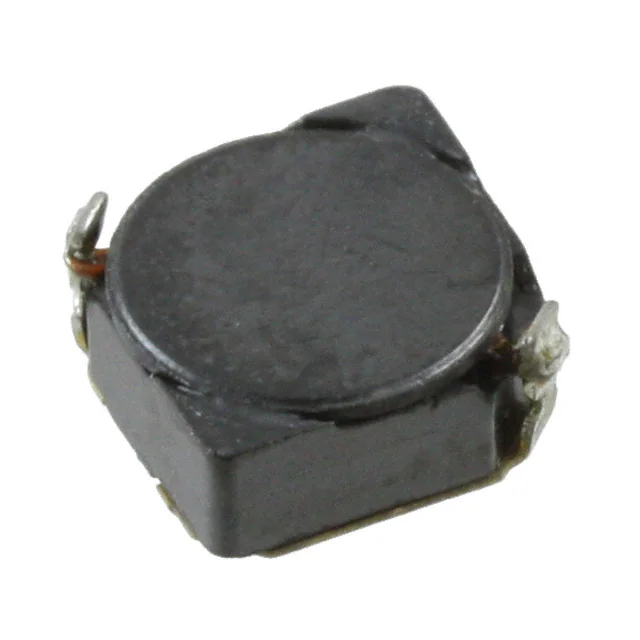

SD7030-100-RFIXED IND 10UH 2.1A 65 MOHM SMD |
3,012 | - |
|
Datasheet | SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.1 A | 1.7A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
DRA73-101-RFIXED IND 100UH 682MA 609MOHM SM |
2,196 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 682 mA | 763mA | Shielded | 609mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
HCM1103-4R7-RFIXED IND 4.7UH 7A 22.5 MOHM SMD |
10,315 | - |
|
Datasheet | HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 7 A | 13A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
|
MPIA4015V2-1R5-RFIXED IND 1.5UH 4.2A 58 MOHM SMD |
8,700 | - |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 4.2 A | 4.6A | Shielded | 58mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
UP1B-330-RFIXED IND 33UH 820MA 367MOHM SMD |
3,394 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 820 mA | 990mA | Unshielded | 367mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
MPI4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD |
2,120 | - |
|
Datasheet | MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
FP1308R3-R32-RFIXED IND 320NH 68A 0.18MOHM SMD |
8,970 | - |
|
Datasheet | FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±10% | 68 A | 52A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
DRA74-680-RFIXED IND 68UH 996MA 286MOHM SMD |
1,520 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 996 mA | 1.108A | Shielded | 286mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
