Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR73-681-RFIXED IND 680UH 290MA 3.47OHM SM |
2,257 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 290 mA | 310mA | Shielded | 3.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

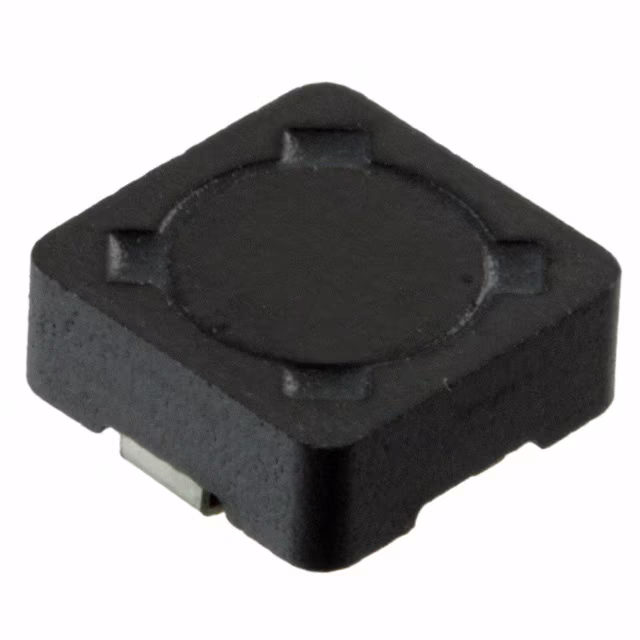

DR73-820-RFIXED IND 82UH 860MA 384MOHM SMD |
2,147 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 860 mA | 890mA | Shielded | 384mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
EXLA1V0503-R56-RIND MOLDED SHLD 0.56UH 14.6A |
2,385 | - |
|
Datasheet | EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 21 A | 9A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|

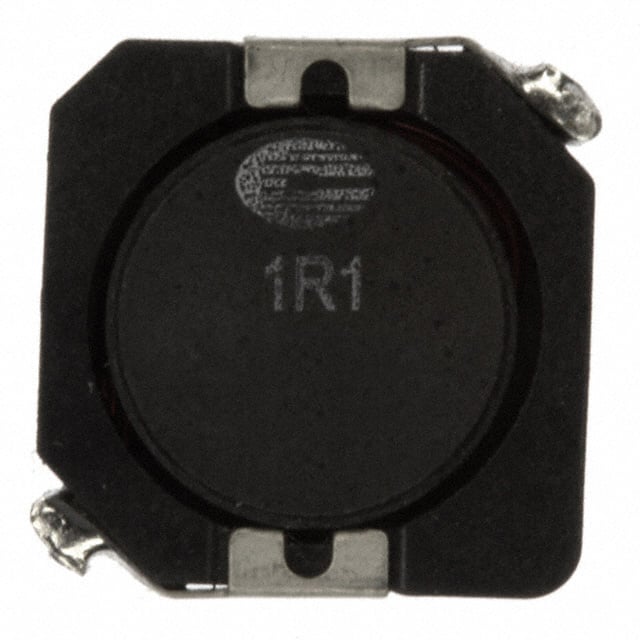

DR1030-1R1-RFIXED IND 1.1UH 7A 7.9 MOHM SMD |
2,704 | - |
|
Datasheet | DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±30% | 7 A | 9.5A | Shielded | 7.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|

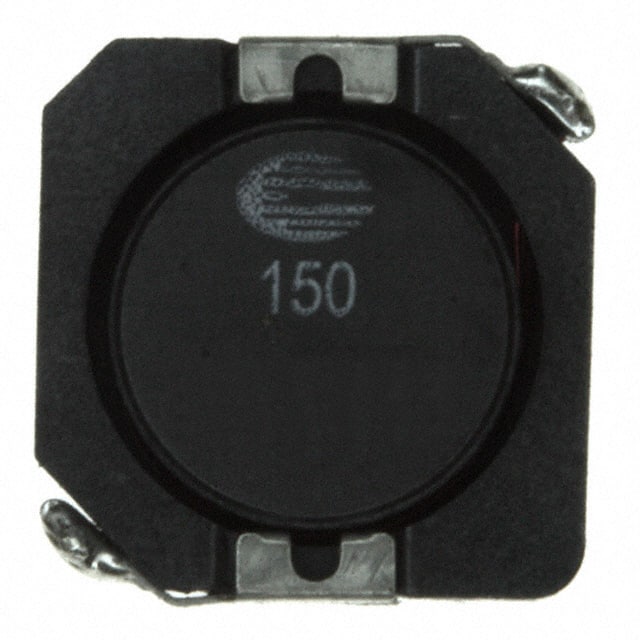

DR1030-150-RFIXED IND 15UH 2.3A 68.8MOHM SMD |
1,034 | - |
|
Datasheet | DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.3 A | 2.66A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|

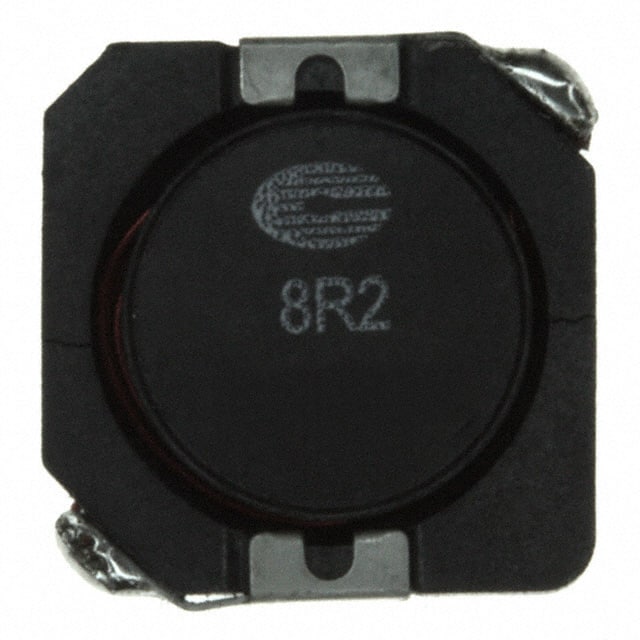

DR1030-8R2-RFIXED IND 8.2UH 3.3A 34.1MOHM SM |
2,197 | - |
|
Datasheet | DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.3 A | 3.54A | Shielded | 34.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
EXL1V0605-1R0-RFIXED IND 1UH 20A 4.52 MOHM SMD |
3,197 | - |
|
Datasheet | EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 20 A | 18A | Shielded | 4.52mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
MPI4012V2-R33-RFIXED IND 330NH 7.5A 13.5MOHM SM |
2,897 | - |
|
Datasheet | MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 7.5 A | 11A | Shielded | 13.5mOhm Max | - | 128MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
HCM1A0703-6R8-RFIXED IND 6.8UH 3.5A 60MOHM SMD |
2,115 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 6.4A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R22-RFIXED IND 220NH 17A 2.7MOHM SMD |
1,595 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 17 A | 24A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
