Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

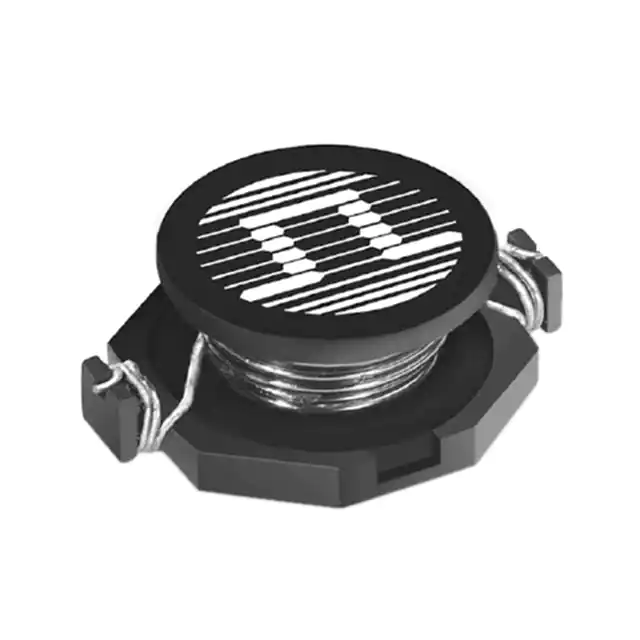

P0751.332NLFIXED IND 3.3UH 5.4A 18 MOHM SMD |
3,140 | - |
|
Datasheet | P0751NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 5.4 A | 6.4A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.103NLFIXED IND 10UH 3.8A 50 MOHM SMD |
3,110 | - |
|
Datasheet | P0751NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.683NLFIXED IND 68UH 1.4A 240 MOHM SMD |
1,225 | - |
|
Datasheet | P0751NL | Nonstandard | Tray | Active | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
IHLP1212AEERR68M11FIXED IND 680NH 5.4A 22 MOHM SMD |
11,970 | - |
|
Datasheet | IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
L06035R6CGWTRFIXED IND 5.6NH 300MA 250MOHM SM |
7,211 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 5.6 nH | ±0.2nH | 300 mA | - | Unshielded | 250mOhm Max | 26 @ 450MHz | 5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
B82498F3331G001FIXED IND 330NH 220MA 1.5OHM SMD |
6,629 | - |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 45 @ 250MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
SDR0703-4R7MLFIXED IND 4.7UH 1.5A 100MOHM SMD |
6,188 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 2.1A | Unshielded | 100mOhm Max | 20 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
DFE2HCAHR33MJ0LFIXED IND 330NH 4.9A 21 MOHM SMD |
5,844 | - |
|
Datasheet | DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 4.9 A | 5.8A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SLF6045T-3R3N2R8-3PFFIXED IND 3.3UH 3.4A 27.95 MOHM |
3,553 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 2.8A | Shielded | 27.95mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.189" (4.80mm) |
|
|
SDR0703-391KLFIXED IND 390UH 140MA 6.2OHM SMD |
1,835 | - |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 140 mA | 180mA | Unshielded | 6.2Ohm Max | 36 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
744764015FIXED IND 1.5UH 370MA 850MOHM SM |
1,640 | - |
|
Datasheet | WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 370 mA | - | Unshielded | 850mOhm Max | 30 @ 7.96MHz | 250MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
B82144B2562K000FIXED IND 5.6UH 2.95A 90 MOHM TH |
1,584 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 2.95 A | 3.75A | Unshielded | 90mOhm Max | 50 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
DFE2HCAHR68MJ0LFIXED IND 680NH 3.6A 31 MOHM SMD |
1,541 | - |
|
Datasheet | DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.6 A | 4.4A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SBCP-47HY820BFIXED IND 82UH 530MA 519 MOHM TH |
5,536 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 530 mA | 550mA | Unshielded | 519mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
744917182FIXED IND 82NH 510MA 460MOHM SMD |
5,284 | - |
|
Datasheet | WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 510 mA | - | Unshielded | 460mOhm Max | 35 @ 250MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917220FIXED IND 200NH 280MA 2 OHM SMD |
2,885 | - |
|
Datasheet | WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 200 nH | ±2% | 280 mA | - | Unshielded | 2Ohm Max | 38 @ 250MHz | 1.25GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
VLS5030EX-150M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,945 | - |
|
Datasheet | VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 1.6A | Shielded | 144mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
VLS5030EX-470M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,844 | - |
|
Datasheet | VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 990mA | Shielded | 420mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
MWSA0518S-2R2MTFIXED IND 2.2UH 5A 35 MOHM SMD |
1,841 | - |
|
Datasheet | MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 5 A | 6A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
VLS5030EX-151M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,816 | - |
|
Datasheet | VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 630 mA | 540mA | Shielded | 1.392Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
