Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82141A1682K000FIXED IND 6.8UH 480MA 430MOHM TH |
4,655 | - |
|
Datasheet | SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 480 mA | - | Unshielded | 430mOhm Max | 50 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82432T1684K000FIXED IND 680UH 80MA 23 OHM SMD |
3,198 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 80 mA | - | Unshielded | 23Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82442T1333K000FIXED IND 33UH 840MA 360MOHM SMD |
1,953 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 840 mA | 1.7A | Unshielded | 360mOhm Max | 15 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82559A5332A020FIXED IND 3.3UH 1.5 MOHM SMD |
4,963 | - |
|
Datasheet | ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | - | 34A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|
B82559B3222A027FIXED IND 2.2UH 46.5A 0.68 MOHM |
2,024 | - |
|
Datasheet | ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 46.5 A | 68A | Shielded | 0.68mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.545" (13.85mm) |
|
|
B82559B7103A027FIXED IND 10UH 33A 1.92 MOHM SMD |
1,204 | - |
|
Datasheet | ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 33 A | 34.8A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
|
B82559B7153A027FIXED IND 15UH 33A 1.92 MOHM SMD |
3,339 | - |
|
Datasheet | ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 33 A | 22.9A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
B82472G4332M000FIXED IND 3.3UH 2.6A 35 MOHM SMD |
3,483 | - |
|
Datasheet | B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.6 A | 1.9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
B82479A1683M000FIXED IND 68UH 2.3A 130 MOHM SMD |
1,765 | - |
|
Datasheet | B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

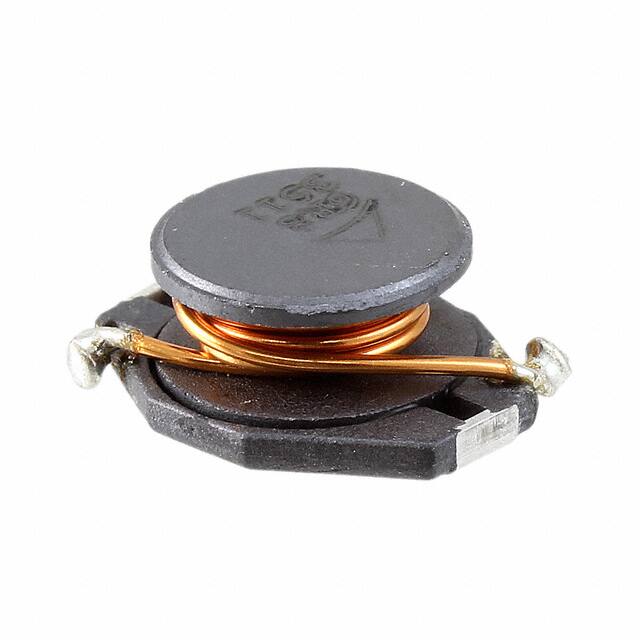

B82476B1682M100FIXED IND 6.8UH 4.8A 21 MOHM SMD |
1,844 | - |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.8 A | 4.6A | Unshielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
