Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1272K000FIXED IND 2.7UH 2.53A 42MOHM SMD |
2,737 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 2.53 A | 5.5A | Unshielded | 42mOhm Max | 15 @ 7.96MHz | 36MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82472G4824M000SMT-INDUCTOR 7.3X7.3 820 UH 0.20 |
2,870 | - |
|
Datasheet | B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 µH | ±20% | 500 mA | 170mA | Shielded | 3.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472G4334M000SMT-INDUCTOR 7X 7 330 UH 0,26 |
3,408 | - |
|
Datasheet | B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 290 mA | 260mA | Shielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

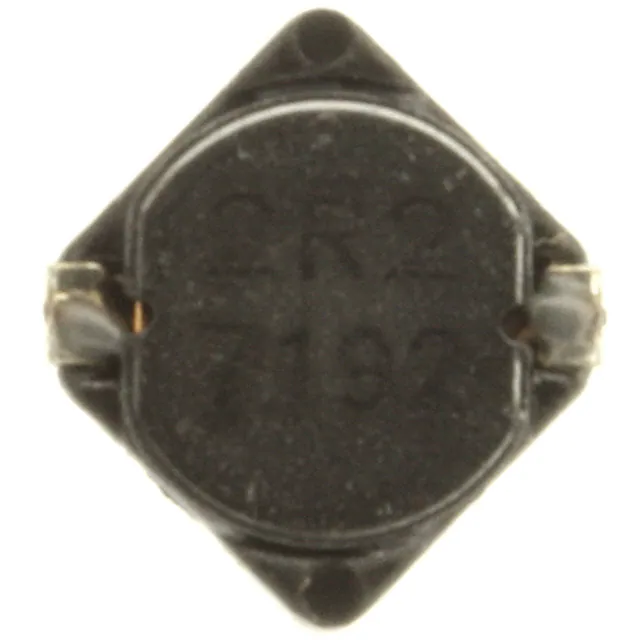

B82470A1222MFIXED IND 2.2UH 1.35A 90MOHM SMD |
3,236 | - |
|
Datasheet | B82470-A1-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.35 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.047" (1.20mm) |
|
B82498F3279MFIXED IND 2.7NH 1A 30 MOHM SMD |
4,348 | - |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 nH | ±20% | 1 A | - | Unshielded | 30mOhm Max | 50 @ 1.5GHz | 9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3569MFIXED IND 5.6NH 900MA 40MOHM SMD |
1,297 | - |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 5.6 nH | ±20% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3829MFIXED IND 8.2NH 700MA 90MOHM SMD |
4,440 | - |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 nH | ±20% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 1GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82473A1103K000FIXED IND 10UH 2.3A 70 MOHM SMD |
1,392 | - |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 2.5A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473A1153K000FIXED IND 15UH 1.8A 90 MOHM SMD |
3,703 | - |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.8 A | 2A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473A1154K000FIXED IND 150UH 580MA 640MOHM SM |
1,338 | - |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 580 mA | 650mA | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
