Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108T1123K009FIXED IND 12UH 190MA 2.4 OHM TH |
4,371 | - |
|
Datasheet | MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1123K000FIXED IND 12UH 190MA 2.4 OHM TH |
2,038 | - |
|
Datasheet | MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B82442A1102K000FIXED IND 1UH 1.8A 24 MOHM SMD |
3,274 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.8 A | - | Unshielded | 24mOhm Max | 10 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442A1103K000FIXED IND 10UH 690MA 168MOHM SMD |
1,554 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 690 mA | - | Unshielded | 168mOhm Max | 10 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

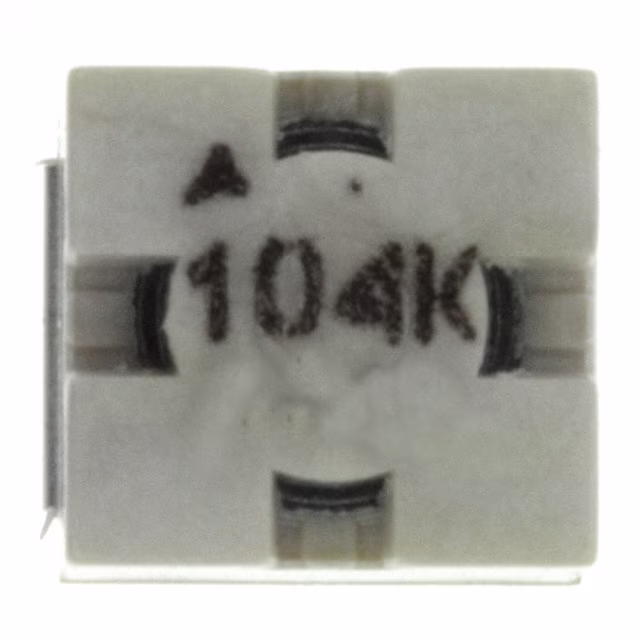

B82442A1104K000FIXED IND 100UH 250MA 1.28OHM SM |
4,949 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 250 mA | - | Unshielded | 1.28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
.JPG "B82442A1105K000")
|
B82442A1105K000FIXED IND 1MH 85MA 12 OHM SMD |
3,082 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 85 mA | - | Unshielded | 12Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1106K000FIXED IND 10MH 25MA 120 OHM SMD |
3,566 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 25 mA | - | Unshielded | 120Ohm Max | 30 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 125°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

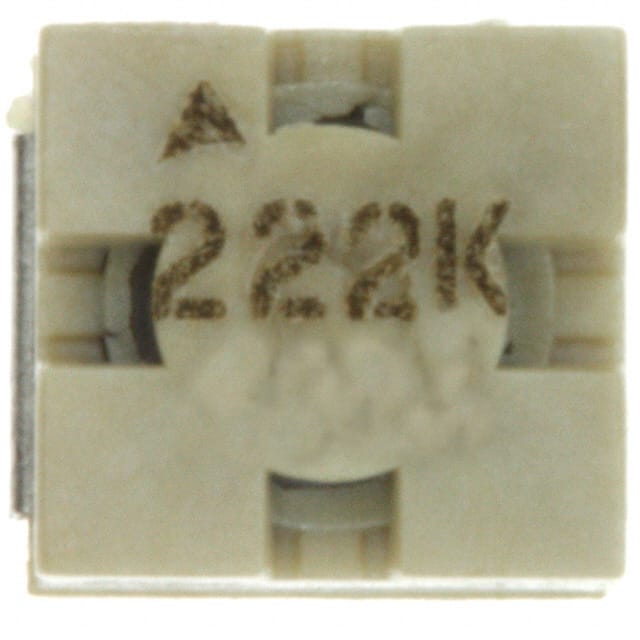

B82442A1222K000FIXED IND 2.2UH 1.3A 48 MOHM SMD |
3,584 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1.3 A | - | Unshielded | 48mOhm Max | 10 @ 7.96MHz | 42MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1223K000FIXED IND 22UH 480MA 350MOHM SMD |
2,223 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 480 mA | - | Unshielded | 350mOhm Max | 10 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1224K000FIXED IND 220UH 170MA 2.72OHM SM |
3,365 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 170 mA | - | Unshielded | 2.72Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
